The solar galvanized bracket has few components, simple structure and low price. The surface is galvanized, making the entire bracket difficult to rust

Technical Parameters

Galvanized solar mounting brackets

Feature:

1. The surface of galvanized bracket is treated with hot galvanizing, which is not easy to rust.

2. The galvanized bracket is cheaper overall.

3. The galvanized bracket, beam, the longitudinal beam and the support rod are all steel with U-shaped channel, which is with few components and simple structure.

4. N-type brackets are often used for vertical row 2 rows

Advantage

High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);

Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);

Max wind speed :up to 60m/s;

Material:Al 6005-T5;

Anti-corrosive:anodized;

Warranty:12 years;

Duration:25 years.

Component photos of galvanized solar mounting brackets

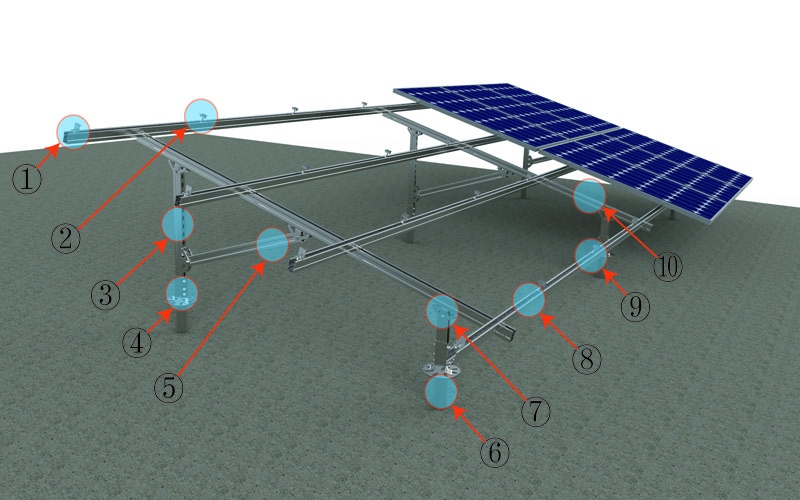

  1. Galvanized end clamp       2. Galvanized inter clamp     3. Galvanized front and back legs      4.  Galvanized base

5. Galvanized diagonal support       6.  Ground screw                7. Galvanized connector            8. Galvanized U beam

                                                                                                           with single head

9. Galvanized beam connector    10. Galvanized u stringer


Installation steps of galvanized solar mounting brackets

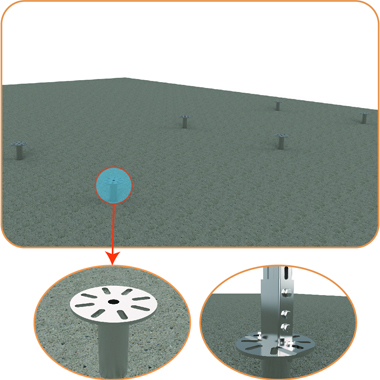

Step1：Install ground screw according to                Step2： Install the pre-assembled support beam
               distance marked in drawing                                          on the ground screw

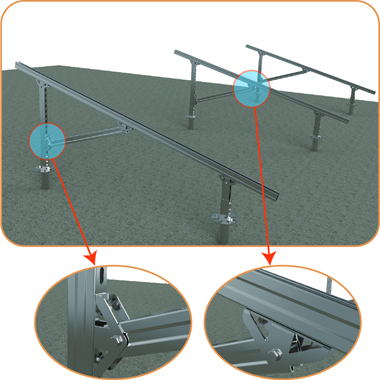

         Install ground screw         Galvanized base                                     Galvanized connector

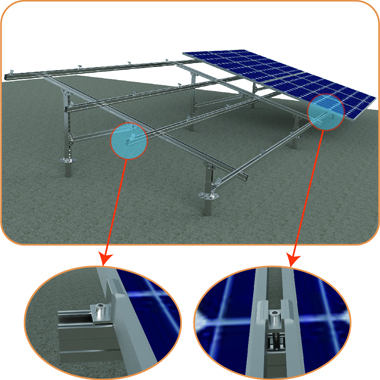

Step3：Install rails and rail splices                         Step4： Fasten panel by inter clamps and end clamps

                           Galvanized beam connector                          End clamp                  Inter clamp

Component photos

Installation steps,only 4 steps:

1.install base&ground screw;

2.install support beam⋚

3.install rail;

4.install legs.
