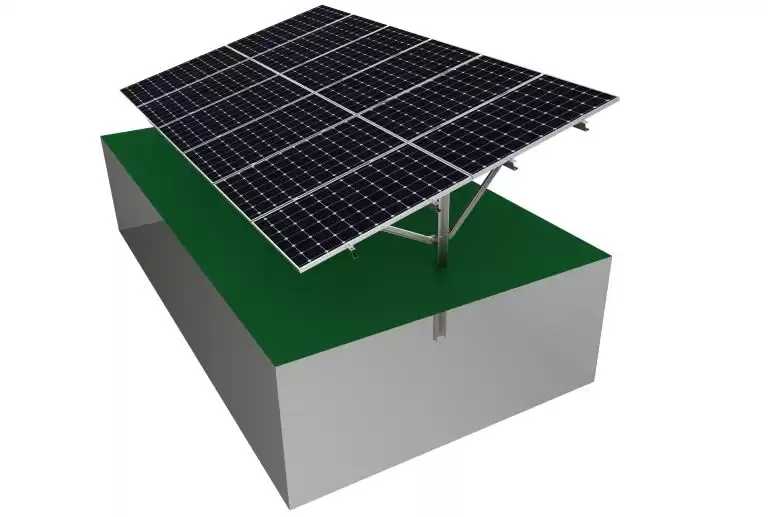

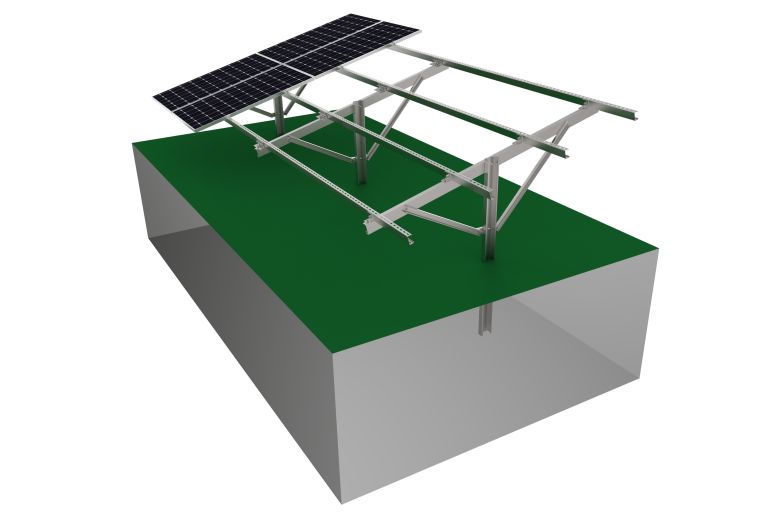

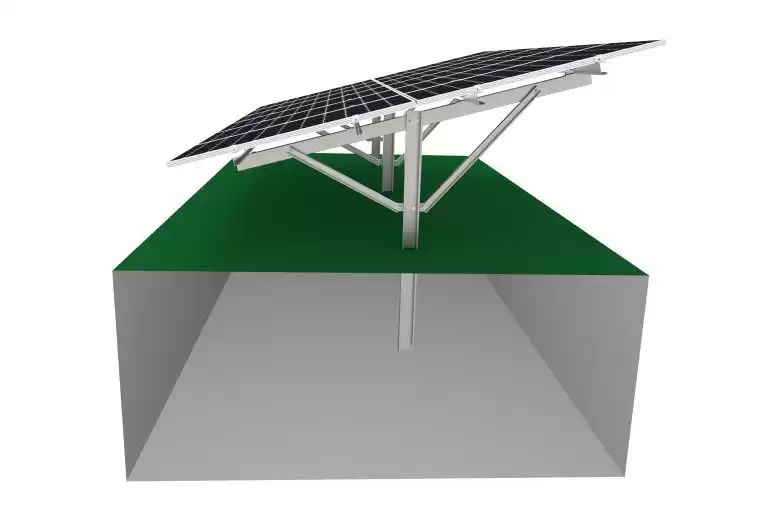

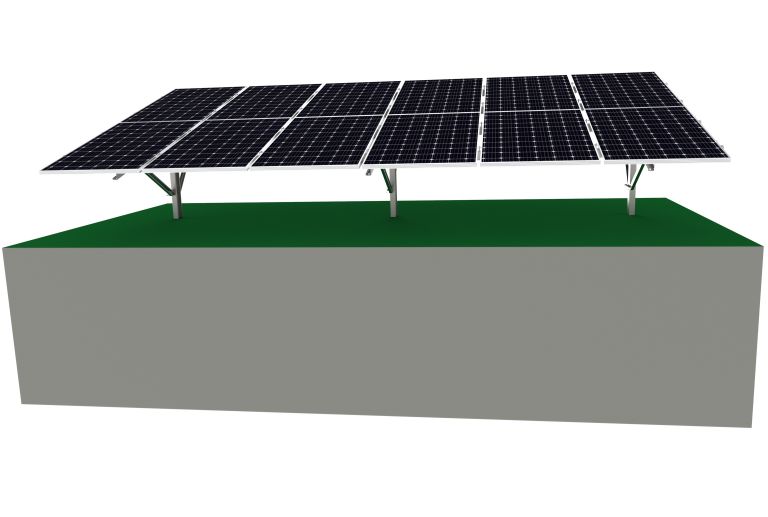

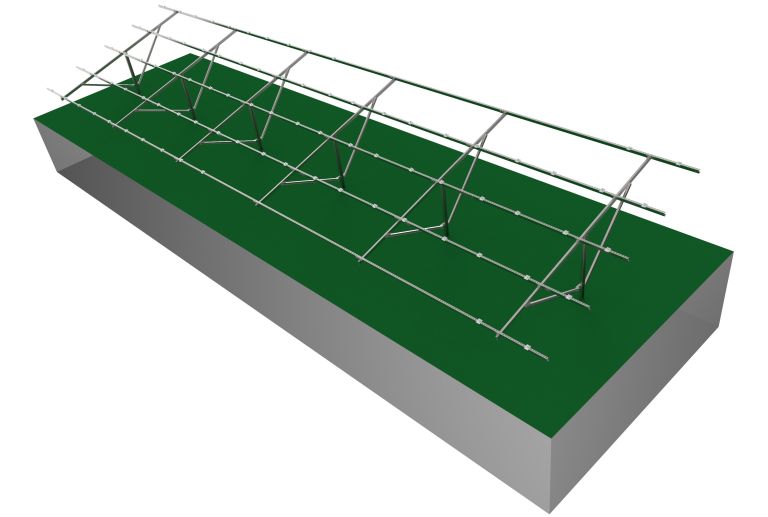

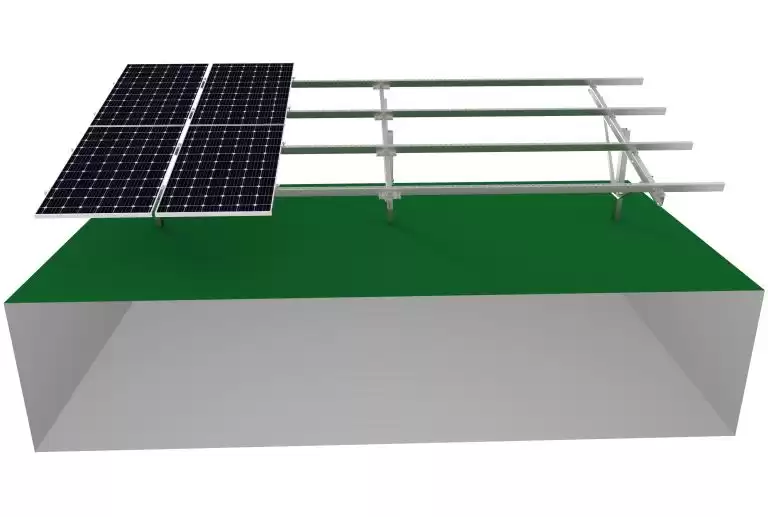

Galvanized Steel Pile Ground Mounting system is a very economical solution for large commerical and unility scale installations. it suitable for both framed and frameless modules.,especially on uneven terrain. The use of ramming posts eliminates the need for additional excavation works,and pile-driven machine reduce lobor and time remarkably on site. Single post system allow for easy maintenance around and under the modules. Double post optional for large span and bigger array.
Galvanized Steel mounting structure Technical Information
|
Installation Site:
|
Open large ground station
|
|
System type:
|
Ground Solar Mounting System
|
|
Material:
|
AL-6005-T5/HDG Steel
|
|
PV Modules:
|
Framed, Frameless
|
|
Module Orientation:
|
Portrait or Landscape
|
|
Module Layout:
|
As Designed
|
|
Angel:
|
Fixed,can be customized designed
|
|
Wind load:
|
60m/s
|
|
Snow load:
|
1.4KN/m2
|
|
Anodized Thickness:
|
15um or customized
|
|
10 years warranty,25 years lifetime
|
Steel pile solar mount bracket Advantages
☆Easy Installation
Prefab and planning before delivery in the factory saving on site installation time .
☆Convenient Transportation
Convenient installation,short construction period, parts have been high prefab structures on factory before delivery to packing volume and cost.
☆ Safety and Reliability
Suitable for wind,snow area,the spiral pile bracket to ensure strong.stable system,suitable for different geological conditions, especially in rock,sold, gravel, desert, dry and hard soil.
