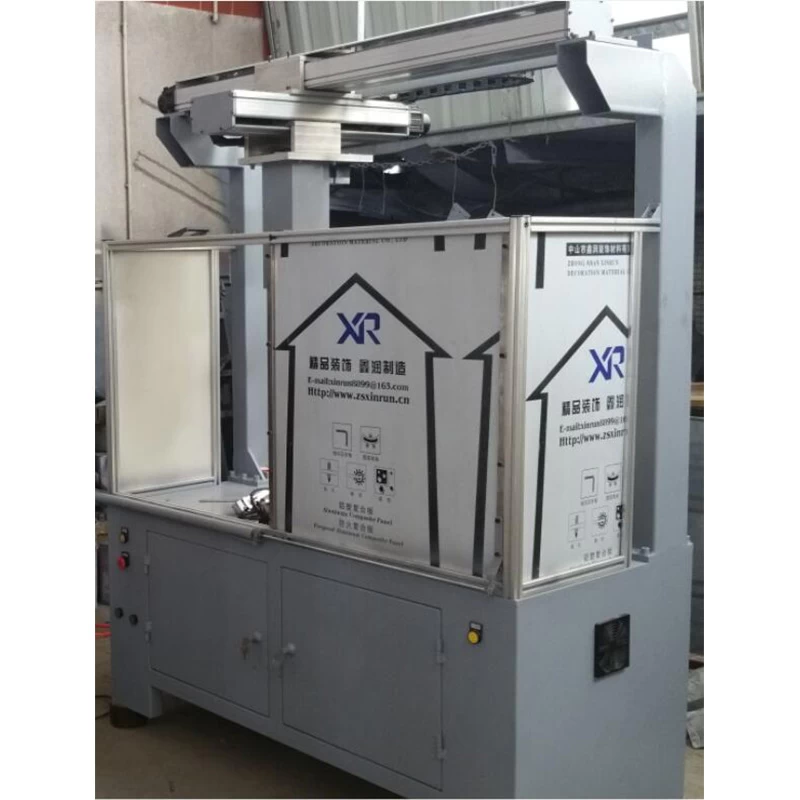

Gantry type welding robot with MIG/TIG ADTECH controller

Gantry Type Welding Machine can be provided a full solution for massive welding job with regular welding parts. Very easy operation on site.

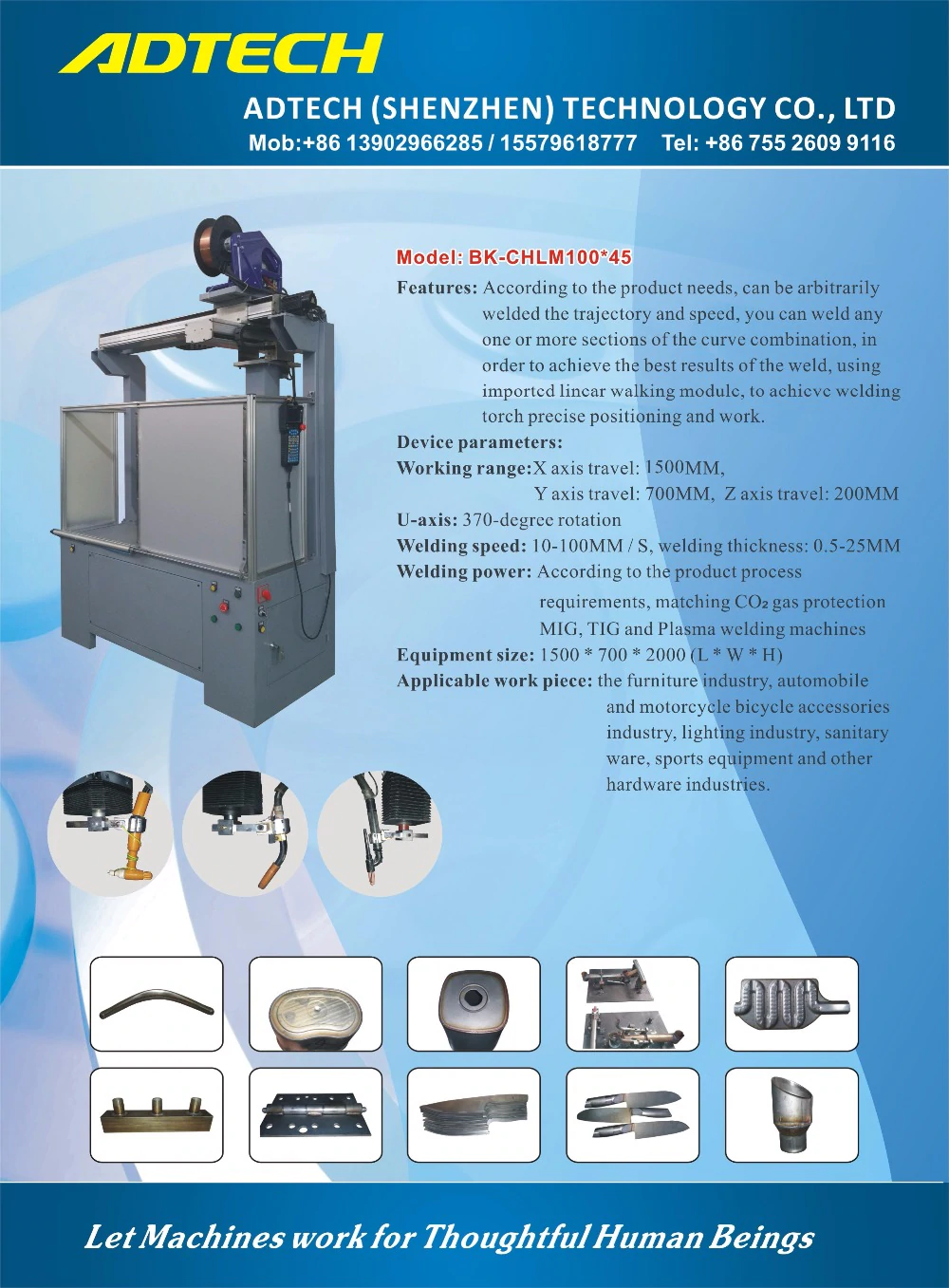

Leaflet BK-CGLM-1000X450


Model: BK-CHLM100

Features: According to the product needs, can be arbitrarily welded the trajectory and speed, you can weld any one or more sections of the curve combination, in order to achieve the best results of the weld, using imported linear walking module, to achieve welding torch precise positioning and work.

Device parameters:

Working range:

X axis travel: 1500MM,

Y axis travel: 450MM,

Z axis travel: 200MM

U-axis: 370-degree rotation

Welding speed: 10-100MM / S, welding thickness: 0.5-25MM

Welding power: According to the product process requirements, matching CO gas protection MIG, TIG and Plasma welding machines

Equipment size: 1500 * 700 * 2000 (L * W * H)

Applicable work piece: the furniture industry, automobile and motorcycle bicycle accessories industry, lighting industry, sanitary ware, sports equipment and other hardware industries.
