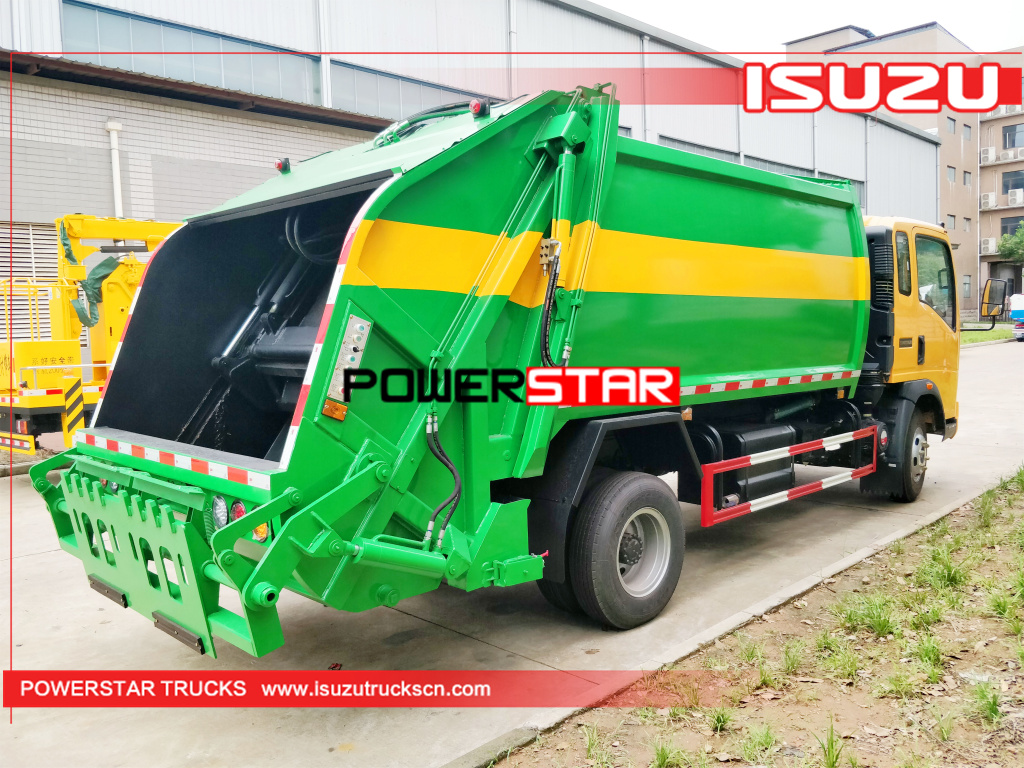

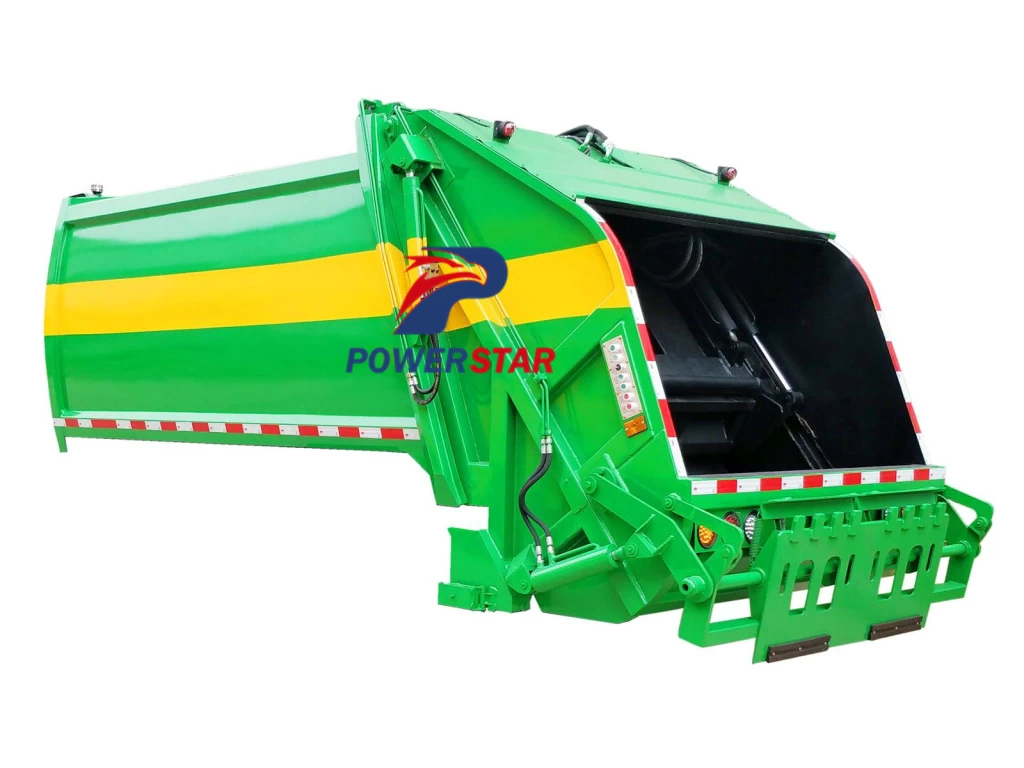

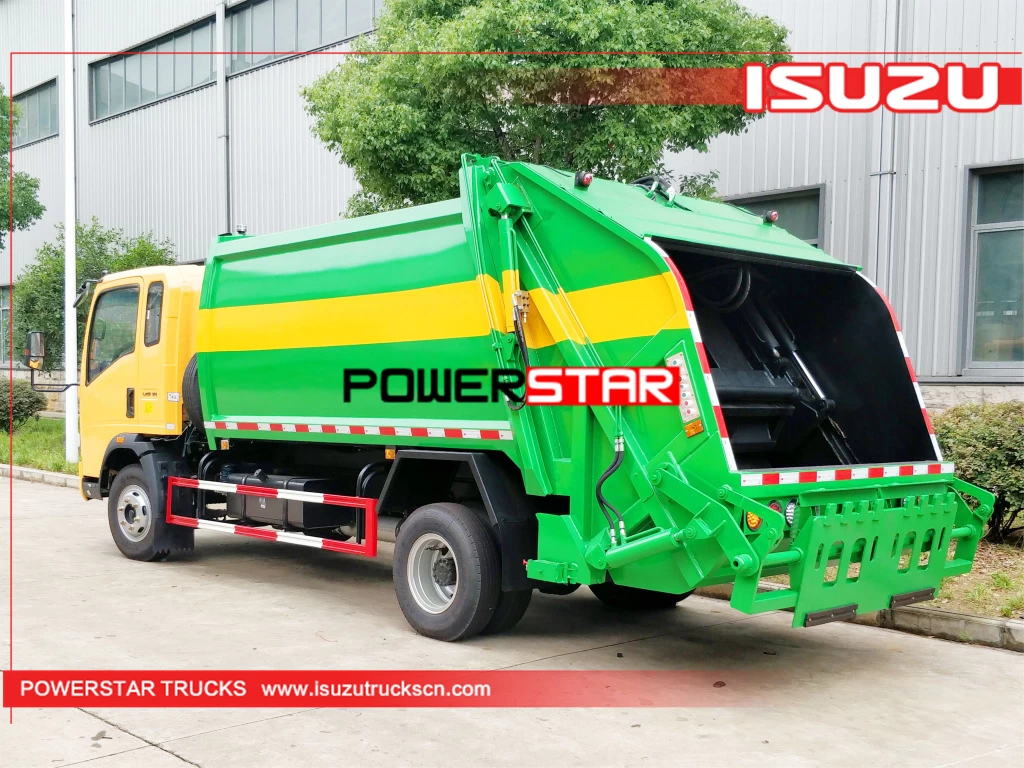

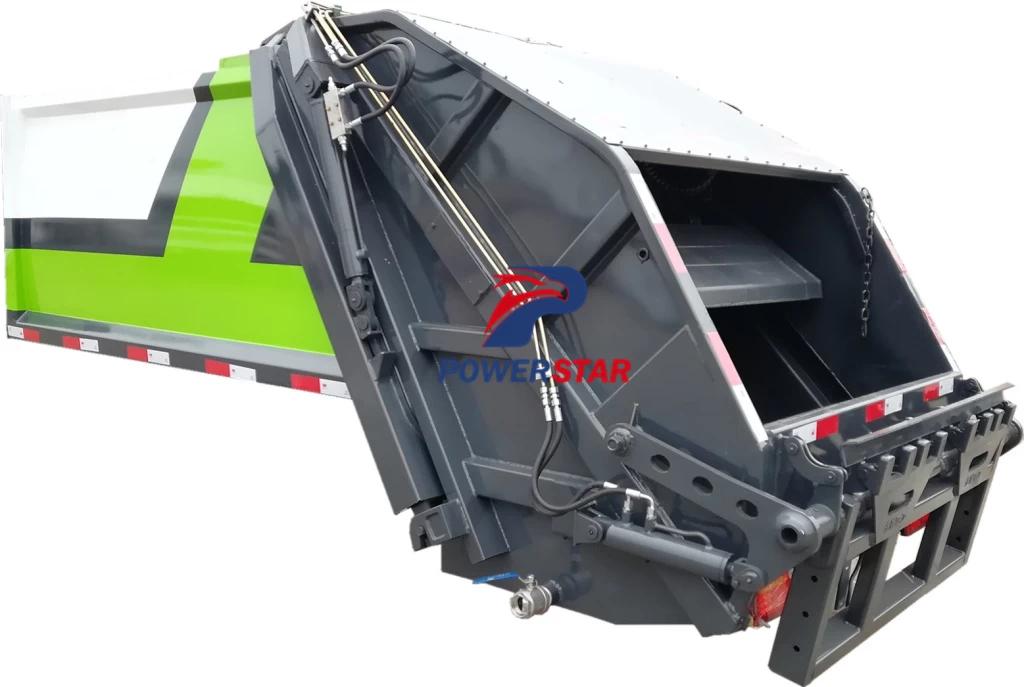

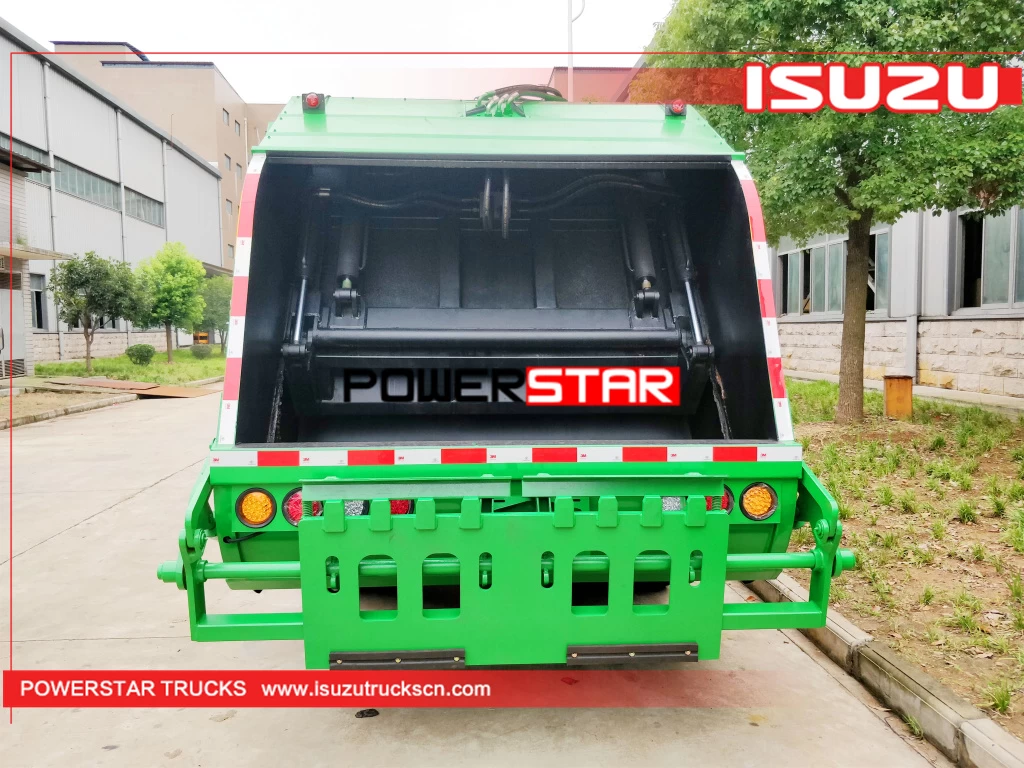

Refuse Compactor Body for sale
Function:
Refuse Compactor Body (also called as Waste Compactor truck up structure, Rear Loader Bodies, Refuse Truck Super Structure)
Mainly
suitable for the garbage collection and transportation is good
conditions places, such as urban and rural streets, large factories,
residential areas and school.
Features:
|
|
Brand new garbage compactor body
|
|
|
Any chassis brand available
|
|
|
Short delivery time 5~7 days
|
|
|
Worldwide shipping
|
|
|
100% custom-made, 3m3 to 22m3
|
|
|
12 months Free spare parts
|
|
|
Local install in customer workshop
|
Comparisons:
| Powerstar Trucks
|
Other Supplier
|
| Hydraulic Control Valve
|
|
Italy brand, 5 years working time
|
unknown brand, 1 year working time
|
| Electrical Control Box
|
|
Germany Siemens, reliability arise 30%
|
unknown brand, poor reliability
|
| Steel Hydraulic Pipe
|
|
Standard balance valve ,safety
|
No balance valve, dangerous
|
| Control System
|
|
CAN intelligent system, work efficiency arise 20%,
double control box equipped,
|
Common system, work slow ,
Single control box
|
| Hydraulic Pipe
|
|
Galvanized steel hydraulic pipe
|
Inexperienced steel pipe
|
| Hopper Cylinder System
|
|
Reinforced cylinder, good design
Blasting and anti-dust painting
|
Common cylinder, poor design
simple painting
|
| NO.
|
Item
|
Name
|
Code
|
Quantity
|
Comments
|
|
1
|
Compactor tank
|
Tank Assembly
|
YS12-0100000
|
1
|
|
|
2
|

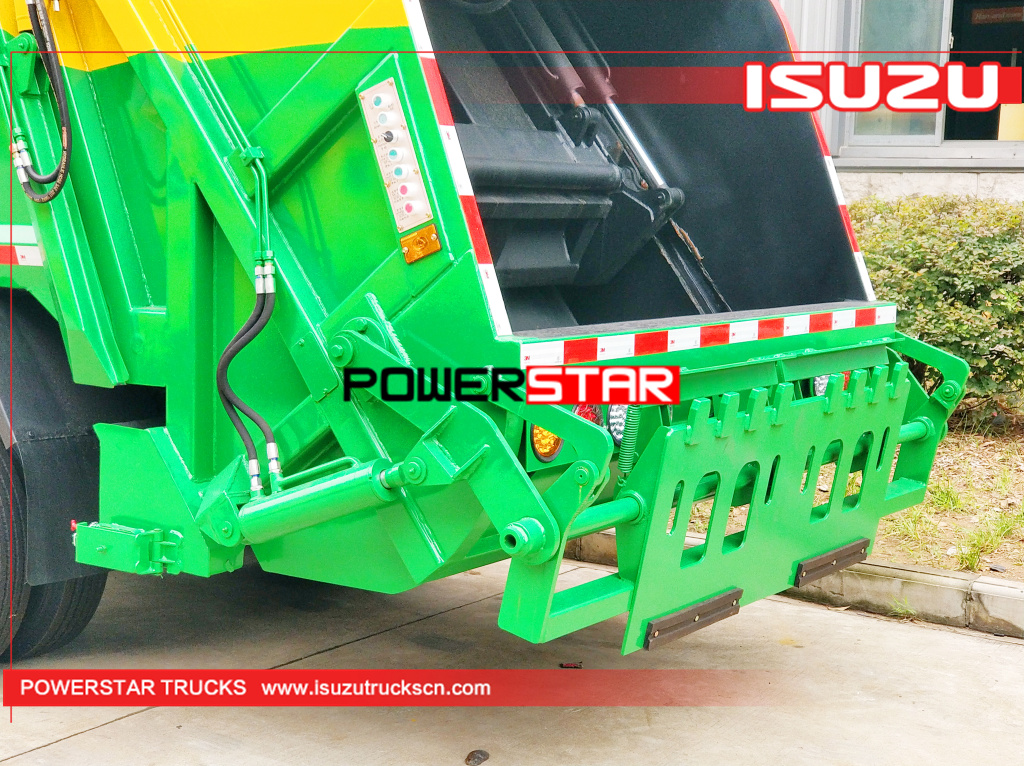

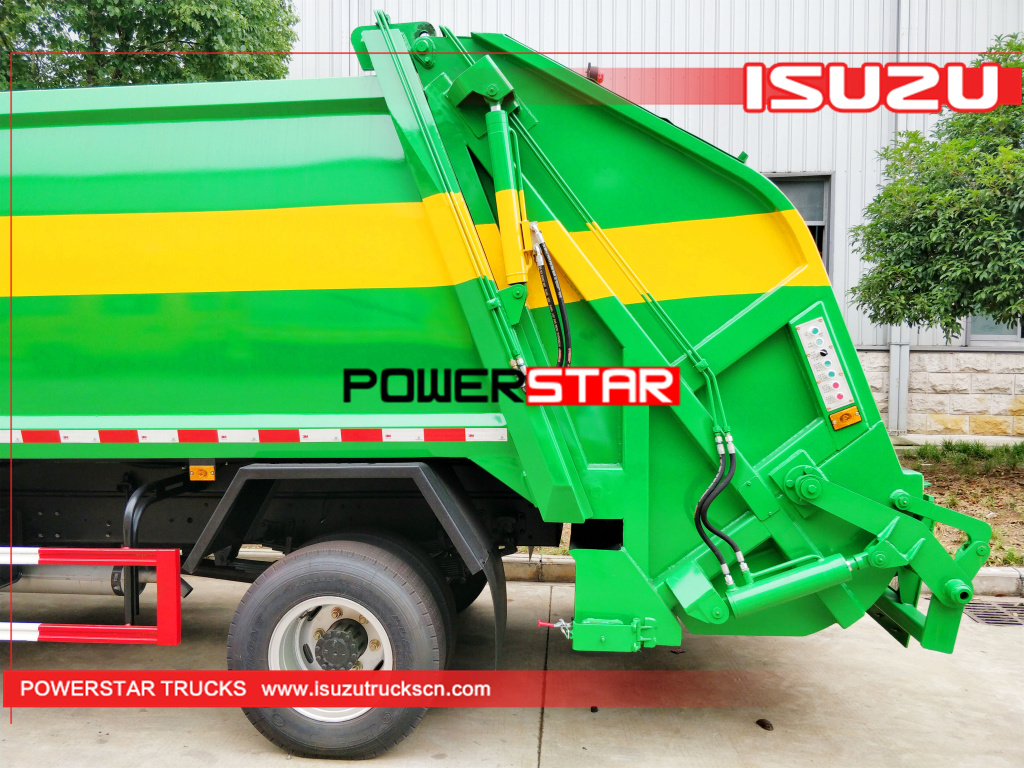

Tail Gate Assembly
|
YS12-0200000
|
1 set
|
|
|
3
|

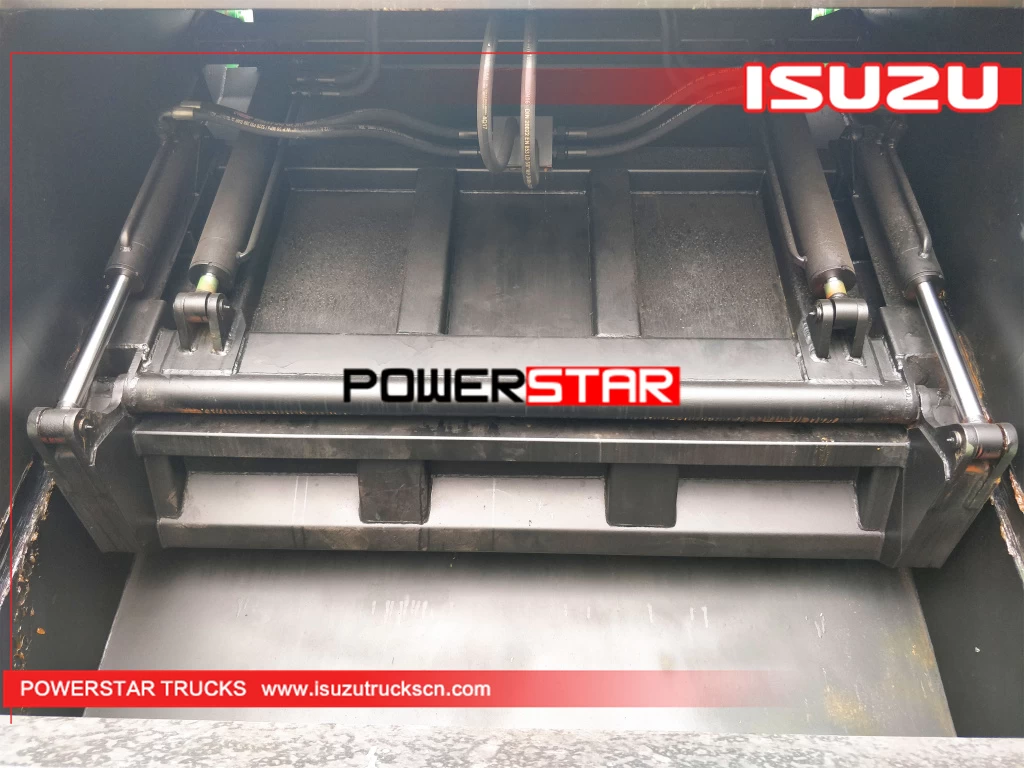

Scraper Assembly
|
YS12-0300000
|
1 set
|
|
|
4
|
Slide Plate Assembly
|
YS12-0400000
|
1 set
|
|
|
5
|

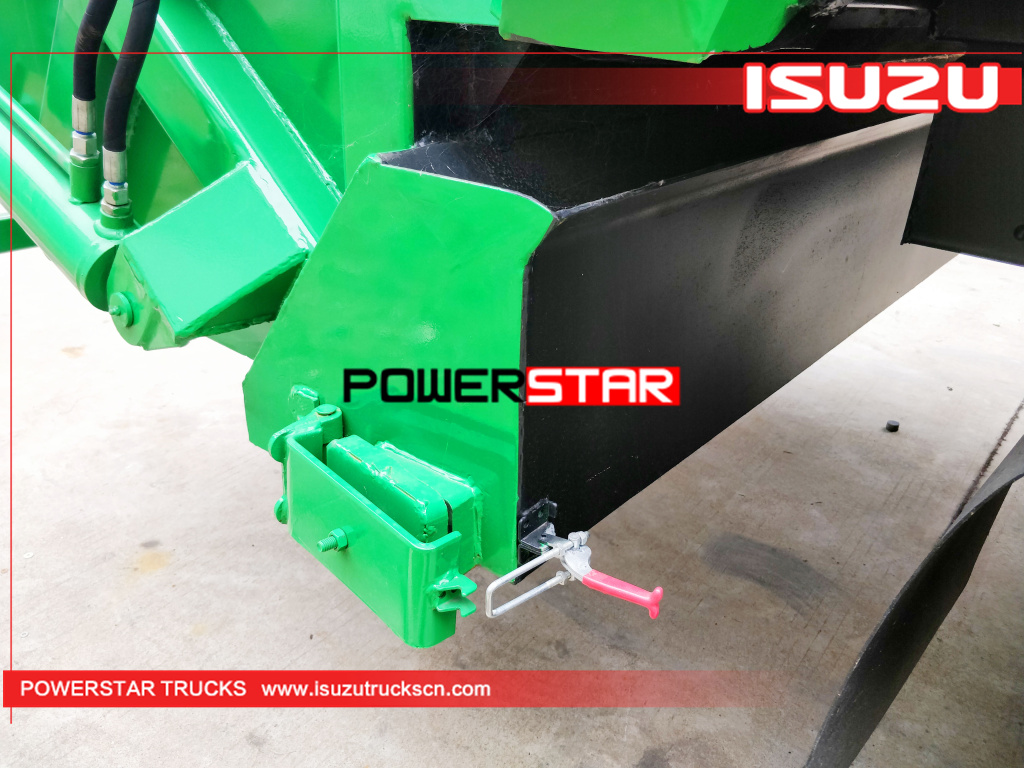

Tilt Device Assembly
|
YS12-0500001
|
1 set
|
|
|
6
|
Spare Parts
|
Oil Pump
|
|
1 unit
|
|
|
7
|
PTO
|
|
1 unit
|
|
|
8
|
Five Function Multi-way Valve
|
|
1 set
|
Installed
|
|
9
|
Hydraulic Oil Tank
|
80L
|
1 unit
|
Installed
|
|
10
|
PLC Control Box
|
|
1 set
|
Installed
|
|
11
|
Electric System
|
|
1 set
|
Installed
|
|
12
|
Balance Valve
|
5060BF2
|
2 units
|
Installed
|
|
13
|
Hosepipe, oil pipe & Joint
|
|
1 set
|
Installed
|
|
14
|
Slide Plate Oil Cylinder
|
50/90-1300x830
|
2 units
|
Installed
|
|
15
|
Scraper Oil Cylinder
|
50/80-860x570
|
2 units
|
Installed
|
|
16
|
Lifting Oil Cylinder
|
50/80-840x560
|
2 units
|
Installed
|
|
17
|
Tilt Device Oil Cylinder
|
45/80-410x170
|
2 units
|
Installed
|
|
18
|
Push Pate Oil Cylinder
|
55/125-1220x2600
|
1 unit
|
Installed
|
|
19
|
Sliding Block
|
Nylon
|
1 set
|
Installed
|
|
20
|
Hose Protector
|
|
1 set
|
Installed
|
|
21
|
Ball Valve
|
1’ 1/4
|
1 unit
|
Installed
|
|
22
|
Stainless Steel Cover
|
DN50
|
1 unit
|
Installed
|
|
23
|
Side lamps
|
|
1 set
|
Installed
|
