Garden Steel Palisade Security Fencing W Section
Features
Palisade fencing, a security wire fence with "D" and "W" section pale provides an effective deterrent to intruders. The two head styles - "D" pale profile, and "W" section pale - for different choice to meet a perceived level of security risk. "D" section thickness (shown as table-1) 2.0 mm /3.0 mm and "W" section thickness 2.0 mm /2.5 mm are chosen by the risk assessment for a particular uses
Specifications
-
Material: low carbon steel, stainless steel, hot rolled or cold rolled.
-
Fence length: 2.75 m.
-
Fence height: 1.2 m to 3.6 m.
-
RSJ post: 102 mm × 44 mm for fences below 2.7 mm, 127 mm × 66 mm for fences above 2.7 mm .
-
Square post: 50 mm × 50 mm × 1.6 mm thickness or 76 mm × 76 mm × 1.6 mm thickness.
-
Pales height: 1.2 m to 3.6 m.
-
Pales thickness: 2 mm to 5 mm .
-

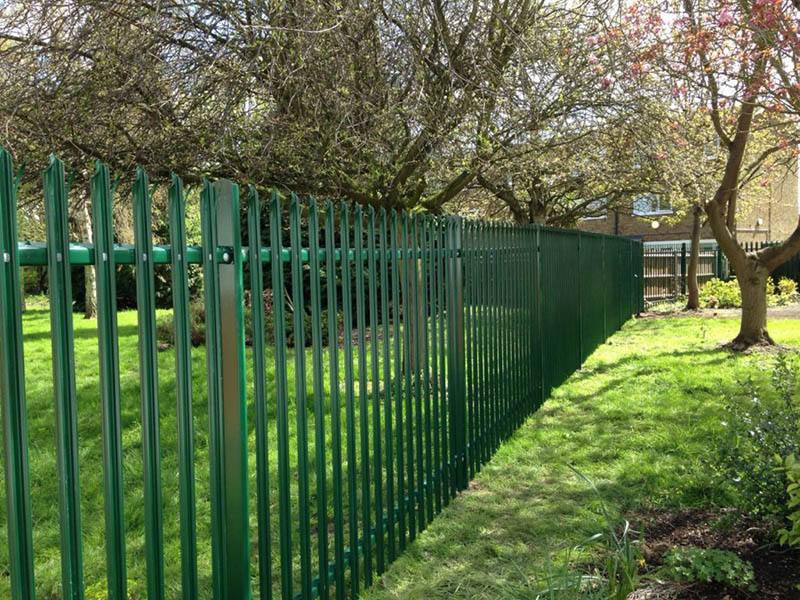

Anti-rust surface treatments: hot dipped galvanized or PVC coated with various colors (green, blue, yellow, red, shown as the picture above) for higher rust resistance.
Table-1: Palisade Fence Panel Pale Section and Head Profile
|
Standard Height
|
Pale Section
|
Head Profile
|
1.2 m
|
3.0 mm "D"
|
rounded & notched
|
1.5 m
|
3.0 mm "D"
|
rounded & notched
|
1.8 m
|
3.0 mm "D"
|
rounded & notched
|
1.8 m
|
3.0 mm "D"
|
triple pointed
|
1.8 m
|
2.0 mm "W"
|
triple pointed
|
2.0 m
|
2.0 mm "D"
|
rounded & notched
|
2.0 m
|
3.0 mm "D"
|
triple pointed
|
2.0 m
|
2.0 mm "W"
|
triple pointed
|
2.1 m
|
3.0 mm "D"
|
triple pointed
|
2.1 m
|
2.0 mm "W"
|
triple pointed
|
2.4 m
|
2.0 mm "D"
|
triple pointed
|
2.4 m
|
3.0 mm "D"
|
rounded & notched
|
2.4 m
|
2.0 mm "W"
|
triple pointed
|
2.4 m
|
2.5 mm "W"
|
triple pointed
|
3.0 m
|
3.0 mm "D"
|
triple pointed
|
Table-2: Palisade Fencing Accessories Size
|
Components
|
Domestic Palisade Fencing
|
Commercial Palisade Fencing
|
Industries Palisade Fencing
|
Pales
|
42 × 2 mm
|
42 × 1.6 mm
|
50 × 2 mm / 2.5 mm or angle steel 40 × 40 × 2.3 mm
|
62 × 2.5 mm / 3.0 mm or angle steel 40 × 40 × 2.3 mm
|
Horizontal rails
|
40 × 40 × 2.5 mm
|
40 × 40 × 2 mm
|
40 × 40 × 2.5 mm / 3.0 mm
|
50 × 50 × 3.0 mm / 5.0 mm
|
Square post
|
76 × 76 × 1.6 mm
|
50 × 50 × 1.6 mm or 76 × 76 × 1.6 mm
|
76 × 76 × 1.6 mm
|
76 × 76 × 1.6 mm
|
Post clamps
|
29 × 3 mm
|
29 × 3 mm
|
29 × 3 mm
|
45 × 3 mm
|
Bolts and nuts
|
M6 × No.34 for pale fixing
|
M6 ×No.34 for pale fixing
|
M8 × No.38
|
M8 ×No.34 for pale fixing
|
M8 × No.4 for rail fixing
|
M8 ×No.4 for rail fixing
|
M12 ×No.4 for rail fixing
|

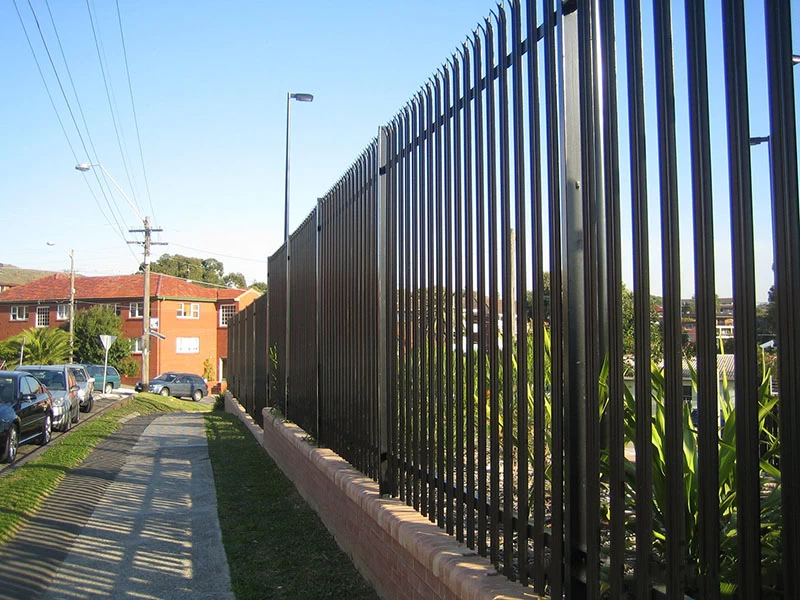

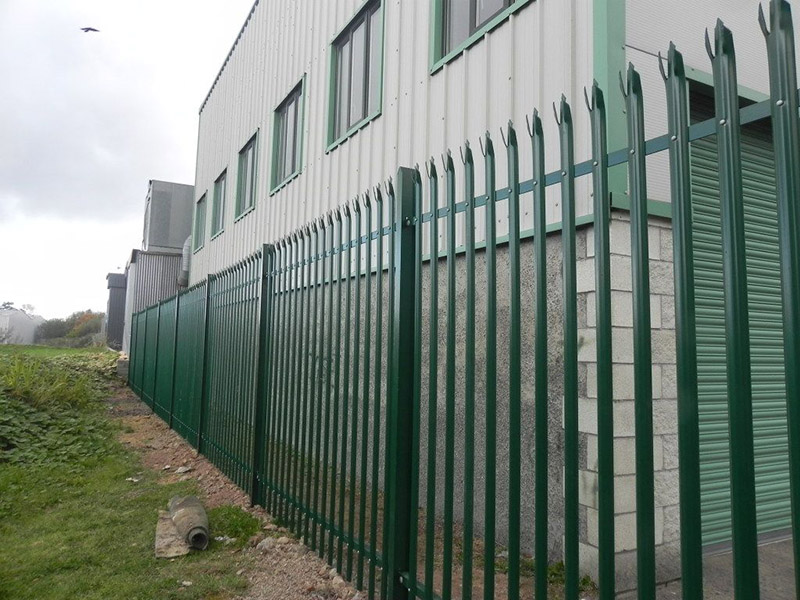

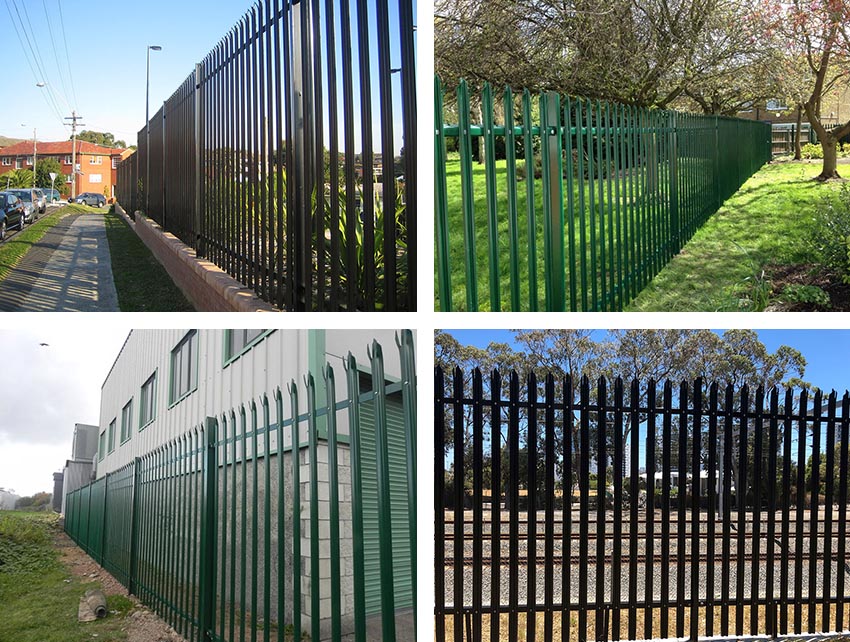

Products Application
We offers several fencing solutions to fit your needs. One of our most popular fencing solutions is the steel fence (also known as Steel picket fence and Garrison fencing). This fencing solution is particularly popular for commercial applications as it provides a high level of security at an economical price.
