Machine Characteristics & Technical Parameters

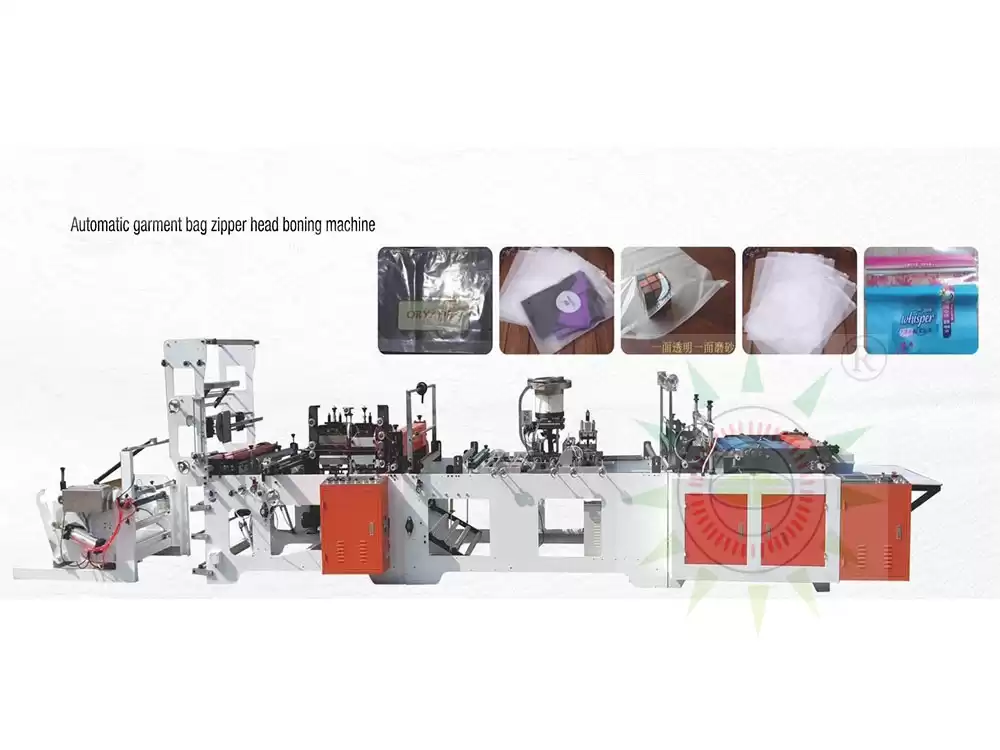

- The zipper bag making machine is with Imported servo motor drive, imported PLC control, Stainless steel chassis shield, easy operation, quick and stable bag making.
- Simple and reliable mechanical transmission structure design, light and stable. Easy maintenance & operate.
- With EPC opening, folding pocket insertion, cutting edge, easy tear, punching, color tracking, automatic fitting the zipper, ultrasonic flattening, hot-cutting bag making.
- Pneumatic loading material roll, waste edge collection device, the whole machine is simple, beautiful and easy to operate.
- Cutting knife, water pressure plate is reversible, Cleaning is simple and quick in production.
- Horizontal fit design, beautiful and generous, simple and practical operation.
- The imported color tracking photocell eye make sure a accurate bag cutting.

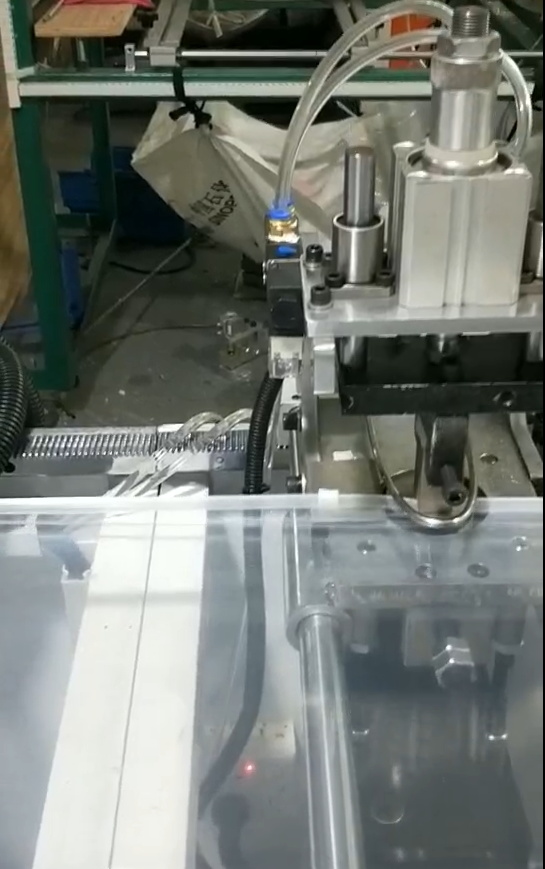

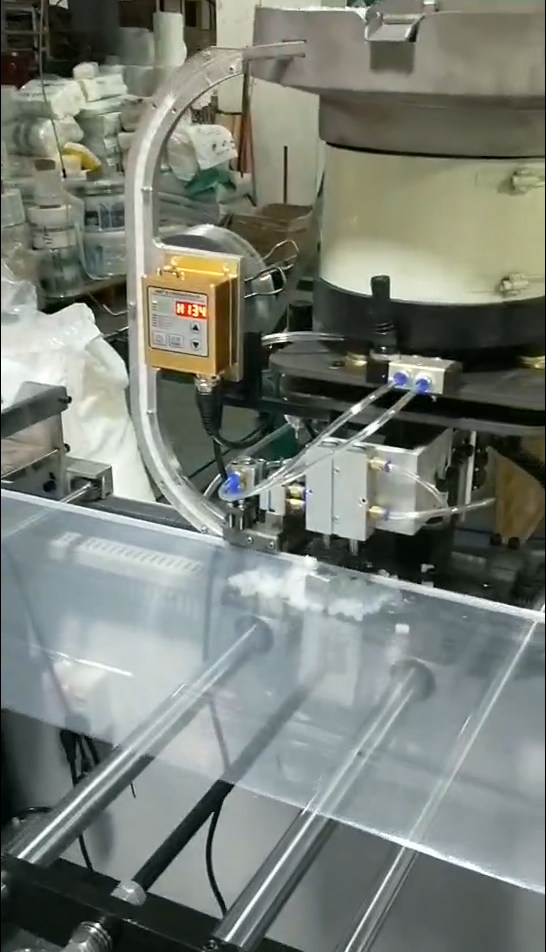

- The zipper pull is full automatically installed to improve production efficiency. save labor cost. and is more stable and reliable
- Automatic alarm and shut down when machine is lack of material.
Technical Parameters
| Model |
XBL-SS600 |
XBL-SS800 |
XBL-SS900 |
XBL-SS1000 |
| Voltage |
Three phase four wire 380V |
Three phase four wire 380V |
Three phase four wire 380V |
Three phase four wire 380V |
| Total power |
7.8KW |
8.2KW |
9KW |
9.8KW |
| Average power |
4.2KW |
4.5KW |
5.3KW |
5.6KW |
| Effective bag making width(mm) |
100~520 |
100~720 |
100~820 |
100~920 |
| Effective bag making length(mm) |
50~600 |
50~750 |
50~800 |
50~1000 |
| Max speed (pcs/min) |
10~120 |
10~120 |
10~100 |
10~90 |
| Weight (KG) |
1700 |
1820 |
2150 |
2450 |
| Length |
5800MM |
6300MM |
7500MM |
8300MM |
| Width |
1200MM |
1400MM |
1500MM |
1600MM |
| Height |
1800MM |
1800MM |
1900MM |
2100MM |
Details Show
