Gas And Electric Heating Green Tea Leaf Dryer Machine 6CHZ-Q14

DL-6CHZ-Q14 tea drying machine can use liquid gas, natural gas and electric, can dry all most kinds tea, such as green tea, black tea, oolong tea and so on.

  • Efficiency170 kg/h
  • Drying layer16
  • Total drying area14.5 m2
  • Rotary speed6 rpm
  • Heating elementGas and electric
  • Voltage380/50 V/Hz
  • Dimension1610×1350×2790 mm
Facebook Twitter Pinterest LinkedIn 分享

Description:
For non-fermented tea such as green tea: evaporate water, tighten the tea, make the tea fully dry, divergent to remove the grassy taste, enhance the aroma of the tea.

For fermented tea such as black tea: the activity of the enzyme is destroyed by high temperature, the enzymatic oxidation is interrupted, and the quality of the tea is maintained.
Evaporate the water in the tea leaves, so that the tea leaves are fully dried, divergent to remove the grassy taste, and enhance the aroma of the tea leaves.

For herbal tea: Evaporate water, tighten flowers and plants, and keep the original color and original aroma

Application:
Tea drying machine can process almost all tea: such as black tea, green tea, oolong tea, and herbal tea.

Parameter:

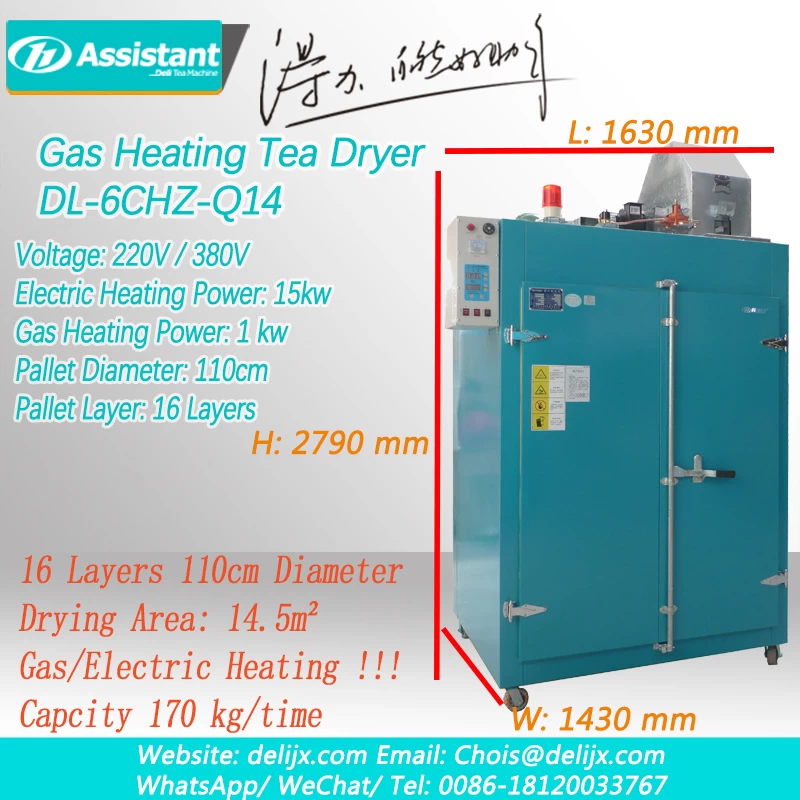

DL-6CHZ-Q14 gas and electric heating tea dryer specification:
Model DL-6CHZ-Q14
Dimestion 1430×1630×2790 mm
Voltage 380/50 V/Hz
Gas heating type Natural gas
Electric heating type Electric heating wire
Electric heating power 15 KW
Electric heating group 3 Group
Fan motor Power 0.55 KW
Speed 1400 rpm
Rated voltage 220 V
Pallet rotary motor Power 40 W
Speed 1250 rpm
Rated voltage 220 V
Pallet rotary speed 6 rpm
Pallet type Round
Drying pallet diameter 110 cm
Effective drying area 14.5 m2
Number of drying pallet 16
Efficiency 170 kg/h
The above data is based on fresh tea leaf water content of 75-80%.

Advantage:

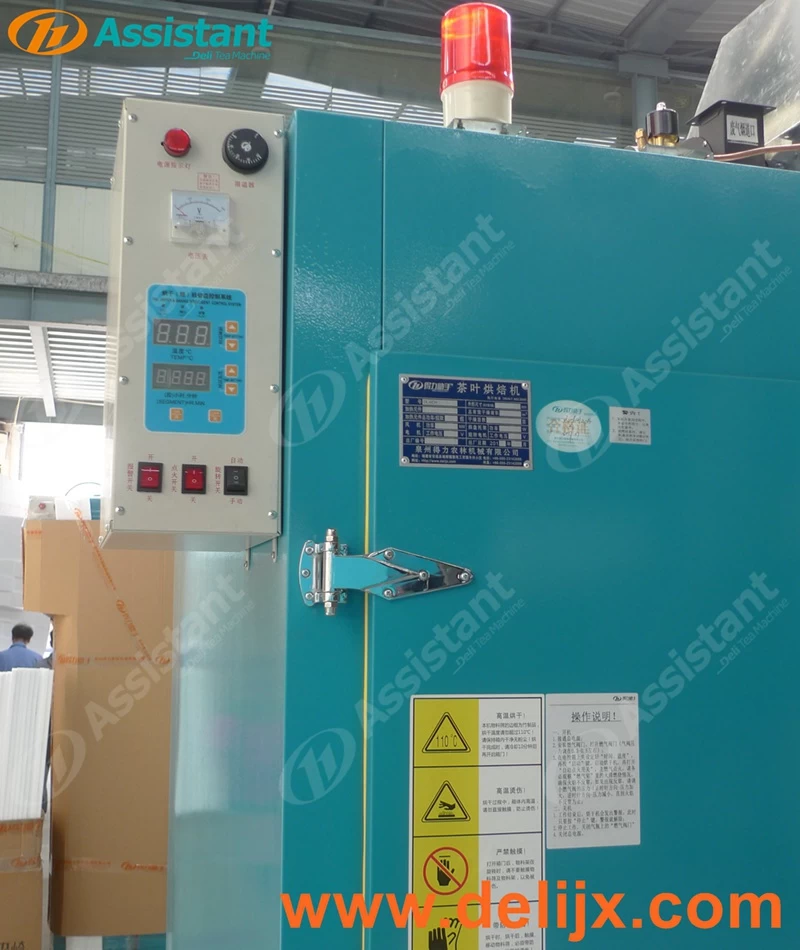

Intelligent temperature and time control system

Add mechanical temperature limiting module to ensure precise temperature control.

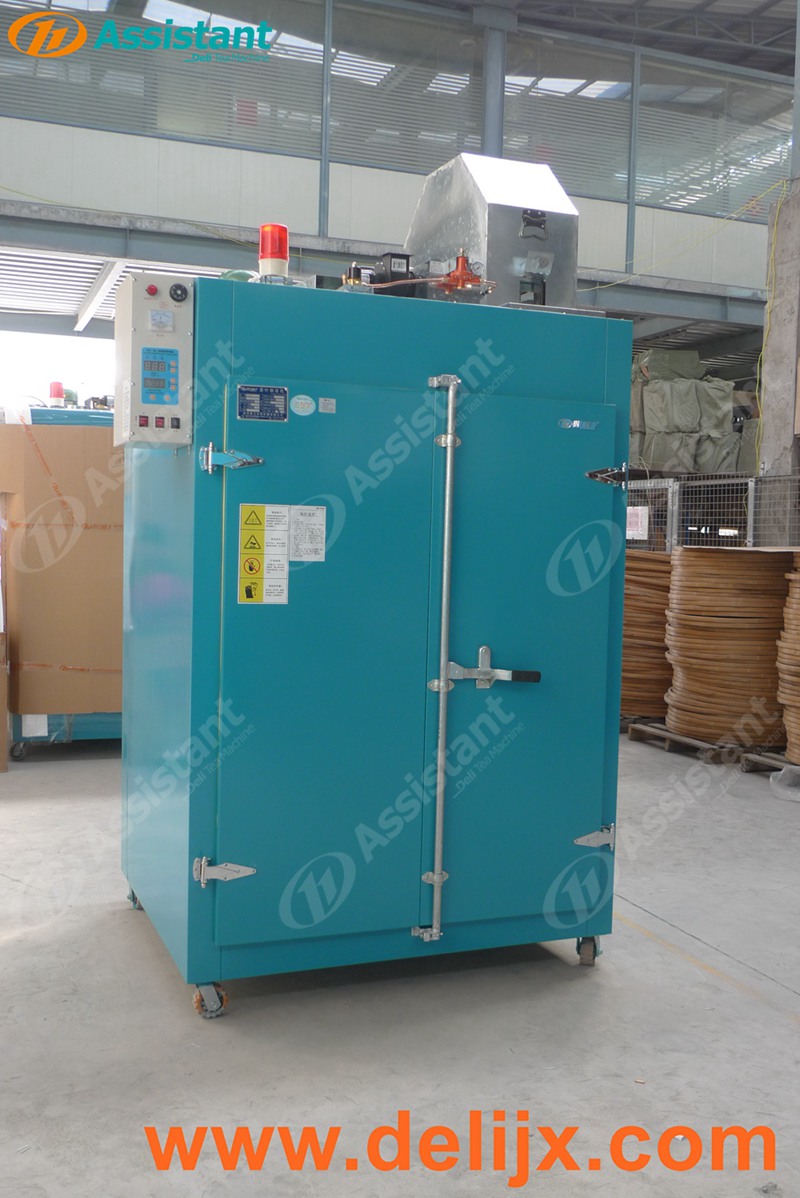

Gas And Electric Heating Green Tea Leaf Dryer Machine 6CHZ-Q14
Gas And Electric Heating Green Tea Leaf Dryer Machine 6CHZ-Q14

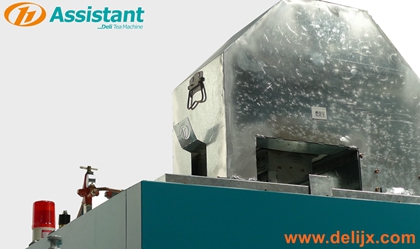

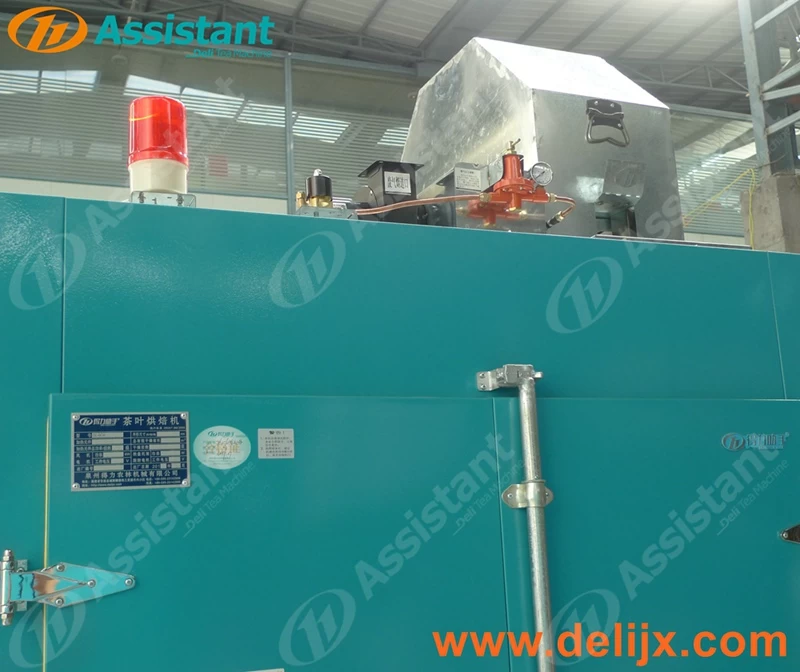

National patent gas burner

The tea dryer can be heated by GAS heating or ELECTRIC heating with high heating efficiency.

1 m³ gas can generate 8800 calories, It needs 10.2 KWh of electricity.
Gas And Electric Heating Green Tea Leaf Dryer Machine 6CHZ-Q14
 Gas And Electric Heating Green Tea Leaf Dryer Machine 6CHZ-Q14
 Gas And Electric Heating Green Tea Leaf Dryer Machine 6CHZ-Q14
Patented hot air duct design
 Copper core driving motor on the top
 Galvanized sheet and calcium silicate board insulation system
Gas And Electric Heating Green Tea Leaf Dryer Machine 6CHZ-Q14
 Gas And Electric Heating Green Tea Leaf Dryer Machine 6CHZ-Q14
Tea drying machine modular design
 Rotary drying method for tea

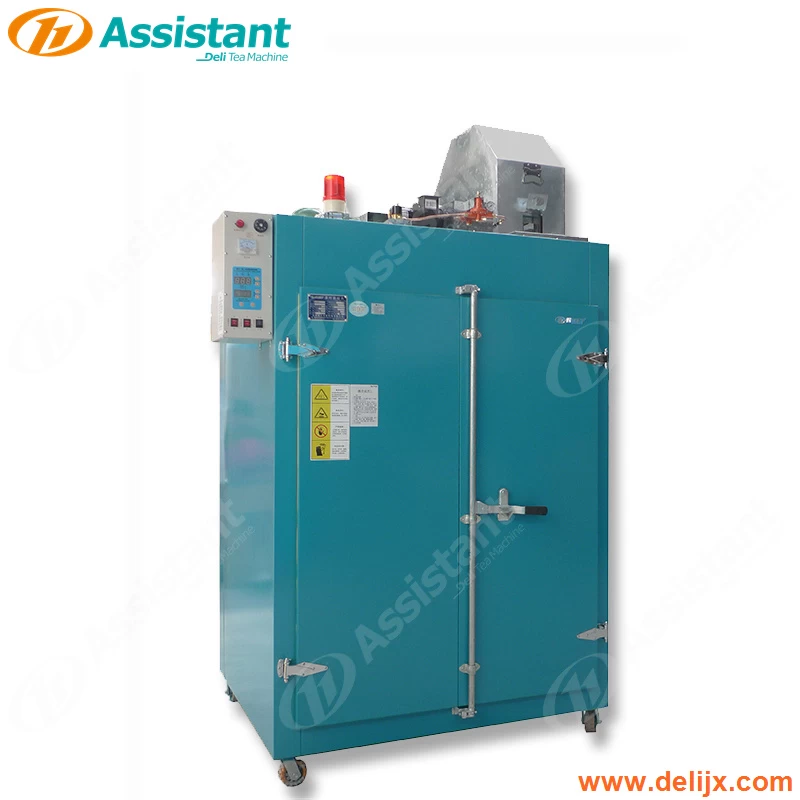

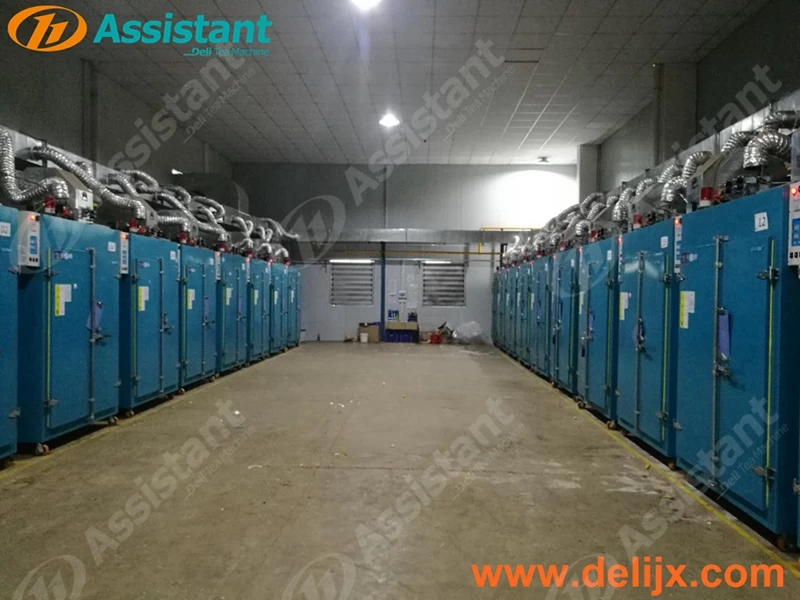

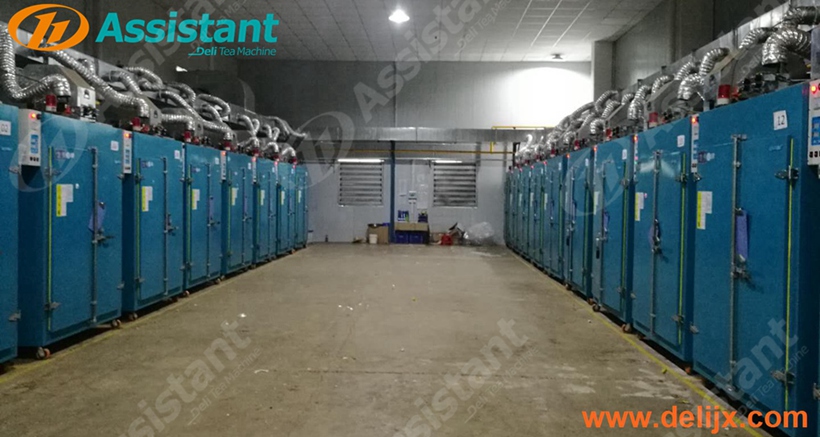

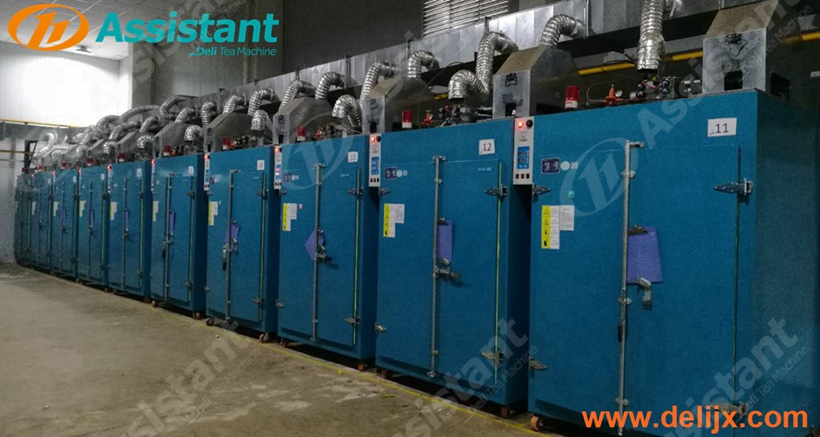

DL-6CHZ-Q14 tea leaf drying machine photos:

Green Tea Leaf Dryer Drying Machine Manufacturer 6CHZ-Q14
Green Tea Leaf Dryer Drying Machine Manufacturer 6CHZ-Q14
Green Tea Leaf Dryer Drying Machine Manufacturer 6CHZ-Q14
