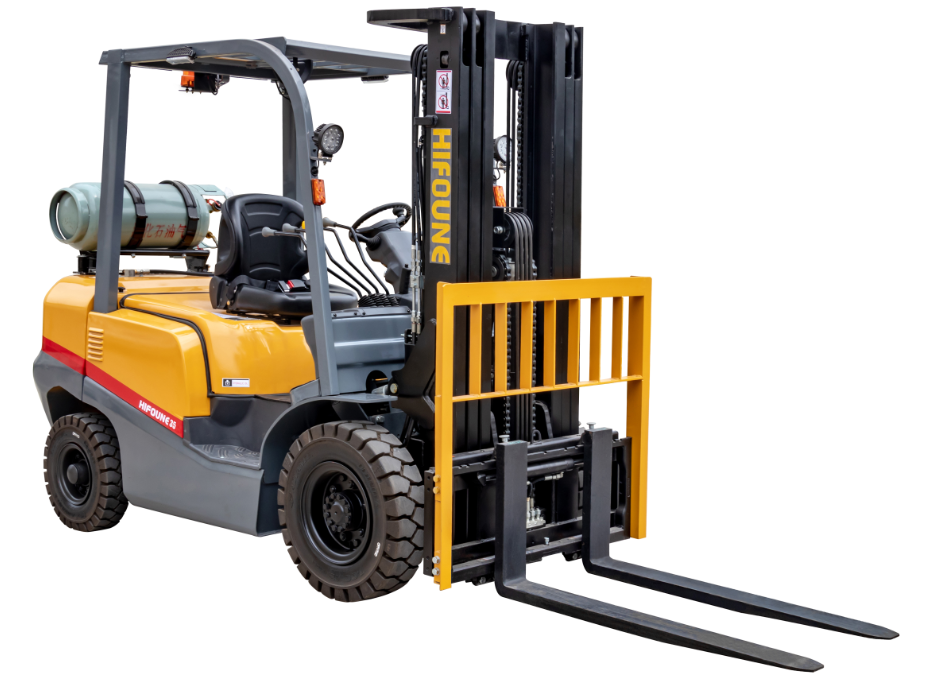

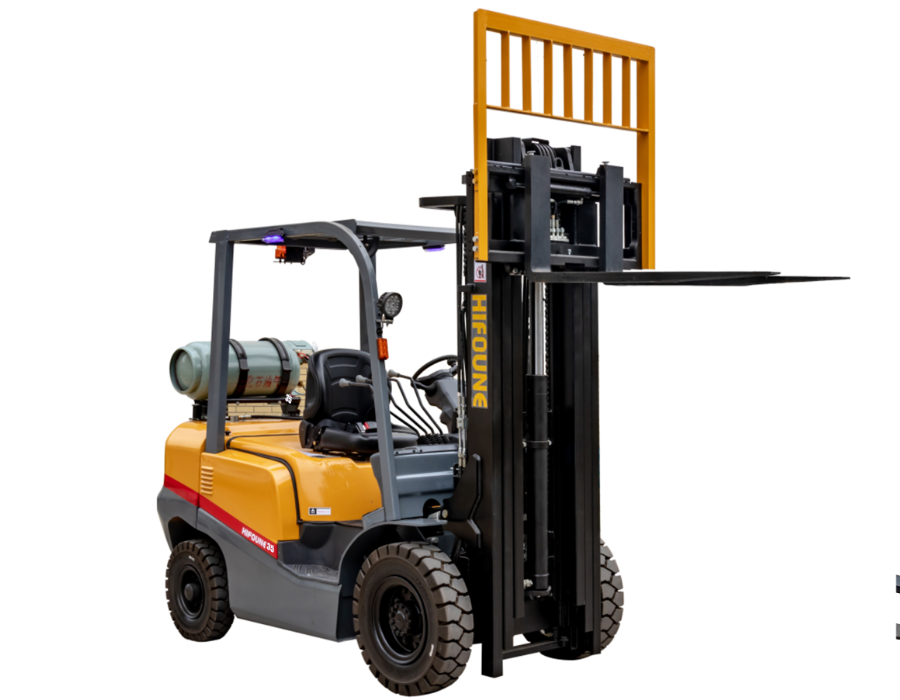

Gas/LPG forklift C series-3.5 ton

Hifoune FG35T is a forklift at 3.5ton capacity which powered by gas&LPG, color customizable, please contact us for more information.



Model UNIT FG30T FG35T
Specifications Power Unit Igasoline Igasoline
Operator Type Driver/seat Driver/seat
Transmission Box Type Electronic hydraulic transmission
Rated Capacity kg 3000 3500
Load Center mm 500 500
Max. Lifting Height mm 3000 3000
Tyre Type Pneumatic Tyre Pneumatic Tyre
Tyre Number(Front/Rear) 2/2 2/2
Tyre Size (Front/Rear) 28×9-15-14PR/6.5-10-10PR 28×9-15-14PR/6.5-10-11PR
Performance Lifting Speed (Loaded/Unloaded) mm/s 500/550 500/550
Lowering Speed (Loaded/Unloaded) mm/s 480/450 480/450
Travelling Speed (Loaded/Unloaded) km/h 19/20 19/20
Max. Gradeability (Loaded) % 21 21
Max. Drawbar Pull (Loaded) n 18 18
Mast Tilting Angle (Fwd/Bwd) deg 6/12 6/12
Free Lifting Height mm 150 150
Turning Radius mm 2400 2460
Dimensions Overall length (without fork) mm 2705 2760
Overall Width mm 1240 1240
Overhead Guard Height mm 2130 2130
Fork Size (LxWxT) mm 1220×125×45 1220×125×50
Mast Height (Fork lowered) mm 2140 2140
Battery(Voltage/Capacity) V/Ah 12/90 12/90
Truck Weight kg 4310 4610
Fuel tank capacity L 70 70
Engine Brand  NISSAN NISSAN
Model K25 K25
Rated Power kw/rpm 37.4/2300 37.4/2300
Rated torque n-m/rpm 176.5/1600 176.5/1600
Number of cylinder 4 4
Displacement 2.49 2.49

Product Features


Small ton internal GAS/LPG forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design

Our Factory


    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.



    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

Certifications

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
