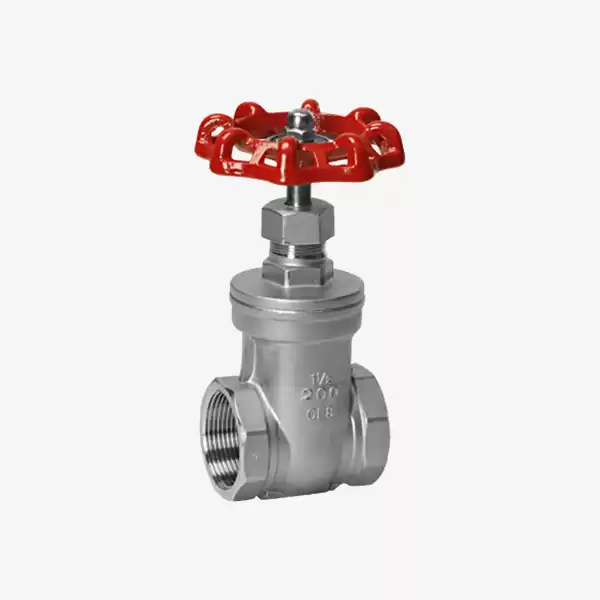

Gate Valve 1½Inch 200WOG Thread End

ASME B16.34 Gate Valve

½Inch, 200WOG, CF8, F304, FNPT,LEVER

Manufacture STAVAL Factory Offers.

  • Working Temp. -196°C to +600°C
  • ConstructionScrew,Metal Seat
  • BoreFull Bore, Reduce Bore
  • End ConnectionBW, SW, FNPT,
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Pressure Range200WOG
  • Size Range½Inch ~ 4Inch (DN10 ~ DN100)
Facebook Twitter Pinterest LinkedIn 分享

Features

Reliable sealing performance and small torque;
Low emission packing;
Optional locking device;

Key Specification

Type

Gate Valve

Size

1½Inch

Pressure

200WOG

Construction

Full Bore, Non Rising Stem

Connection

FNPT End

Body/Bonnet Material

CF8

Ball Material

SS304

Stem Material

A182 F304

Seat Material

SS304

Bolt/Nut

B8/8

Design Standard

ASME B16.34

Face to Face Dimension

Manufacture Standard

End Connection

AISI B 1.20.1

Fire Safe

API607

Inspection & Test Std.

API598

Temperature Range

-29℃~+129℃

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
