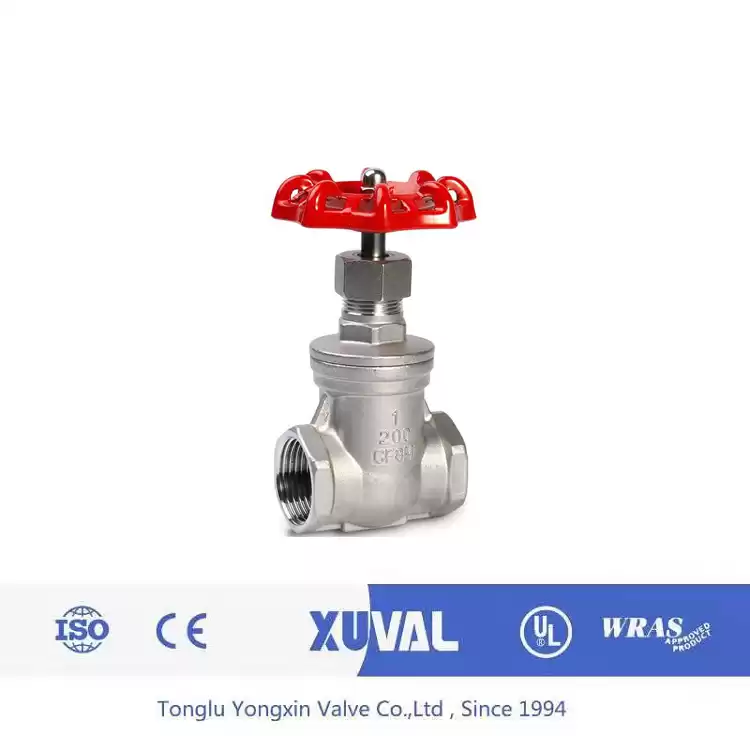

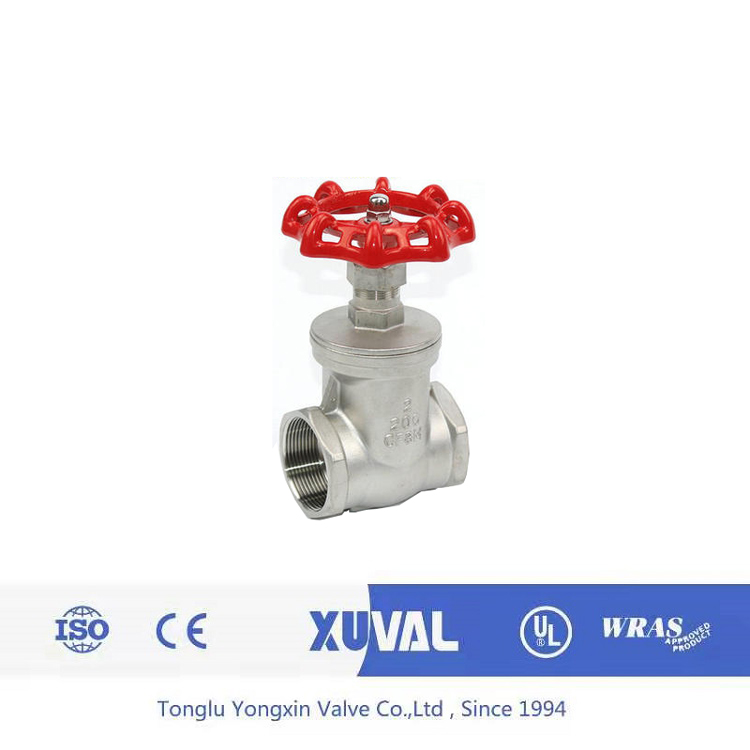

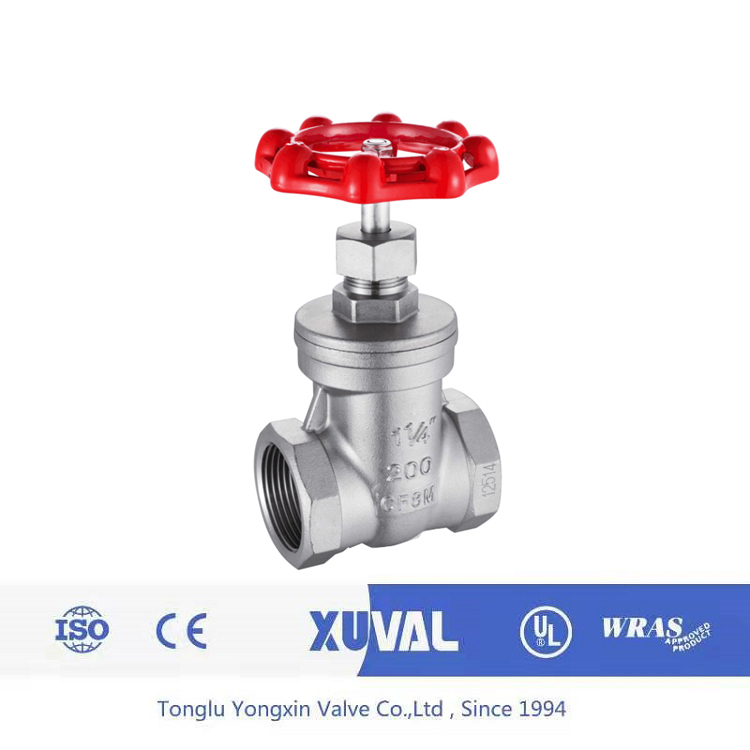

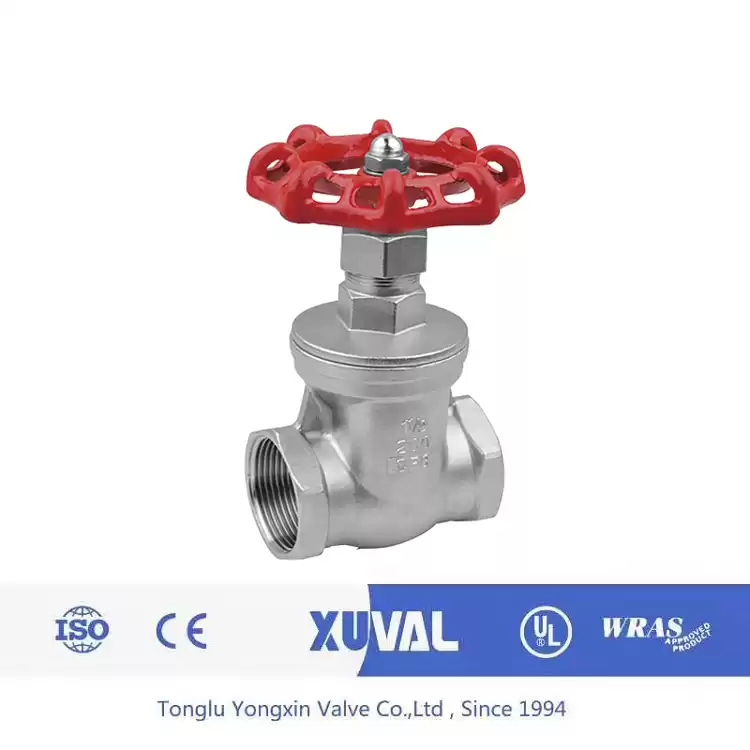

Gate valve thread end socket weld end
The stainless steel gate valve is a opening and closing part of the gate plate. The direction of movement of the gate plate is perpendicular to the direction of fluid. The gate valve can only be fully open and closed, and cannot be adjusted or throttled. The sluice valve is sealed through the contact between the valve seat and the sluice plate. Usually, the sealing surface will be welded with metal materials to increase wear resistance, such as 1Cr13, STL6, stainless steel, etc. Sluice has rigid sluice and elastic Sluice. According to different sluice, sluice valves are divided into rigid sluice and elastic sluice.
Features:
1/2'~2"(DN15~DN50)
W.P.: 200WOG (PN16)
W.T.: 425℃
Investment casting
Non-rising stem
Thread end:ASME B 1.20.1(NPT)
DIN 259/DIN 2999.BS 21.
ISO 288-1,ISO 7-1
Socket weld end:ASME B 16.11
Material List
|
No.
|
PARTS
|
MATERIAL
|
|
1
|
BODY
|
WCB
|
CF8
|
CF8M
|
2
|
WEDGE DISC
|
CF8
|
CF8
|
CF8M
|
|
3
|
STEM
|
304
|
304
|
316
|
|
4
|
GASKET
|
PTFE
|
5
|
CIRCLIPS FOR SHAFT
|
304
|
304
|
316
|
|
6
|
WASHER
|
304
|
304
|
316
|
|
7
|
BONNET
|
WCB
|
CF8
|
CF8M
|
|
8
|
PACKING
|
PTFE
|
|
9
|
GLAND
|
304
|
10
|
BONNET NUT
|
WCB
|
CF8
|
CF8M
|
|
11
|
HANDWHEEL
|
ZL101
|
|
12
|
FLAT PAD
|
304
|
|
13
|
NUT
|
304
|
Unit:mm
Dimensions
|
SIZE
|
d
|
L
|
H
|
W
|
D
|
J
|
1/2"
|
DN15
|
15
|
52
|
97
|
70
|
21.8
|
9.5
|
3/4"
|
DN20
|
20
|
57.5
|
103
|
70
|
27.2
|
12.5
|
1"
|
DN25
|
25
|
61.5
|
113
|
70
|
33.9
|
12.5
|
|
1-1/4"
|
DN32
|
32
|
70.5
|
132
|
80
|
42.7
|
12.5
|
|
1-1/2"
|
DN40
|
40
|
74.5
|
156
|
100
|
48.8
|
12.5
|
|
2"
|
DN50
|
50
|
84
|
172
|
100
|
61.2
|
16
|
Packing & Delivery :
Packing Details : all stainless steel gate valve by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
