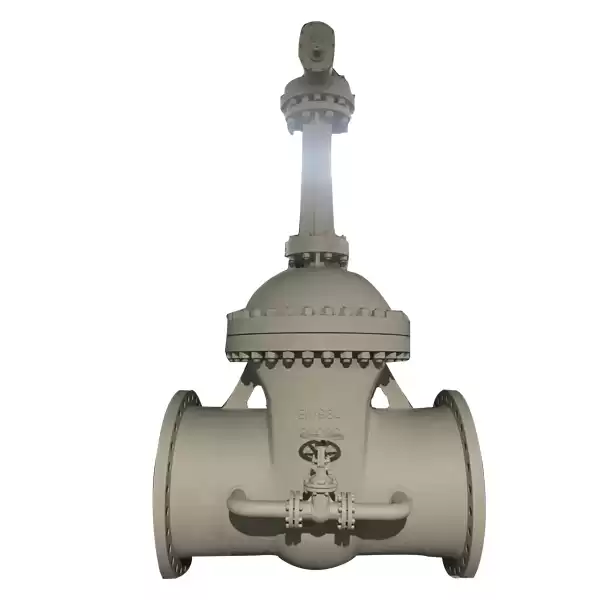

Gate Valve With By Pass Globe Valve DN1000 PN10 WCB
EN1984 Rising Stem Gate Valve With By Pass
DN1000,PN10,WCB, WCB+STL,Gear Box
Manufacture STAVAL Factory Offers.
- Working Temp.-196°C to +600°C
- End ConnectionBW, Flange
- BoreFull Bore, Reduce Bore
- ConstructionRising/Non Rising,Bolt/Weld Bonnet,Flexible/Solid Wedge
- Material RangeCarbon/Stainless/Alloy Steel,Bronze, Cast Iron
- Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
- Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
|
Type |
Gate Valve |
|
Size |
DN1000 |
|
Pressure |
PN10 |
|
Construction |
Rising Stem, Bolt Bonnet, Full Bore, Flexible Wedge,With By Pass Valve 2Inch |
|
Connection |
RF End |
|
Body/Bonnet Material |
A216 WCB |
|
Wedge Material |
A216 WCB+STL |
|
Stem Material |
A182 F6A |
|
Seat Material |
A105+STL |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
EN1984 |
|
Face to Face Dimension |
DIN3202 |
|
End Connection |
EN1092-1 |
|
Inspection & Test Std. |
EN12266-1 |
|
Temperature Range |
-29℃~+425℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
