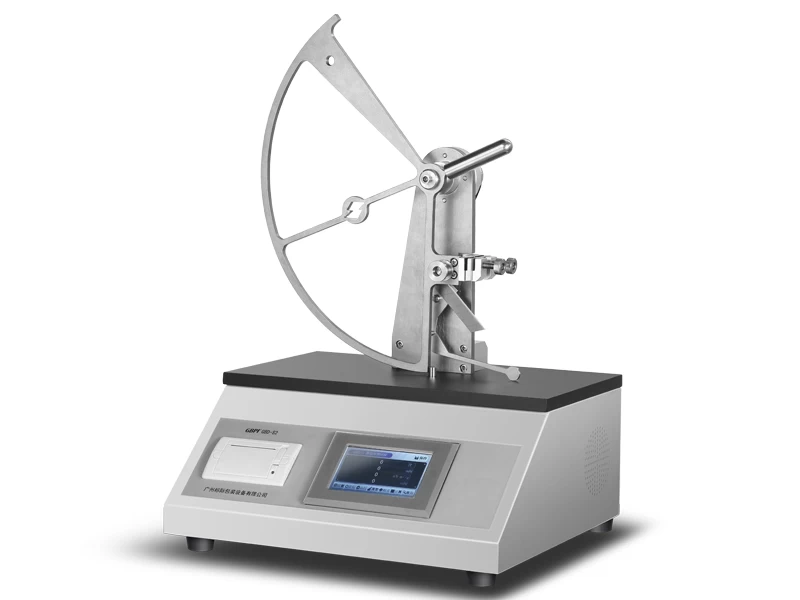

1. Working Principle
Lift the pendulum up to certain height, enable it to have a certain potential energy, pendulum tears the specimen while swinging down, computer calculates the decreasing energy caused by tearing.
2. Technical parameters
Test range: 0 ～66203mN
Tearing arm: 105 ± 1 mm
Initial tearing angle: 27.5˚±0.5˚
Indication error within: ±0.5% of max range
Relative fluctuation Within: 1%
Configuration: Main machine body, software, communication cable, power cable, 1600g pendulum
Augmenting weights: 5 pieces( 110g、220g、440g、870g、1740g)
Calibration checkweights: 6 pieces(110g、220g、440g、870g、1740g、3470g)
3. Product features
It meets the national standard, and up to standards ISO、ASTM
Computer controlled, Windows operation and professional software support.
Test data was controlled by computer.
Tear force range can select quickly, test is easy to practice.
Data acquisition with high-speed, accurate and precise.
User-friendly.
Various pendulum to choose.
4. Standards
ISO 6383、ISO 1974、GB 11999、GB/T 455.1、GB/T 455.2、ASTM D1922、ASTM D1424、TAPPI T414.
