Features

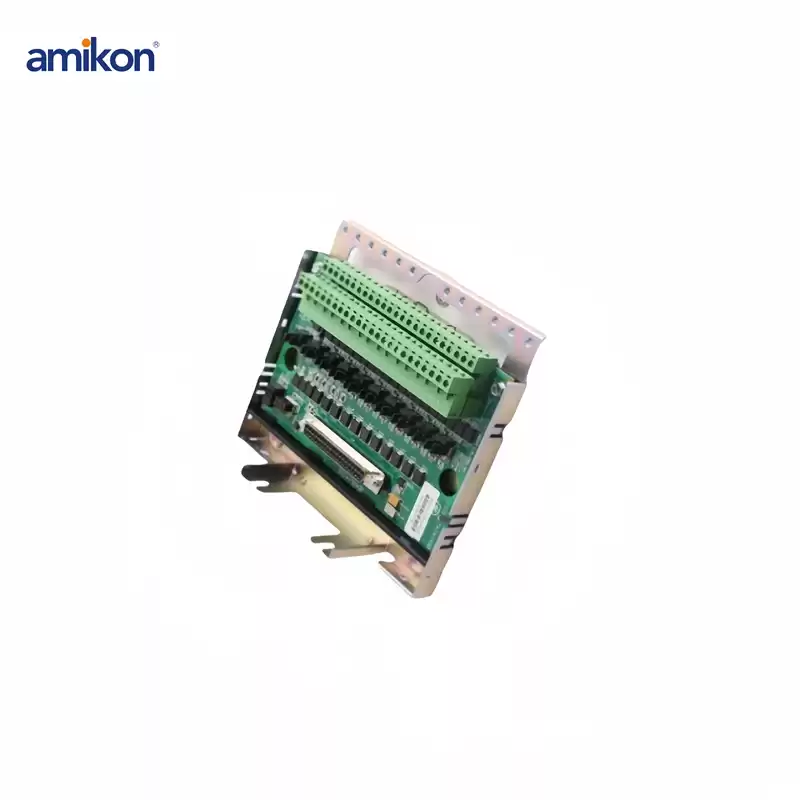

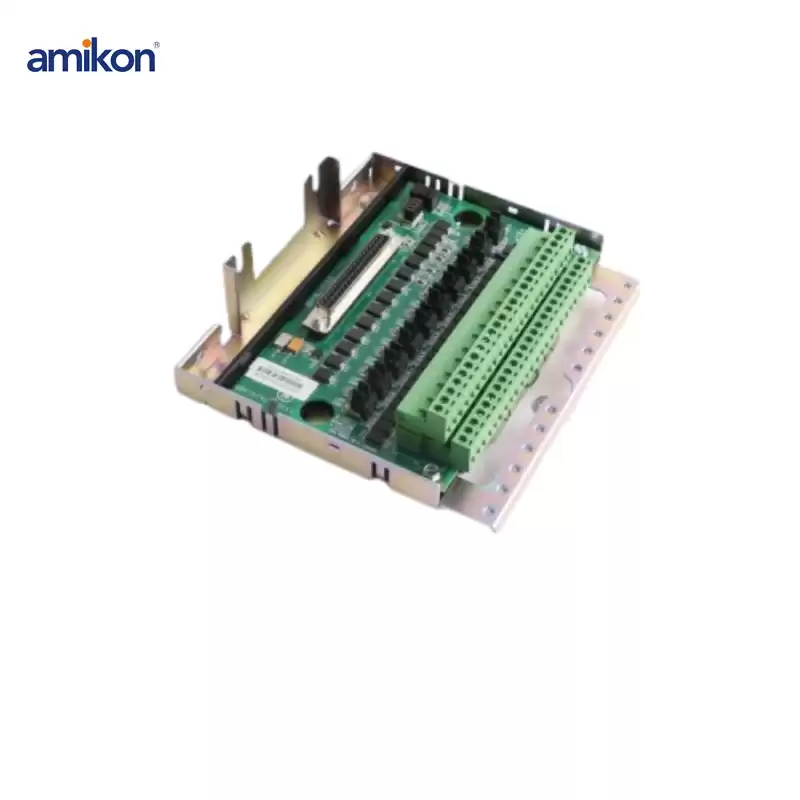

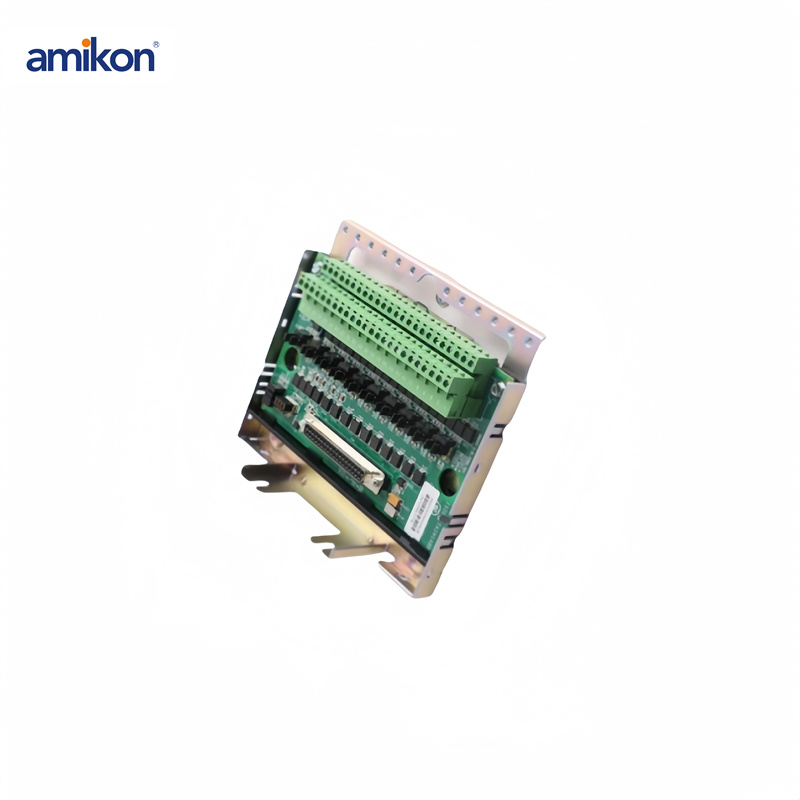

The IS200STAIH2A is a Simplex analog input terminal board manufactured and designed by General Electric as part of the Mark VIe family used in distributed control systems. The Simplex Analog Input (STAI) terminal board is a small analog input terminal board attached to the package that supports 10 analog inputs and 2 analog outputs. Two wire, three wire, four wire or transmitter with external power supply can be connected to 10 analog inputs. Two 0-20 mA 0-20 mA jumpers can be configured with analog outputs available, one of which supports 0-200 mA currents. The board is only available in one sided form. Terminal block adopts high-density European terminal block. The board is identified to the packet by the system diagnostics by the onboard ID chip.

Stain installation

The metal plate carrier mounted on the DIN rail carries the STAI along with the plastic insulator. STAI + insulators can optionally be mounted to a metal plate assembly before being fixed directly to the cabinet. There are two different varieties of European terminals to choose from:

There is a permanently installed terminal block on stai1 with 48 terminals.
The right Angle head on the STAI 2 accepts a variety of pluggable terminal blocks that are easy to access, with a total of 48 terminals.
Shielded twisted pair (#18 AWG) is usually used. There is an available I/O cable shielding terminal next to the terminal block.
The following analog input and output types can be accepted:

Two-wire transmitter with analog input.
Three-wire transmitter with analog input.
Four-wire transmitter with analog input.
Externally powered transmitter with analog input.
Analog input, 5 and 10 volts DC.
0-20 mA current analog output.
Analog output, current 0-200ma.
