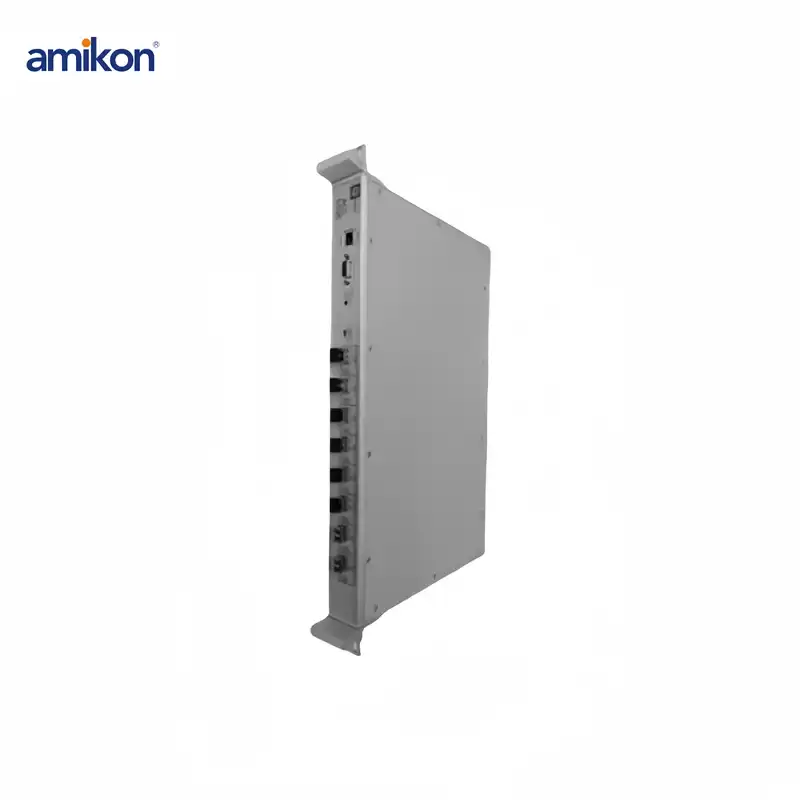

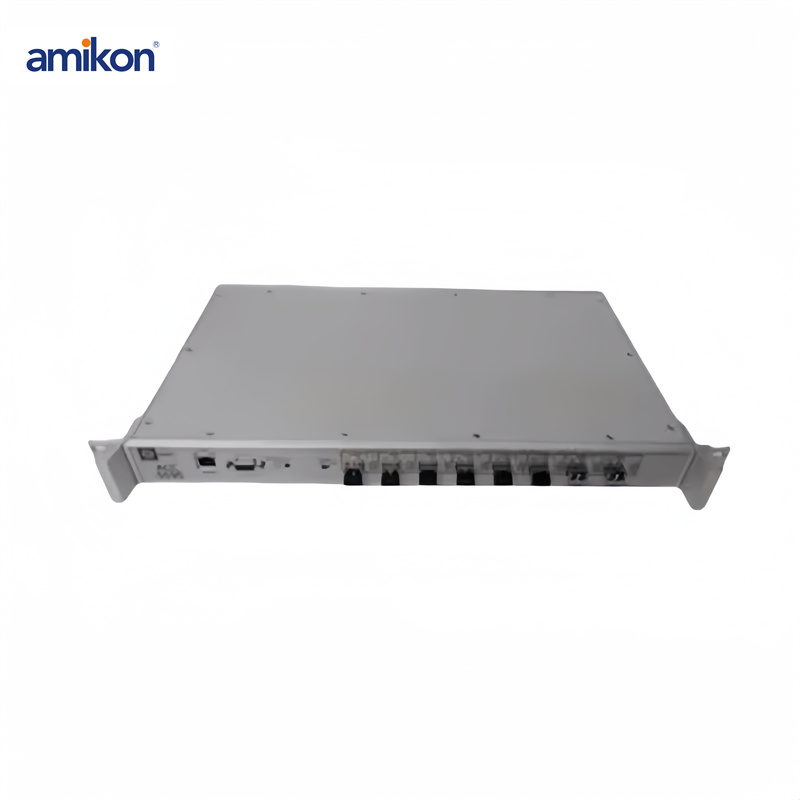

GE VMIACC-5595-208 Memory Hub Assembly
|
Model Number
|
VMIACC-5595-208
|
Weight:
|
0.28 kg
|
|
Brand Name
|
GE
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
30.5x9x3.5cm
|
Features
• For use with GE Intelligent Platforms 5565
Reflective Memory network of products.
• Provides up to eight ports using small form
factor pluggable (SFP) transceivers.
• Hub assemblies can be cascaded with a
maximum of 256 nodes.
• Automatically bypasses defective or discon
nected nodes in a fiber-optic network.
• Automatic bypass can be optionally
controlled by the loss of signal or by the
loss of sync pattern.
• Each port regenerates the serial optical
signal, eliminating link losses and reduc
ing jitter.
• Configurable for use with cables up to
10 km in length.
• 10BaseT Ethernet TCP/IP port for remote
access and control.
• RS232 port for local access and control.
• Optional 19 - inch 1U rack mount or
desktop enclosure.
• Internal universal power supply.
• Dark on Dark option turns off the board’s
transmitter if the receiver does not detect
a signal (available for firmware versions
02.00 and later).
Power Requirements
• 90 to 264VAC
• 47 to 440Hz
• 25W.Power supply and power entry module meet
safety standards:
UL, C-UL: UL 1950 TUV: EN69050
CE: EN55022, EN61000-4-2, 3, 4, 5; EN61000-3-2
Environmental
• Temperature
- Operating: 0° to +65°C
- Storage: -40° to +85°C
• Relative Humidity
- Operating: 20% to 80%, noncondensing
- Storage: 20% to 80%, noncondensing
