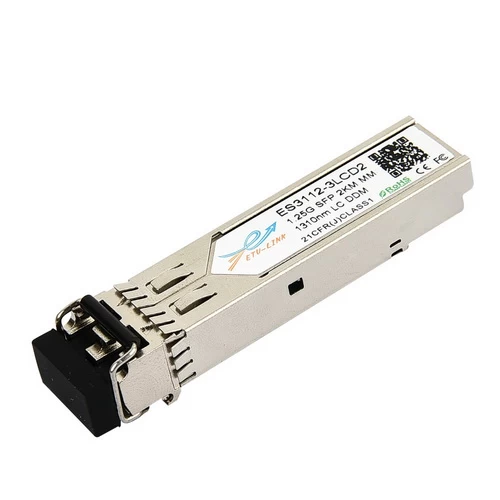

ES3112-3LCD2
GE-100FX Spring-Latch SFP Transceiver, 2km Reach
Features
Ø Build-in PHY supporting SGMII Interface
Ø 100BASE-LX operation
Ø 1310nm FP laser and PIN photo-detector
Ø 10km transmission with SMF
Ø Standard serial ID information Compatible with SFP MSA
Ø SFP MSA package with duplex LC connector
Ø With Spring-Latch for high density application
Ø Very low EMI and excellent ESD protection
Ø +3.3V single power supply
Ø Operating case temperature: 0 to +70°C
Applications
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Standard
Ø Compatible with SFP MSA
Ø Compatible with IEEE 802.3ah-2004
Description
ETU-LINKs ES3112-3LCD2 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), and are designed for SGMII MAC interface to 100BASE-FX (The SGMII MAC Interface implements a modified 1000BASE-X Auto-Negotiation to indicate link, duplex, and peed to the MAC).The transceiver consists of four sections: the standard SFP part with DDM, the PHY part build with SGMII interface, the 1310nm FP laser and the PIN photo-detector The module data link up to 2km in 50/125um multi mode fiber.
