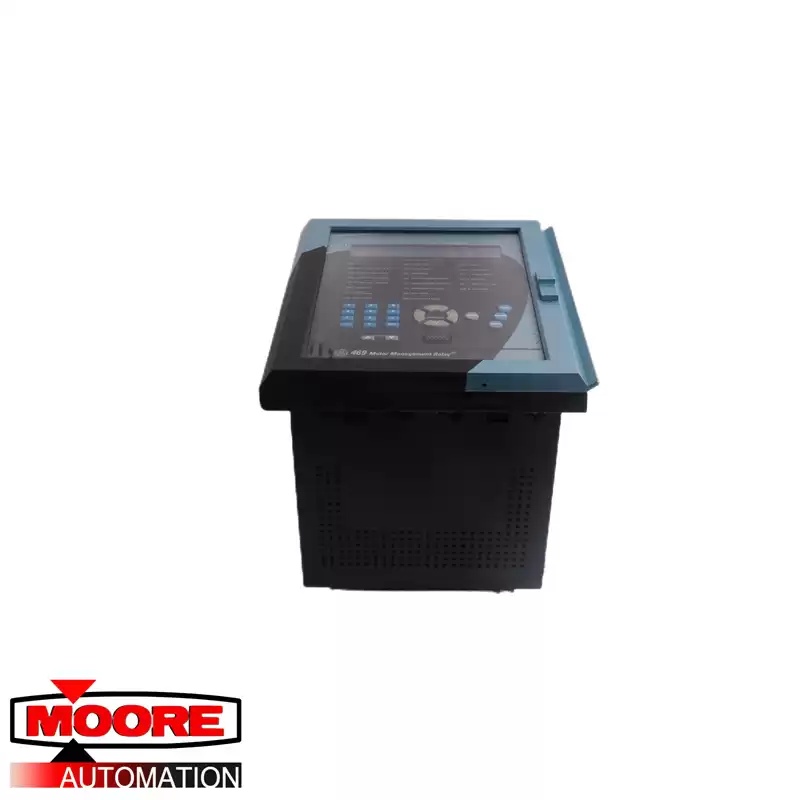

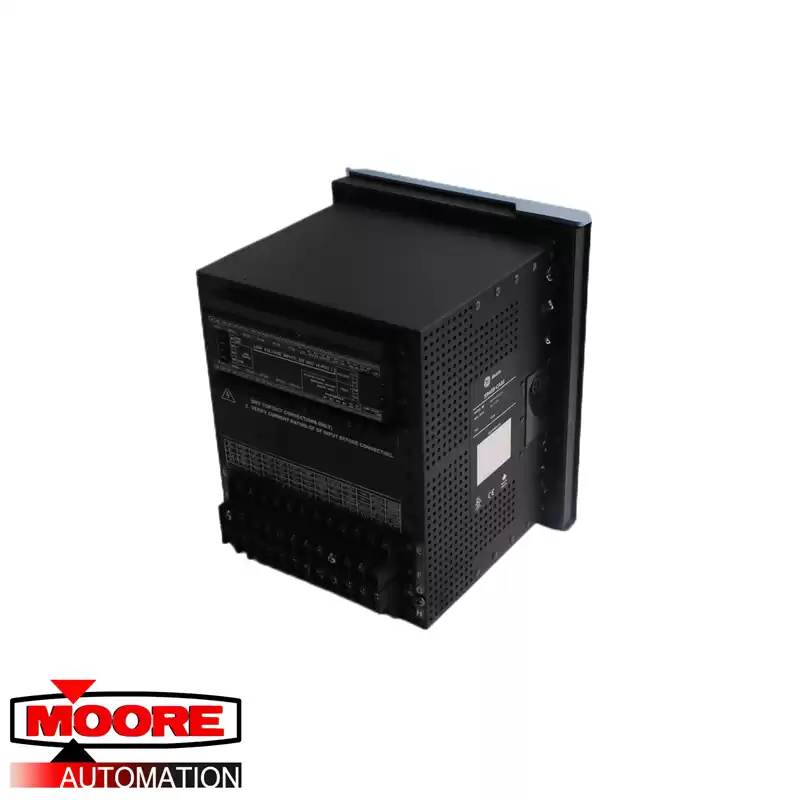

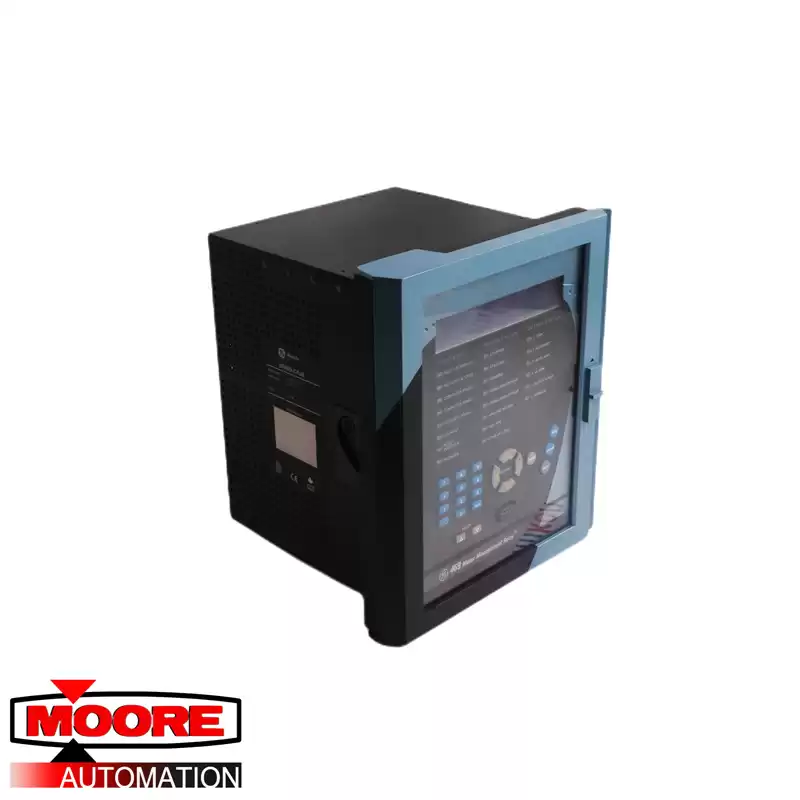

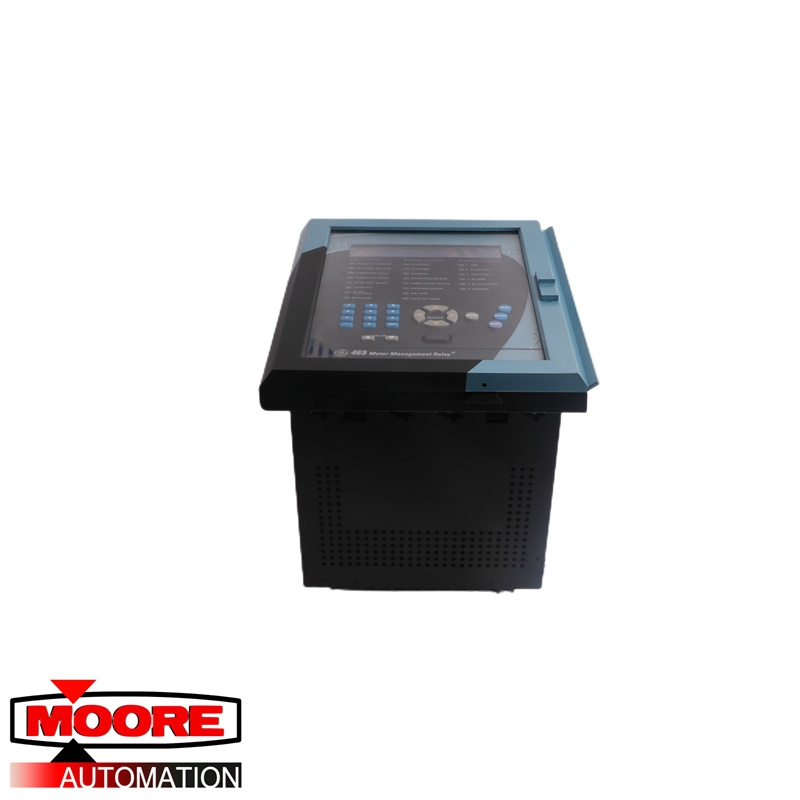

The 469-P5-HI-A20-E-H is a Motor Management Relay from GE Multilin. This unit is a microprocessor-based relay that is used to protect and manage medium and large HP motors and equipment. The 469-P5-HI-A20-E-H is one example of a Multilin motor protection relay available in AX Control stock. Other options are available.
The 469-P5-HI-A20-E-H has six output relays. These are used for start blocks, alarms, or trips. The unit can also handle fault diagnostics, power metering, motor protection, and RTU functions. Diagnostics occur through event records, statistics, trace memory, and pre-trip data.
The 469-P5-HI-A20-E-H is a basic relay unit with 5A phase CT secondaries. The unit is rated for 90-300 VDC or 70-265 VAC @ 48-62 Hz. Outputs are 4-20 mA analog.
