The 531X113PSFARG1 is a board component created by GE as a general purpose drive used in many drive systems across the General Electric catalog. Please review your drive system’s user manual to ascertain whether boards from the 531x series will be compatible.

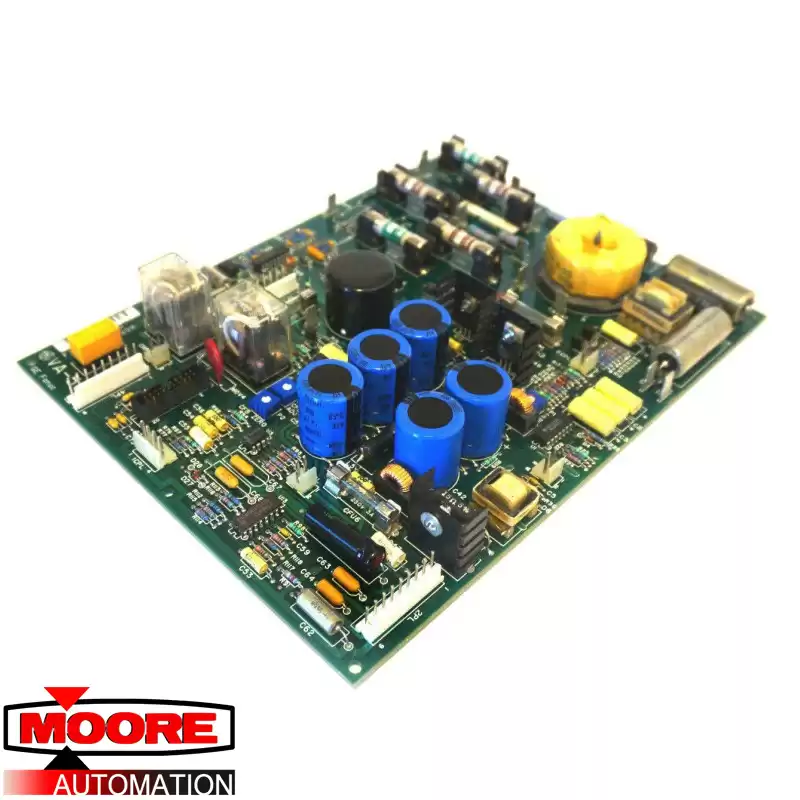

The 531X113PSFARG1 is a Power Supply Interface Card. This is marked with the board number and the manufacturer logo and is marked with several codes including F31x113PSFALG1. The surface of the board is marked “Power Supply Interface Card.”
The 531X113PSFARG1 is populated by six vertical pin (male) cable connectors. The board has six header connectors, including a 2-pin, a 4-pin, two 6-pin, and two 9-pin connectors. There are six potentiometers on the board as well as over ten resistor network arrays. The board has lines of metal film resistors with a few interspersed carbon composite resistors. The board has capacitors made of polyester vinyl and electrolytic material. This includes several large electrolytic capacitors.
The 531X113PSFARG1 has three heat sinks. Several of these connect or back to inductor coils. The board has a total of six inductor coils. The board has three fuses, three relays, transistors, and three LED indicators. The board has multiple integrated circuits and TP test points. Some components are mounted off the surface of the board.
