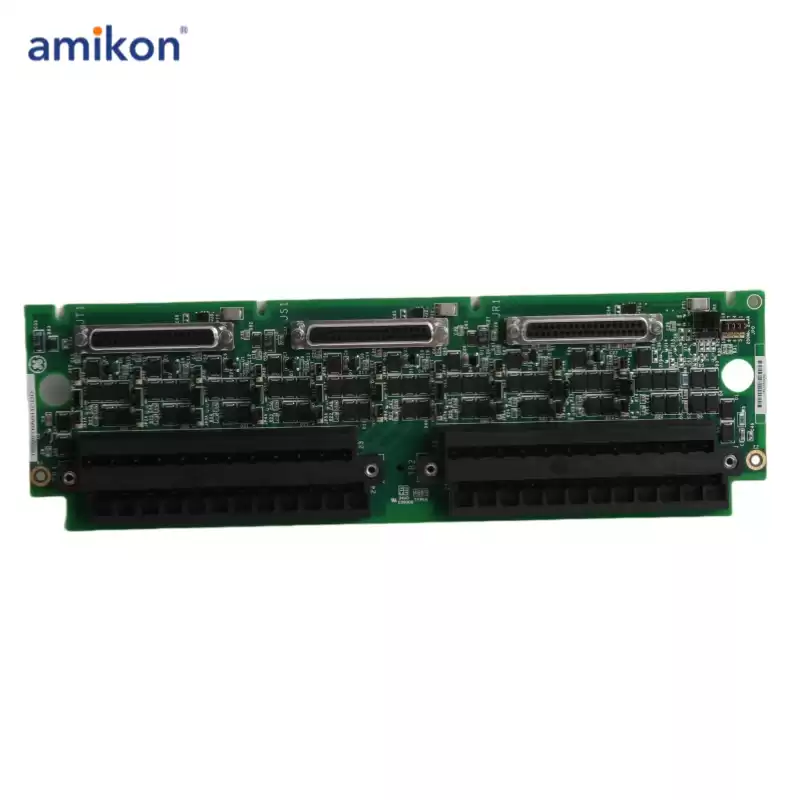

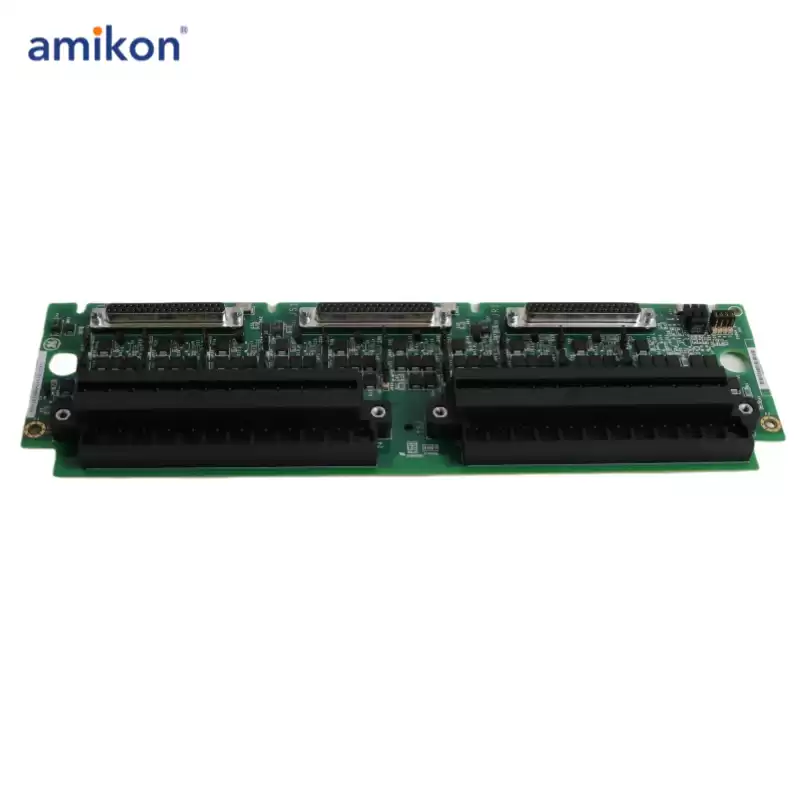

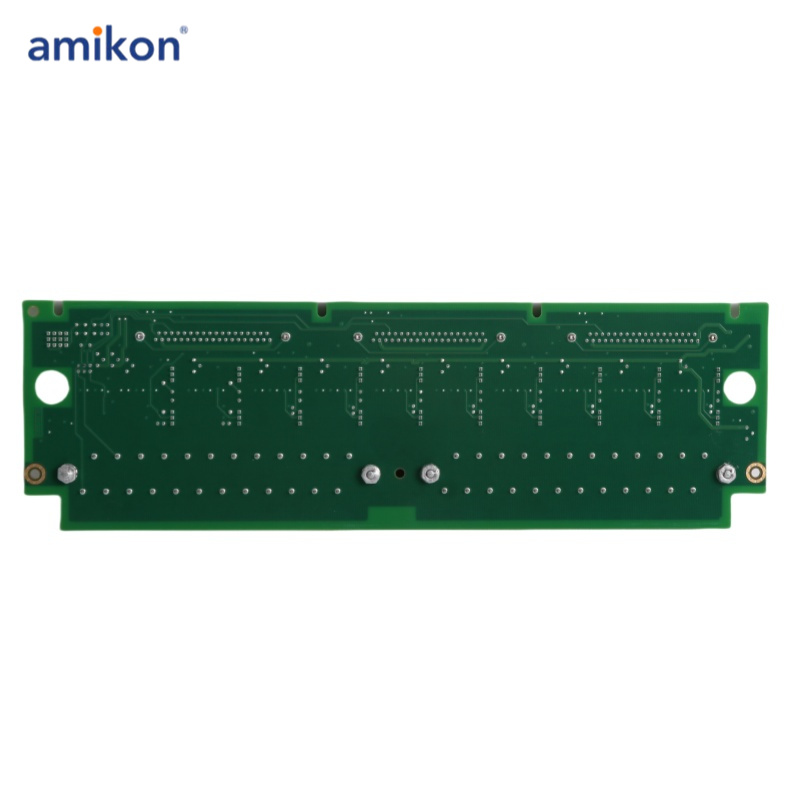

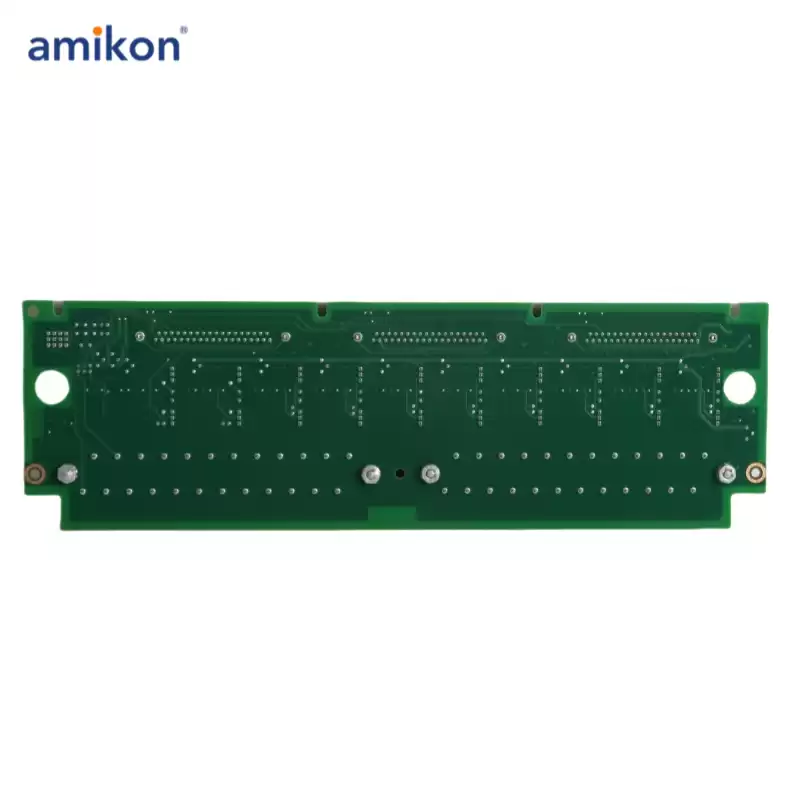

IS200TBAIH1CCC is an analog input terminal board developed by GE. It is a part of Mark VIe control system. The Analog Input Terminal Board is designed to support a total of 10 analog inputs and two outputs, offering a versatile interface for various types of transmitters. These inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters, ensuring flexibility and compatibility across different transmitter configurations. Moreover, the analog outputs can be configured for either 0-20 mA or 0-200 mA current output settings, providing adaptability to diverse operational requirements.
|
Installation
1.The installation process for the Analog Input Terminal Board (TBAI) involves direct wiring of the 10 inputs and two outputs to two I/O terminal blocks mounted on the board. Each block is secured with two screws and features 24 terminals capable of accommodating wires up to #12 AWG. Adjacent to each terminal block, there's a designated shield terminal attachment point, crucial for proper shielding and minimizing interference during operation.
2.The TBAI is designed to support various types of analog inputs and outputs, providing compatibility with different transmitter configurations and voltage specifications. This includes support for two-wire, three-wire, four-wire, and externally powered transmitters, as well as voltage inputs spanning ±5 V or ±10 V DC. Additionally, the analog outputs can be configured for either 0-20 mA or 0-200 mA, ensuring adaptability across a wide range of industrial applications.
3.The I/O terminal blocks, with their secure fastening and multiple terminals capable of handling sizable wires, facilitate stable and efficient connectivity for the inputs and outputs. The adjacent shield terminal attachment points add an extra layer of protection by enabling proper shielding against interference, ensuring reliable signal transmission and integrity within the system.
|
