Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS215UCVDH2A
|
|
Product Type
|
CIRCUIT BOARD
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
Specifications:
Part Number: IS215UCVDH2A
Manufacturer: General Electric
Series: Mark VI
Function: VME Controller
Description:

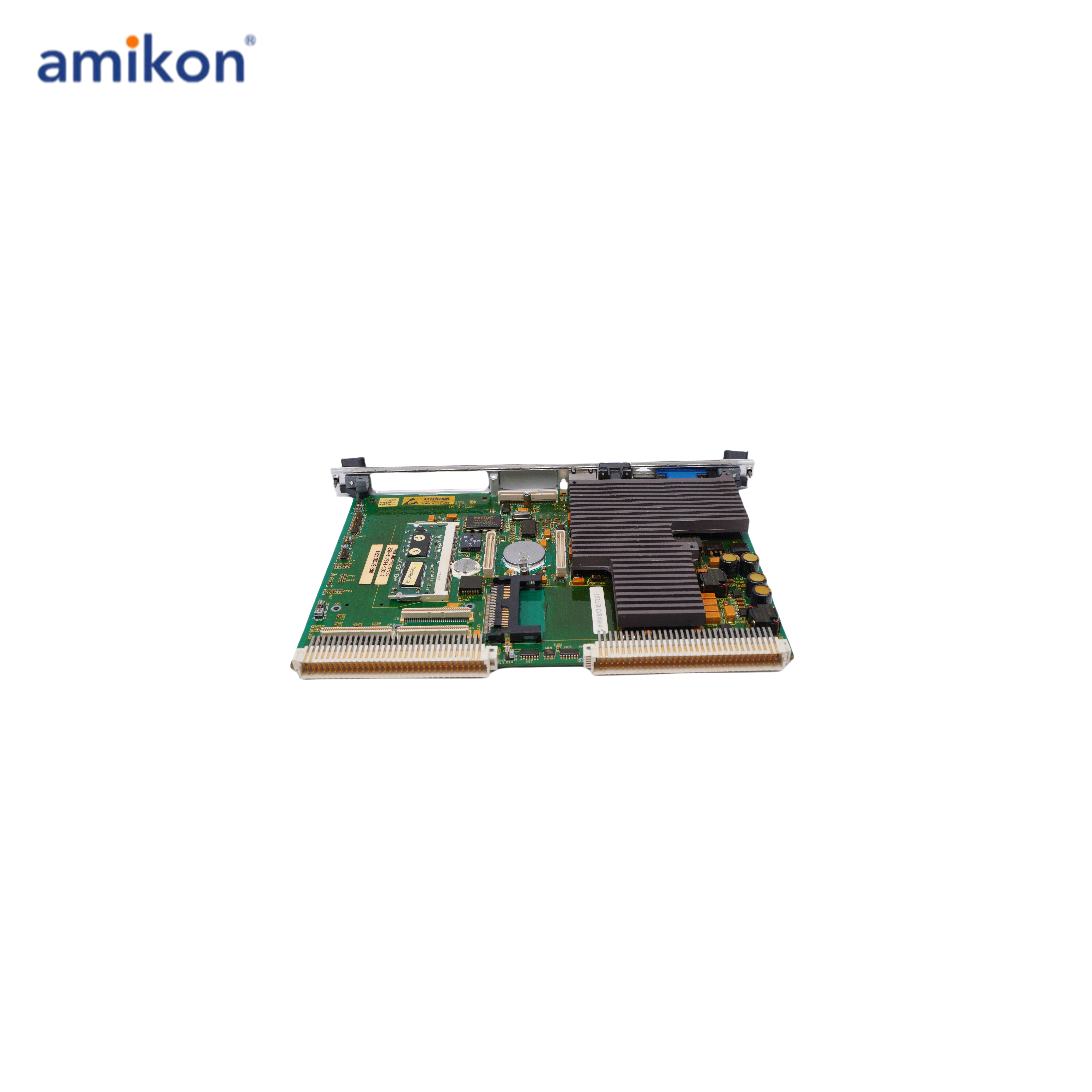

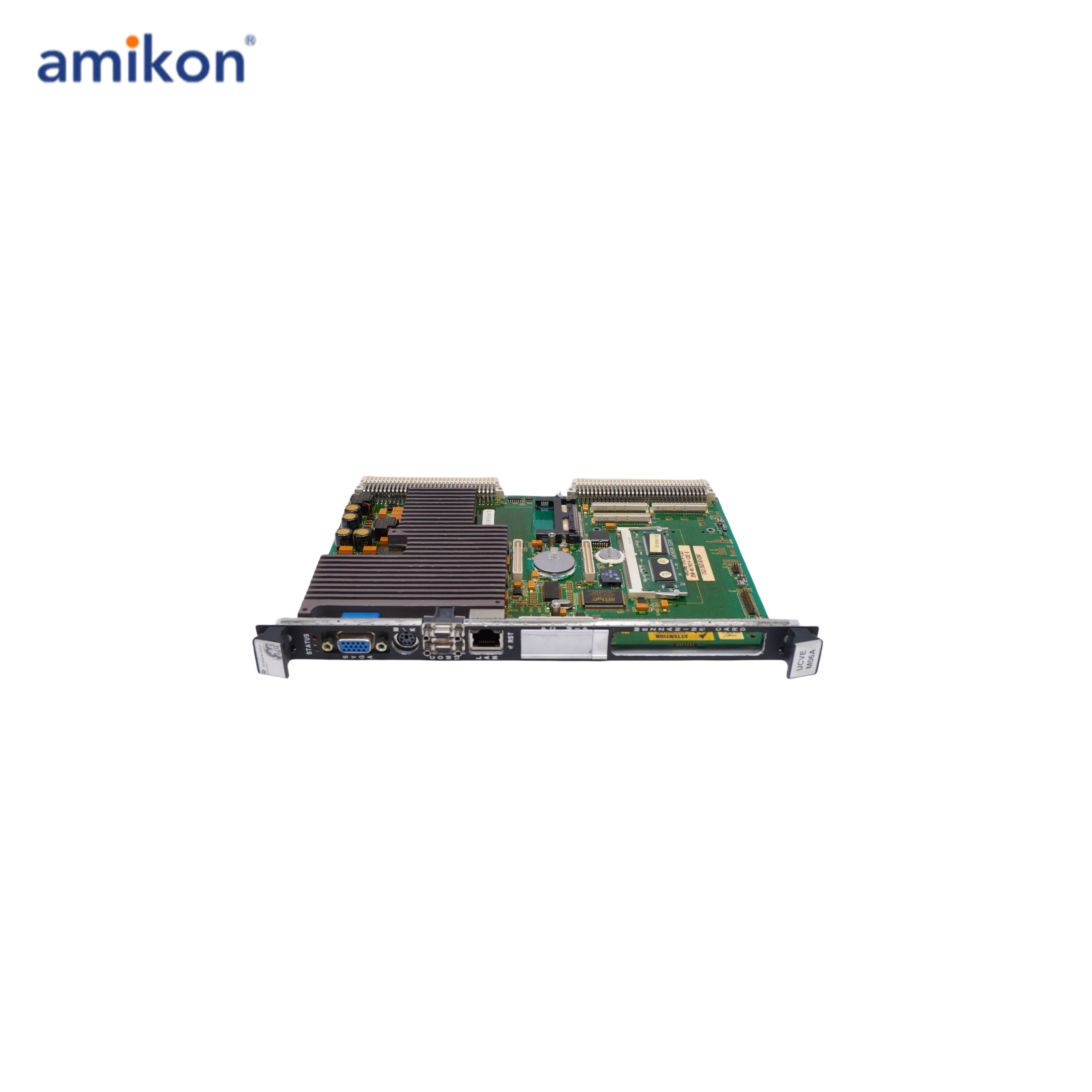

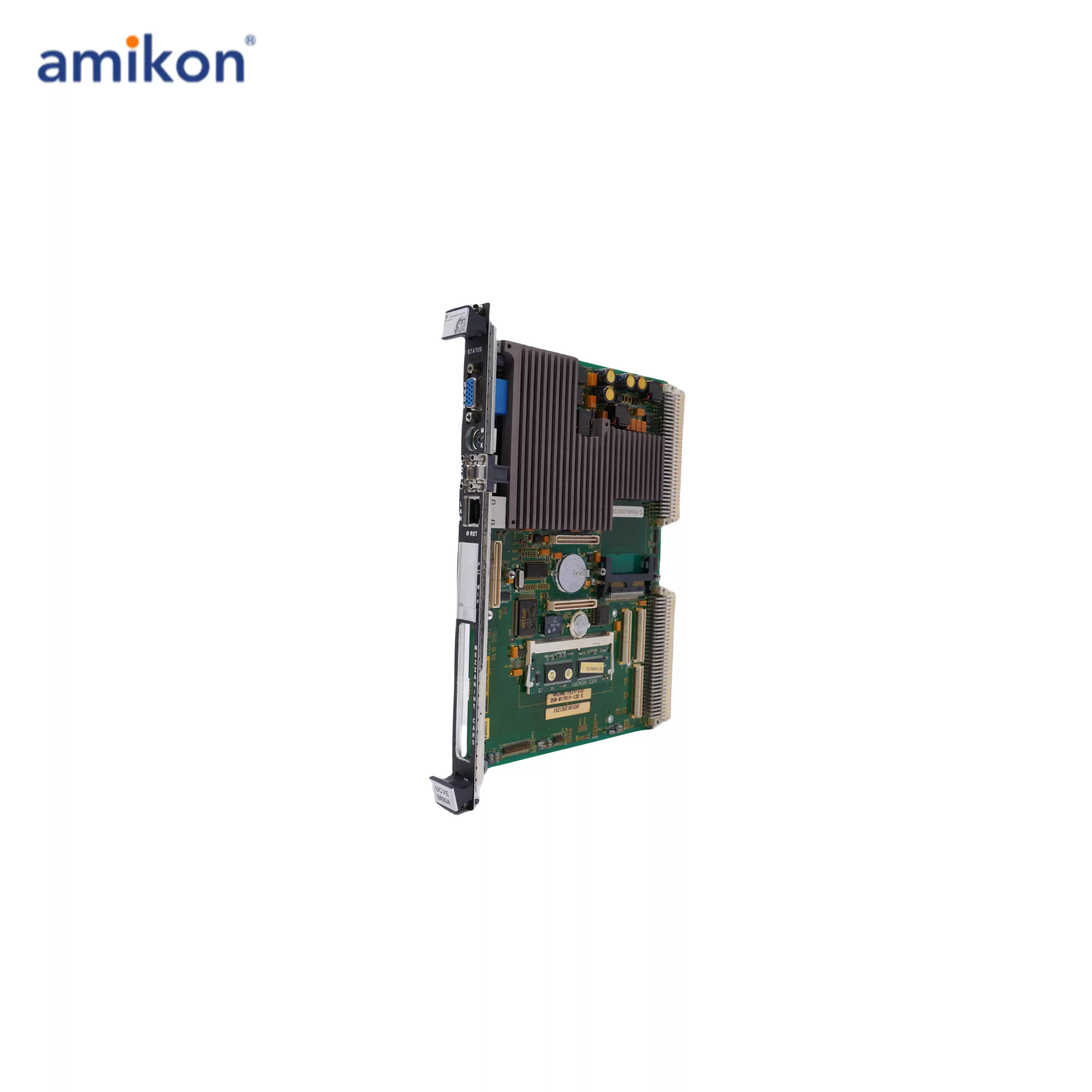

IS215UCVEM01AIS215UCVDH2A is a VME Controller Card that is manufactured by General Electric and designed to operate turbine application code as a part of the Mark VI Series. This controller is mounted in the VME rack of the control module. It uses the VME bus to communicate with the turbine I/O board. This board comes in five different versions, the UCVD being one of them. The front faceplate of the IS215UCVDH2A has a lot of components installed on it. A UDH Ethernet port, two COM ports, and LPT1 port, a Genius cable plug, a reset switch, and several LED indicators are all included. There are two sets of status LEDs, one with six and the other with eight. The former is a collection of LEDs that serves as a controller and communication system, while the latter displays runtime fault codes related to download difficulties, configuration, or starting. FACTORY WARRANTY MAY NOT APPLY. RADWELL 2-YEAR WARRANTY INCLUDED
---The COM1 port is used to set up the controller for the first time. Serial communications are handled via COM 2. Two ISBus drive LAN connectors, a monitor port, and a Hard Disk port are located on the front faceplate.
---The board is built on the QNX operating system. QNX is a real-time operating system based on Unix that is largely used in industrial applications that require great speed and dependability.
---The VCMI communication board transfers external data from the control system database (CSDB) to and from the board through the VME bus.
Frequently Asked Questions about IS215UCVDH2A：
1. What is IS215UCVDH2A?
IS215UCVDH2A is a universal control module designed for the GE Mark VI control system, providing various control and communication functions.
2. What are the main functions of this module?
This module is used for signal processing, equipment monitoring, and control, supporting various input/output configurations.
3. How is IS215UCVDH2A installed?
Ensure compatibility with the Mark VI control system and follow the manufacturer's installation manual.
