Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS215UCCAM03A
|
|
Product Type
|
Compact PCI Processor Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|
DESCRIPTION：

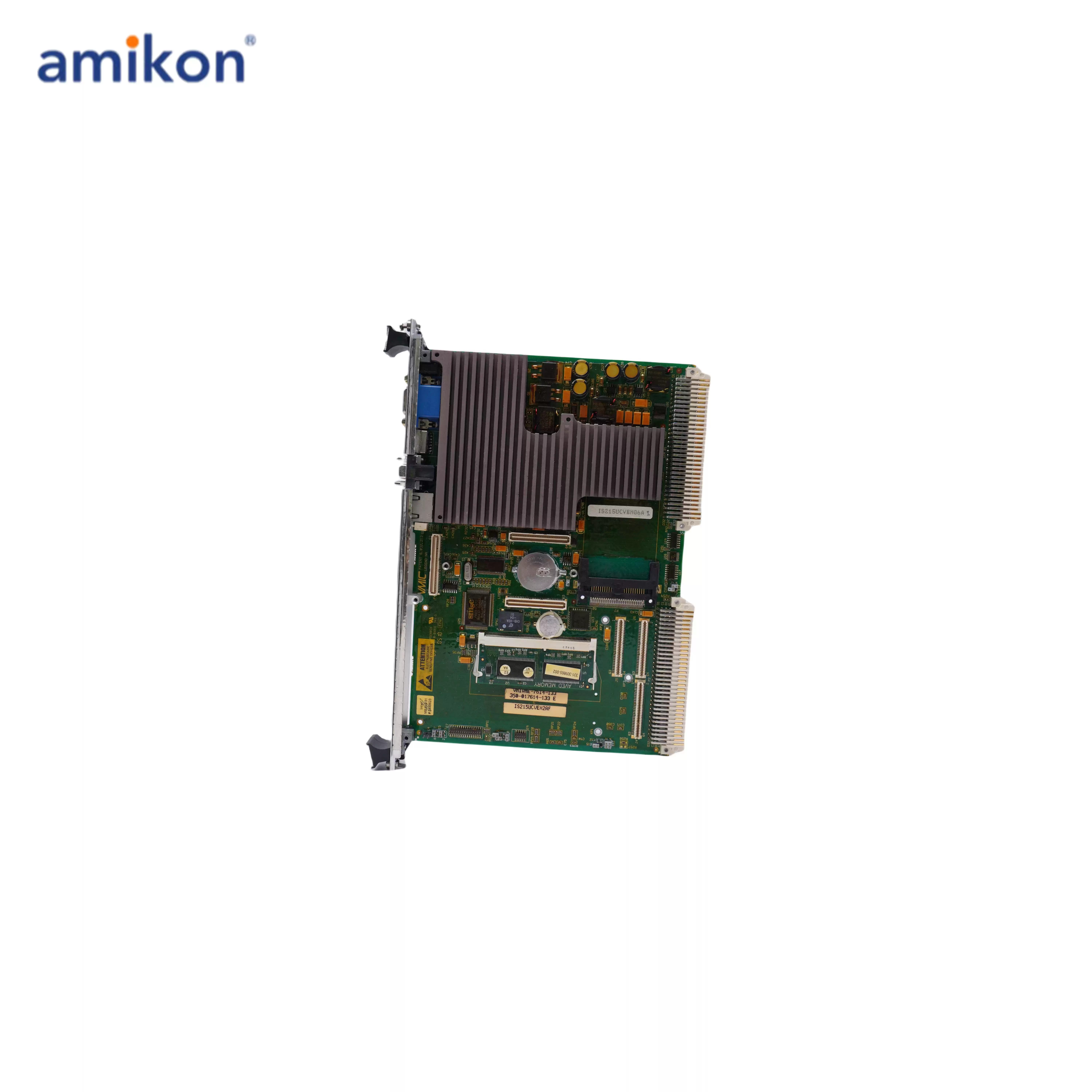

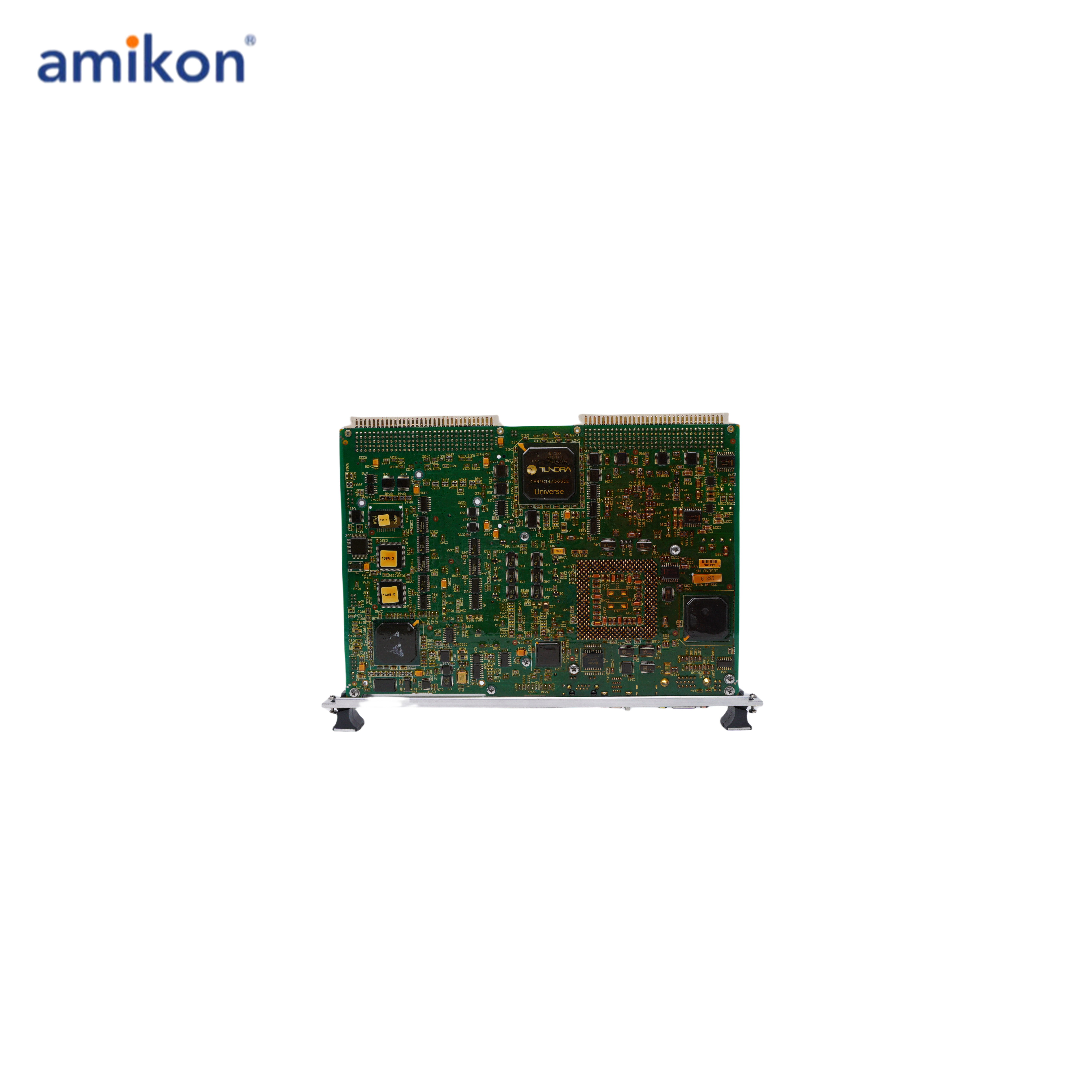

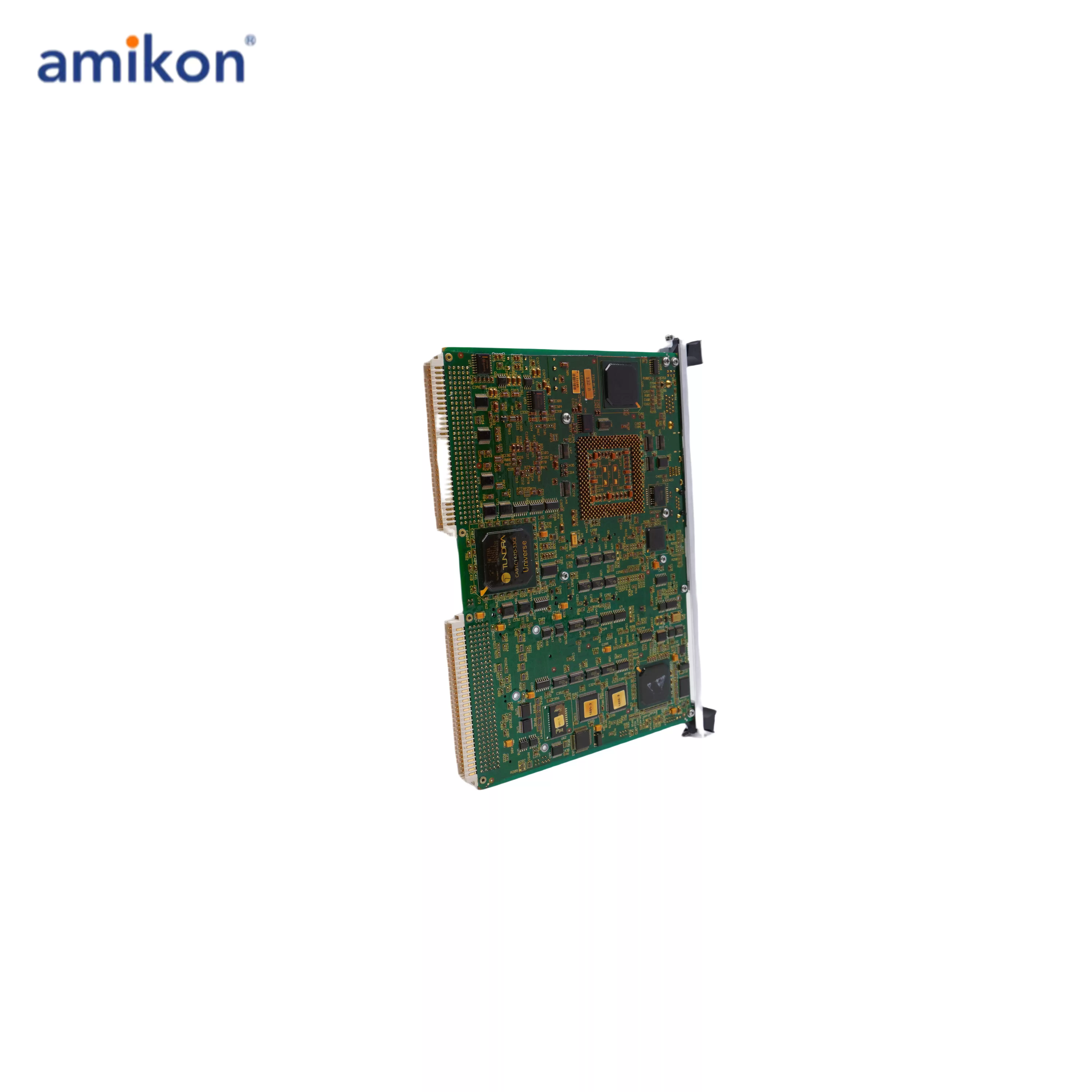

IS215UCCAM03A is a Compact PCI Processor Module manufactured and designed by General Electric as part of the VIe Series used in GE Distributed Control Systems. It is a single-slot board using a 650 MHz Intel Celeron processor. TM A 10BaseT/100BaseTX (RJ-45) Ethernet port provides connectivity to the Unit Data Highway (UDH). There are two PCI Mezzanine Card (PMC) sites and a watchdog timer. The processor board is the compute engine of the Mark VIe controller. The IS215UCCAM03 is a module assembly that includes the IS215UCCAH3 combined with 128 MB of flash memory, 128 MB of DRAM, and the IS200EPMC. Five communication ports provide links to I/O, operator, and engineering interfaces as follows:
--Ethernet connection for the Unit Data Highway (UDH) for communication with HMIs, and other control equipment
--Ethernet connection for the R, S, and T I/O network
--RS-232C connection for setup using the COM1 port
SPECIFICATIONS:
Part Number: IS215UCCAM03A
Manufacturer: General Electric
Series: Mark VIe
Product Type: Compact PCI Processor Module
Microprocessor: Intel Pentium M processor 1.6 GHz
Technology: Surface Mount
Operating System: QNX Neutrino
Programming: 16-bit signed integer
Power Requirements: +5 V dc
Memory: 256 MB
Common Mode Voltage Range: ±5 V
Dimensions: 11.00 x 9.00 x 3.00
Operating temperature: 0 to 60 °C
Primary Ethernet Interface: 10BaseT/100BaseTX
No.of Analog Voltage Inputs: 6
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEH-6721L
