Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IS230PCAAH1B
|
|
Product Type
|
Core Analog I/O Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

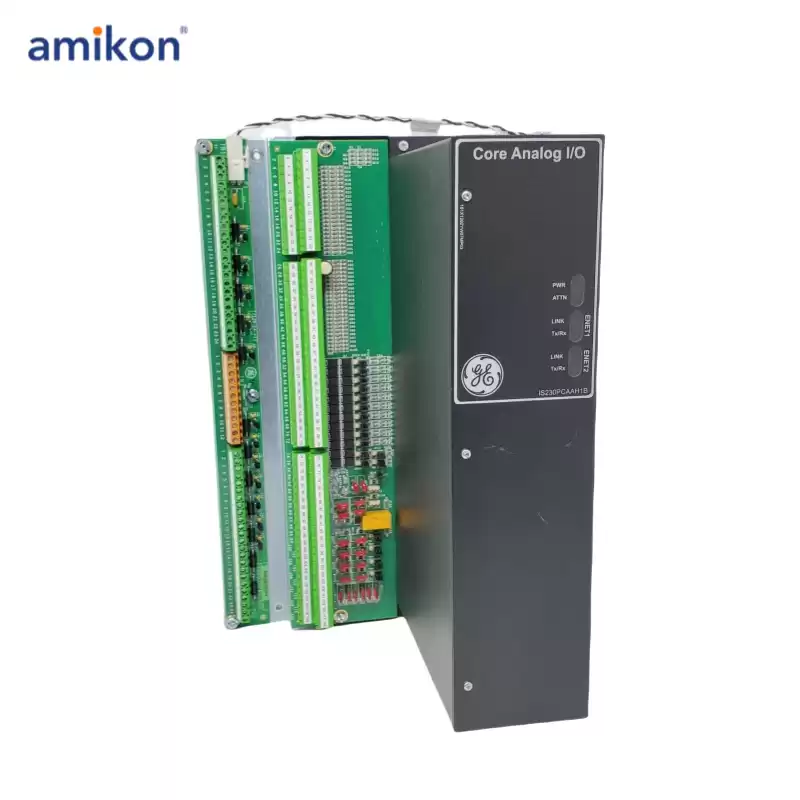

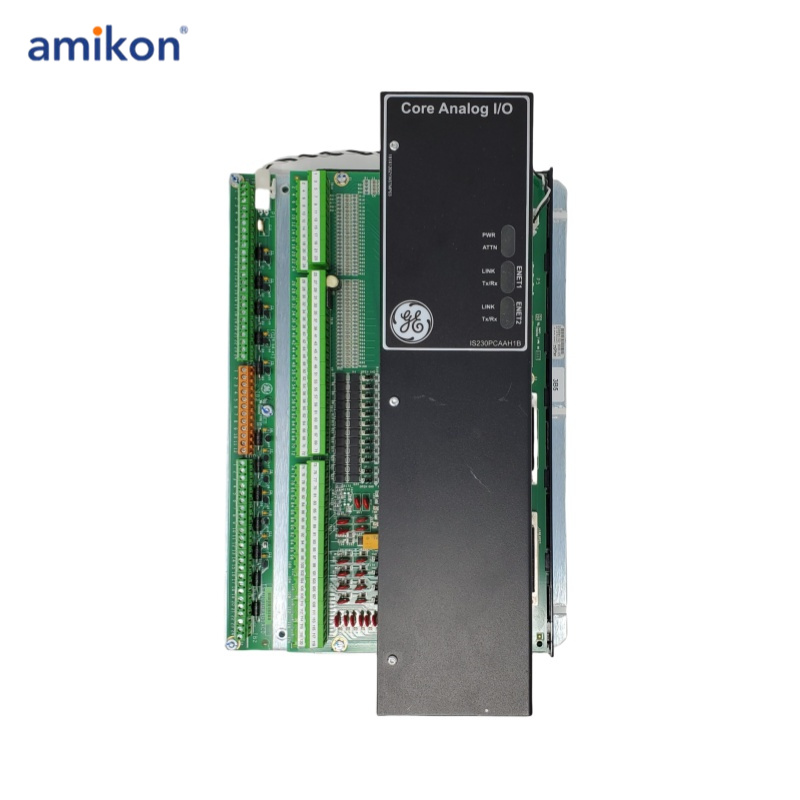

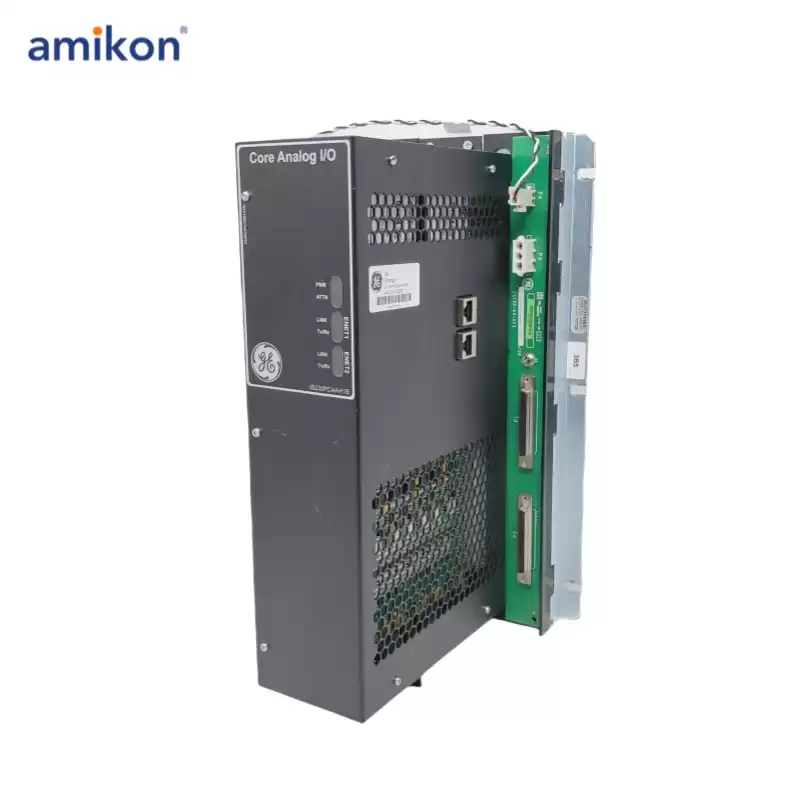

IS230PCAAH1B is a Core Analog I/O Module manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. A sizable amount of the analog signal I/O needed to run a gas turbine is provided by the Core Analog (PCAA) module and related Core Analog (TCAS and TCAT) terminal board. Thermocouple, 4-20 mA current loop, seismic, linear variable differential transformer (LVDT) excitation and inputs, pulse rate, and servo coil outputs are all provided by PCAA and TCAT. In simplex, dual, and TMR systems, PCAA is applicable. To one, two, or three linked PCAA modules, a single TCAT terminal board fans signal inputs. In addition to the terminals on PCAA and TCAT, a nearby JGPA board also has shield ground and 24 V field power connectors.
SPECIFICATIONS:
Part Number: IS230PCAAH1B
Manufacturer: General Electric
Series: Mark VIe
Product Type: I/O Module
Number of Inputs: 25
Number of Outputs: 4-20 mA
Analog 0-10 V DC Inputs: ±0.50%
LVDT Excitation Monitor Input: ±1.00%
Servo Driver Output: ±3.50%
Power Supply Input Voltage: 28Vdc±5%
Size: 33.02cm high x17.8 cm wide
Technology: Surface-Mount
Operating Temperature: -30 to 65oC
Availability: In Stock
