Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IC694DNM200
|
|
Product Type
|
DeviceNet Master Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

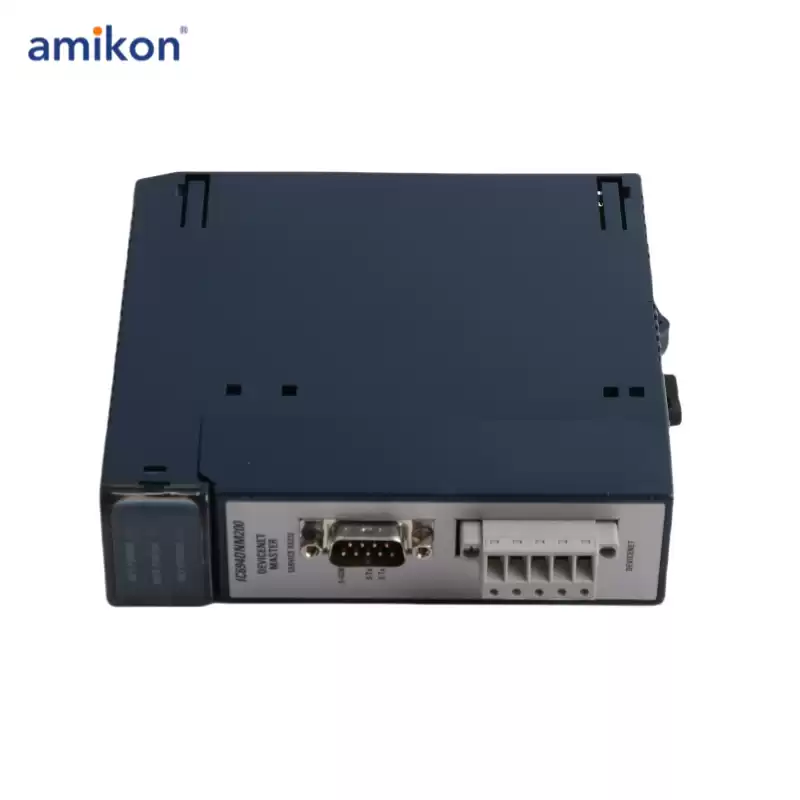

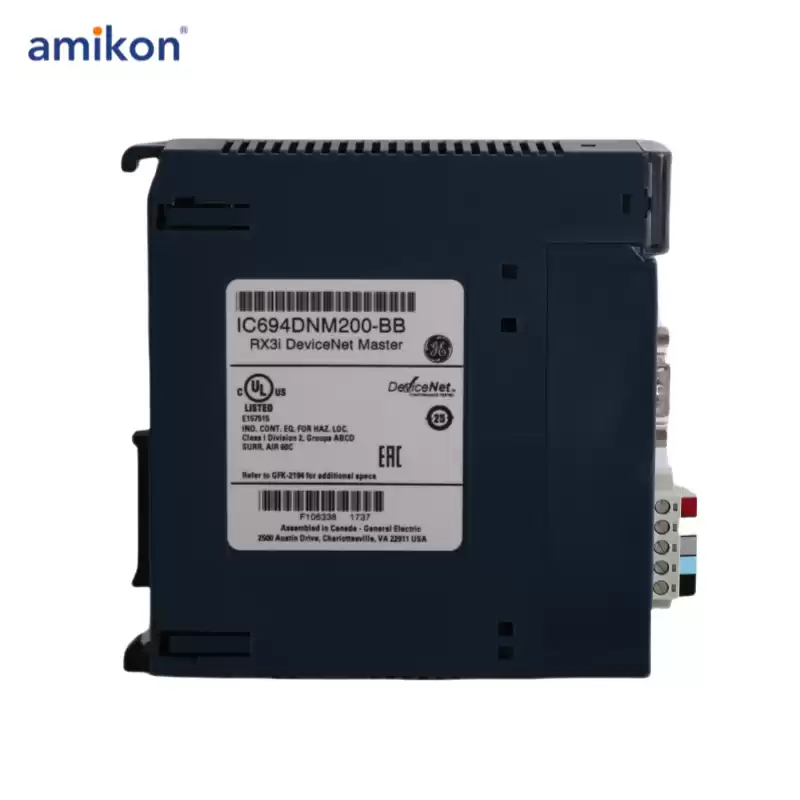

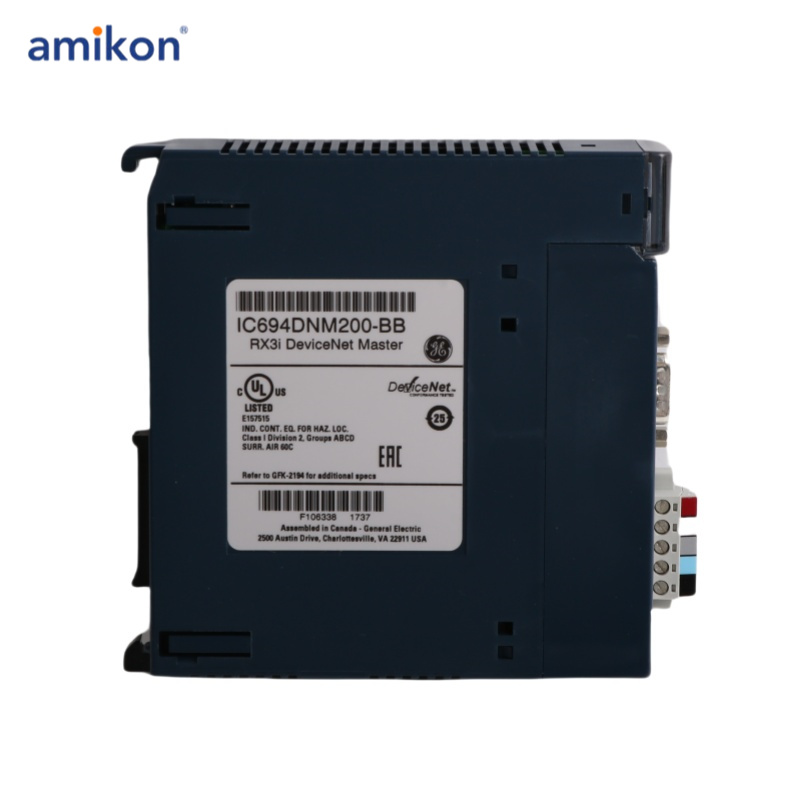

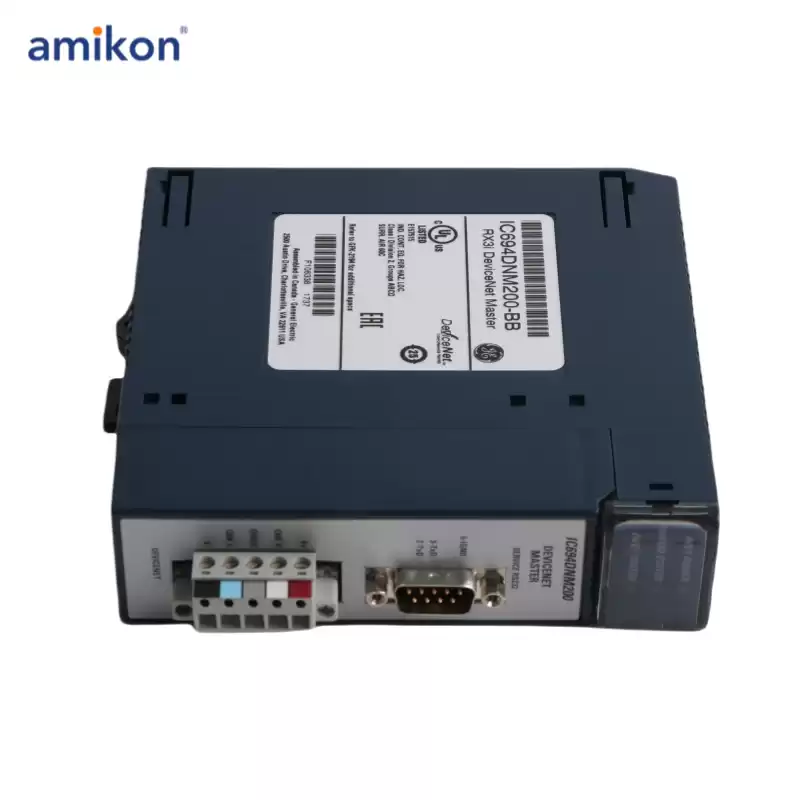

The IC694DNM200 is a DeviceNet Master module. This module is an option communication module that is part of the PACSystem RX3i Programmable Automation Controller (PAC) platform. It is installed to any vacant slot of an RX3i baseplate at enables communication to the DevieNet network. Being a master DeviceNet master module, this module is used to communication to DeviceNet, supporting up to 63 DeviceNet slaves. With the use of the IC694DNM200, Distributed I/O architecture can be implemented. Up to 63 I/O stations can be configured with each station exchanging information at configurable speeds of 125k, 250k, or 500k baud and with maximum data that be exchanged amounting to 255 Bytes of input and 255 Bytes of output for every slave device. In addition, each master module is capable of communicating up to maximum of 3972 bytes of input data and 3972 bytes of output data.
|
Attribute
|
Specification
|
|
Part Number
|
IC694DNM200
|
|
Series
|
PACSystem RX3i
|
|
Product Description
|
DeviceNet Master Module
|
|
Communication Interface
|
One (1) RS232 Service port; One (1) DeviceNet Master Port
|
|
Product Type
|
DeviceNet Master Module
|
|
Communication Protocol
|
DeviceNet
|
|
Maximum Number of Slave Devices Supported
|
63
|
|
Number of Supported DeviceNet Slaves
|
63
|
|
Slave Operation
|
Supported
|
|
Input Data
|
255 Bytes
|
|
Communication Rates
|
125k, 250k, or 500k bauds
|
|
Output Data
|
255 Bytes
|
