Product Description:

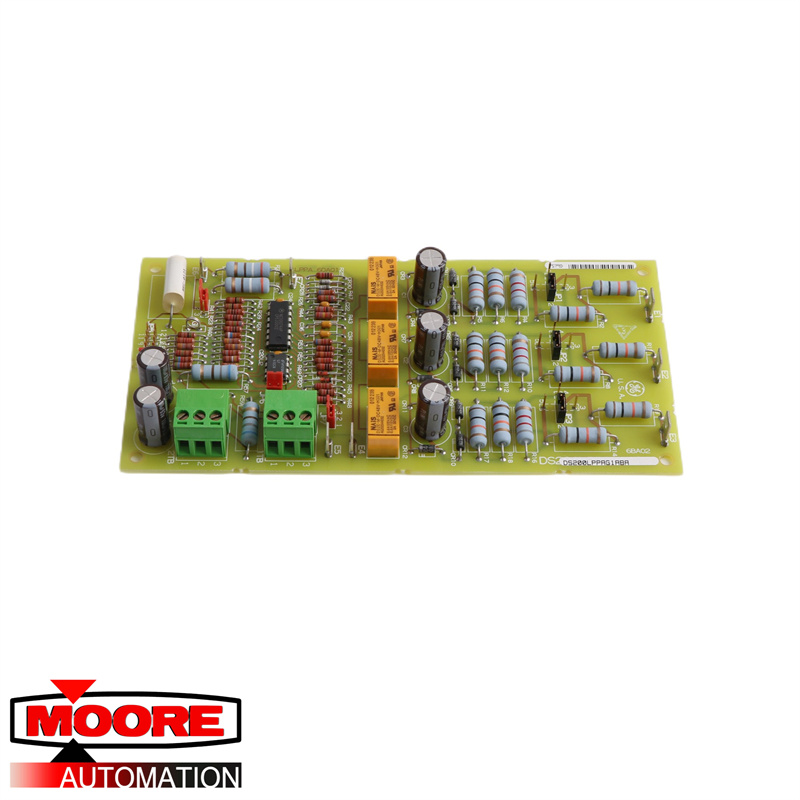

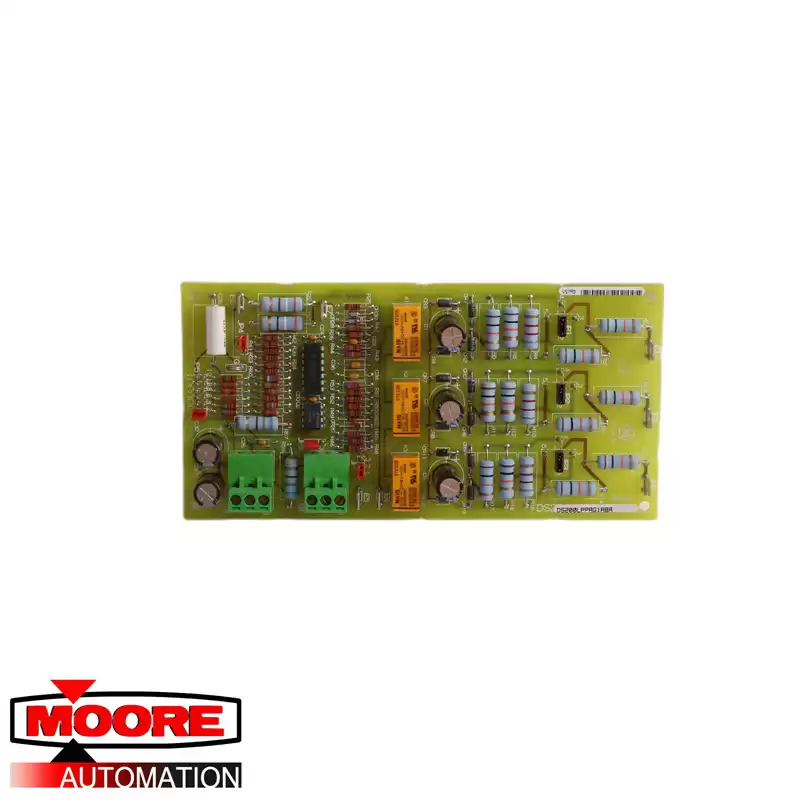

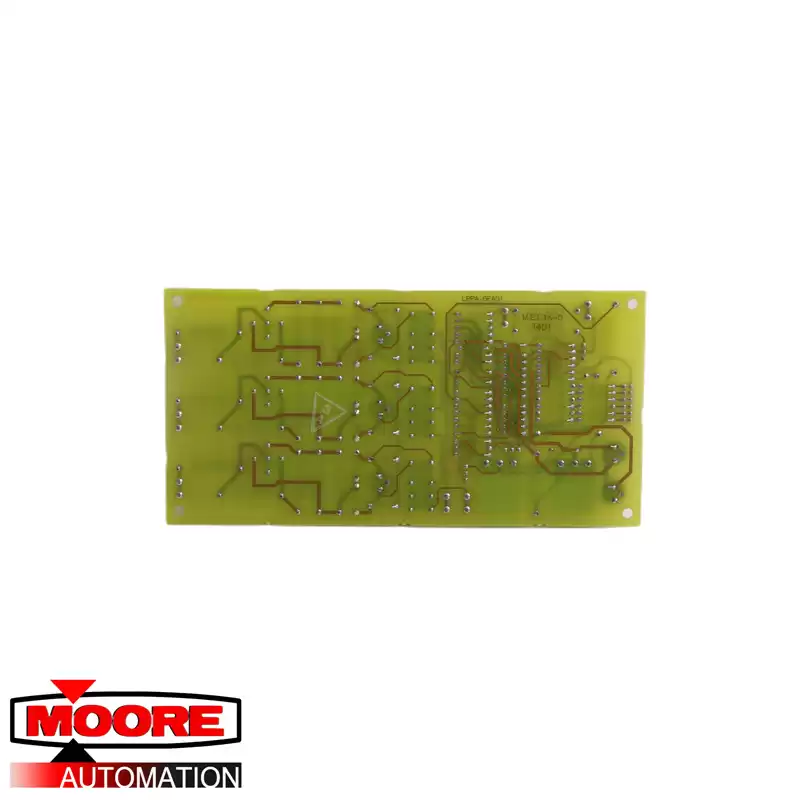

The DS200LPPAG1A is a Line Protection Board designed for use within the GE Mark V Speedtronic system.The GE Line Protection Board DS200LPPAG1A features 7 jumpers and 2 terminal blocks with 3 terminals on each. The jumpers are identified as JP1 through JP7. The GE Line Protection Board DS200LPPAG1A also contains test points. The board is installed on standoffs on another component of the drive.
The signal wires that connect to the board originate on the other component.Disconnect any cables that are connected to the board, including the signal wires connected to the terminals. Note where the signal wires are connected on the terminal blocks. This will make the installation of the replacement board faster and reduces the opportunity for mistakes in connecting the terminals.
