DS2020DACAG2 AC-DC Power Conversion Module

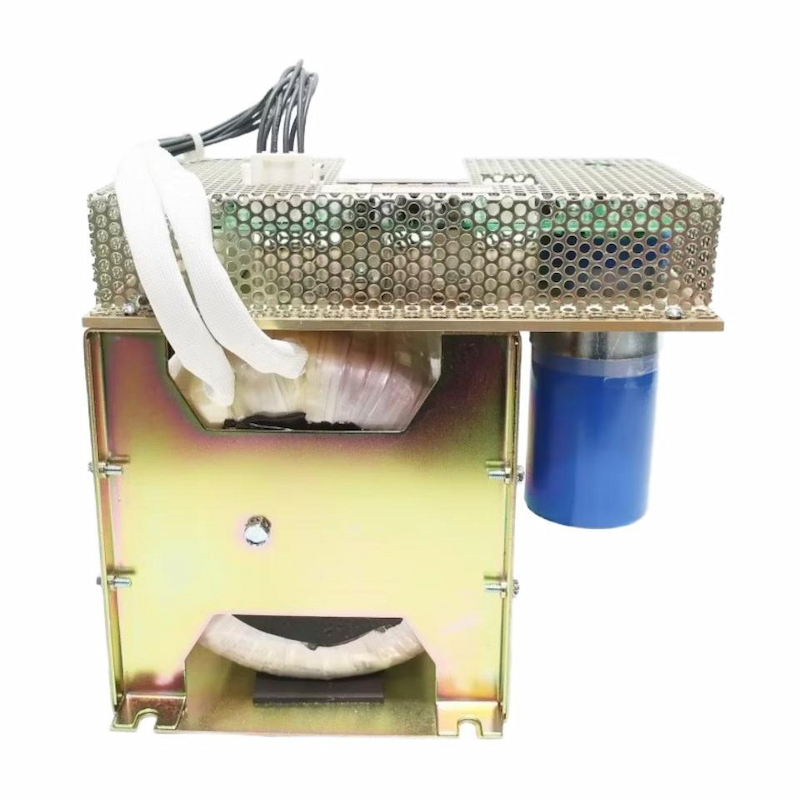

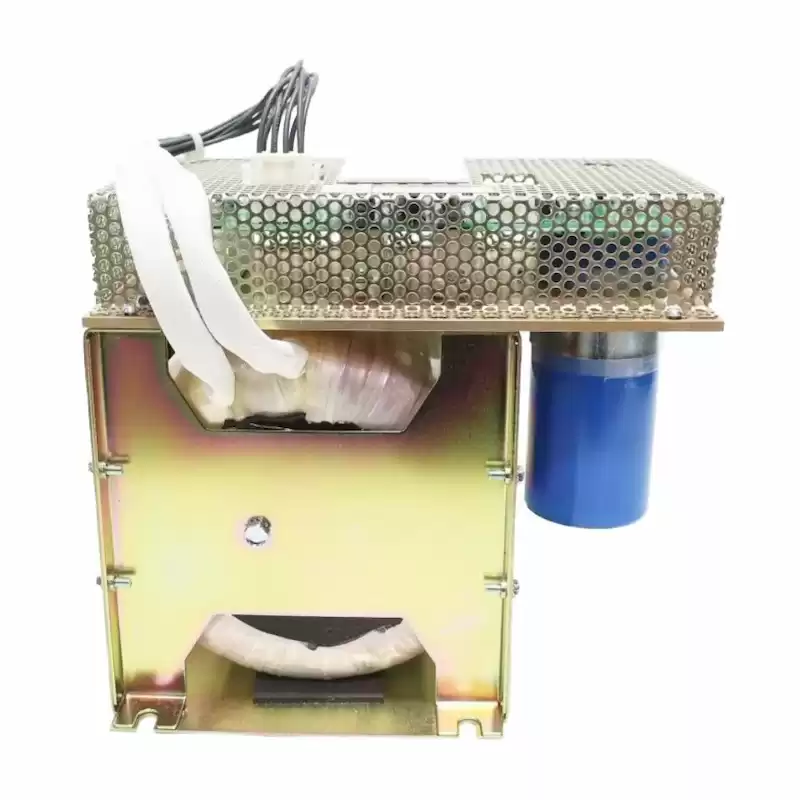

The DS2020DACAG2 is an ac-dc power conversion module, manufactured and designed by General Electric as part of the transformer assembly used in GE EX2100E Series of Excitation Control Systems.

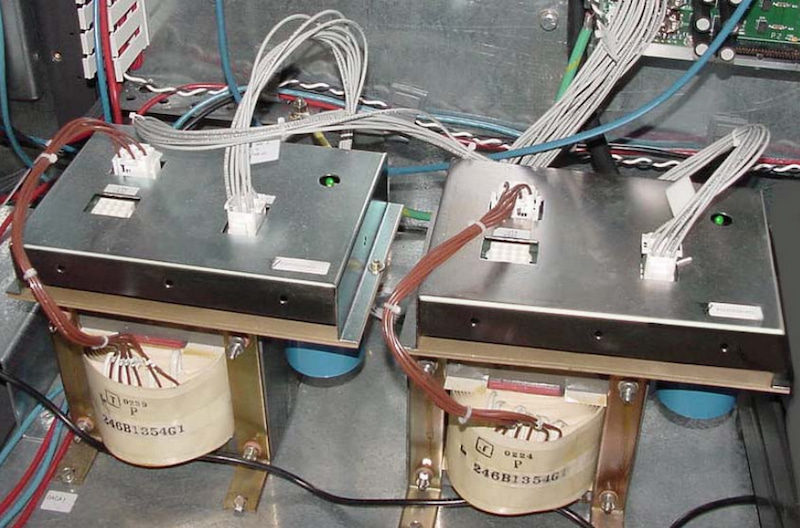

The DACA is an ac to dc converter that is powered by a 115 V ac source and produces 125 V dc. The DACA and battery source provide a redundant 125 V dc supply for the EPDM. Two DACAs can be connected to the EPDM if required for greater power supply reliability, they are mounted at the bottom of the control cabinet.
The DS2020DACAG2 is a drop in replacement for the DS2020DACAG1. It is backward compatible in systems that used the previous version and it should be used as a replacement part for the previous model. The DACA converts 115/230 V ac input power into 125 V dc output power, and the output power rating is approximately 1000 W.
A DACA is used when the primary power source for a control system is 125 V dc with or without a battery. In addition to power conversion, DACA provides additional local energy storage to extend the ride-through time whenever the Mark VIe control has a complete loss of control power.
The DS2020DACAG2 model has a higher power rating than the previous module. Also, this new model can be paralleled for greater output current, where as paralleling was not recommended for the previous model. The DS2020DACAG2 is recommended for all new panel designs.
Installation

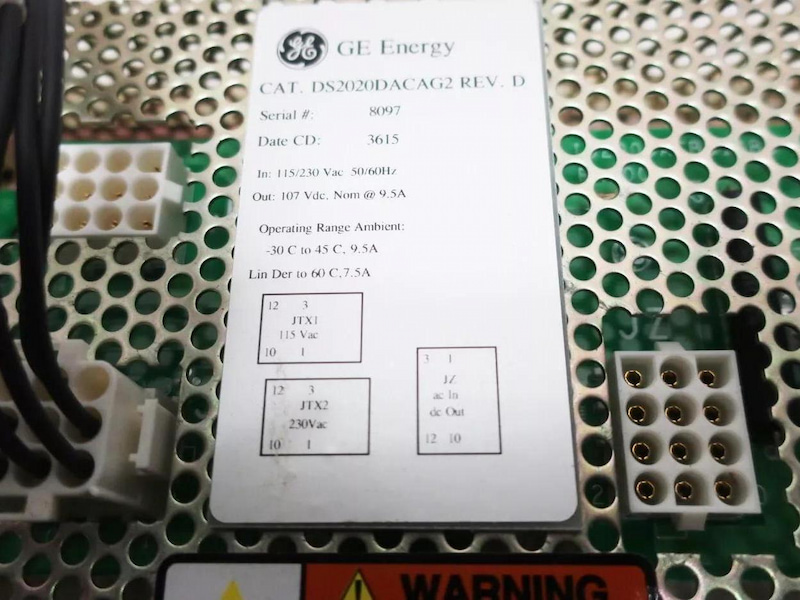

The DACA module has four mounting holes in its base. Ac power input and dc output is through a single 12-position connector JZ that is wired into connector JZ2 or JZ3 of the PDM. Selection of 115 V ac or 230 V ac input is made by plugging the DACA internal cable into connector JTX1 for 115 V or JTX2 for 230 V.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
DS2020DACAG2 |
| Ordering Information |
DS2020DACAG2 |
| Product Catalog |
EX2100E Series |
| Description |
AC-DC Power Conversion Module |
| Voltage |
115 Vdc |
| Current |
1 A |
| Dimensions |
42 cm × 36 cm × 36 cm |
| Weight |
6 kg |
