Product Description:

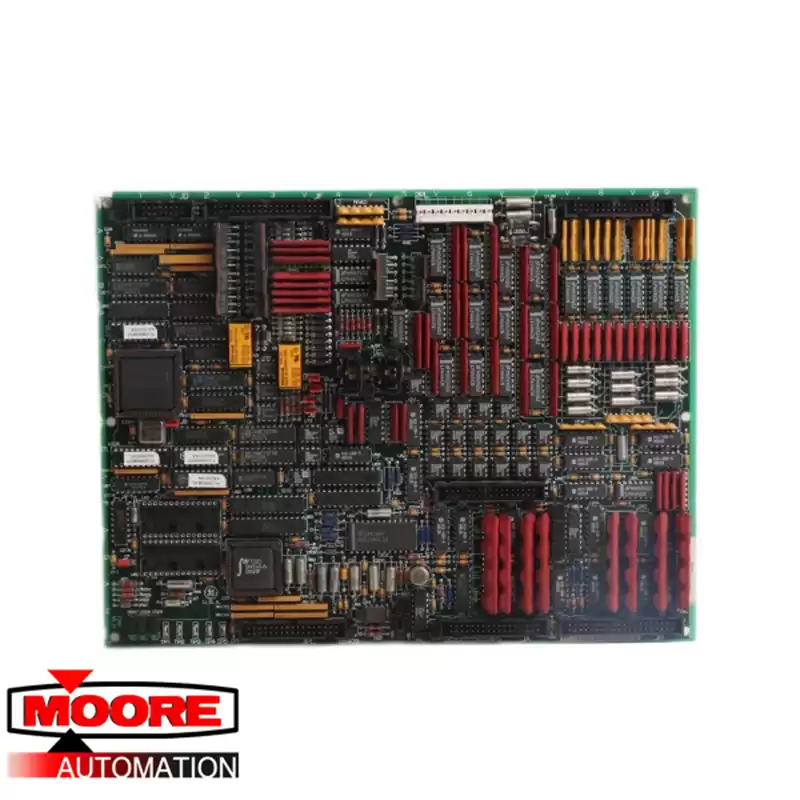

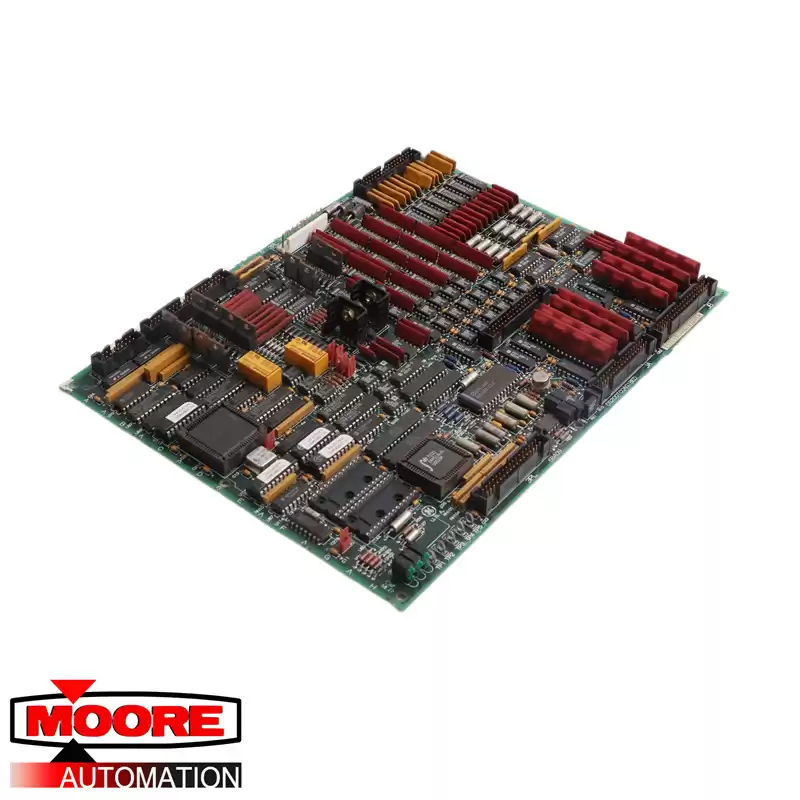

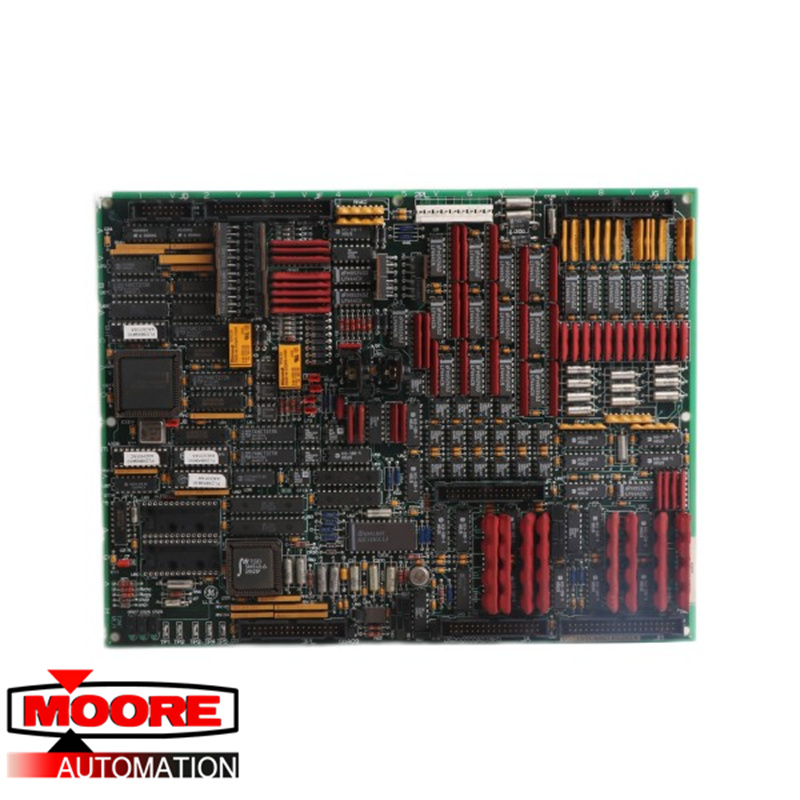

The GE RST Analog I/O Board DS200TCQAG1 contains six 34-pin connectors, two 40-pin connectors, and six jumpers. The board also has 6 LEDs. The LEDs are arranged in two rows with three LEDs in each row. When the board is installed in the drive, it is installed between other boards and the side of the GE RST Analog I/O Board DS200TCQAG1 is visible from the glass front of the board cabinet.
The LEDs are arranged so the operator can see them while the drive is in operation. The LEDs indicate the health of 6 functions of the board and they flash when activity takes place. To understand the purpose of each LED, you can read the information about the LEDs provided in the installation instructions that are supplied with the original board from the factory. The drive operator can at a glance ascertain the health of the board and the processing taking place.
