The F31X134EPRBEG1 is a component fabricated by the General Electric Company to be used by various general purpose drive systems, including the DC-300 drive. This PCB is not system-specific, but rather can be used in a number of similar drive systems. The DC-300 drive and other drives like it are typically now considered obsolete, but they were designed to be flexible and powerful systems capable of completing many tasks within industrial settings.

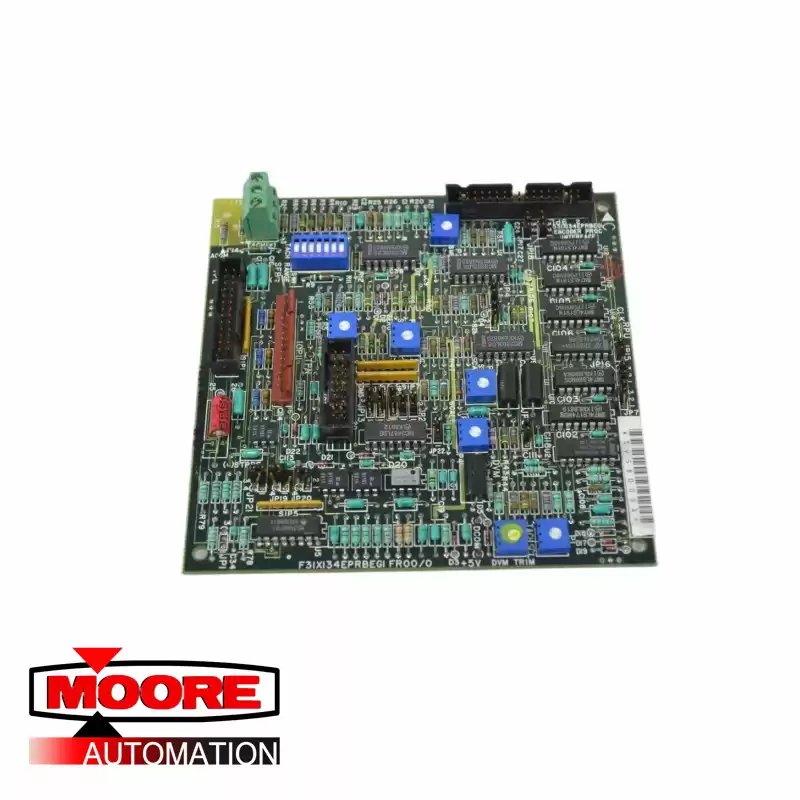

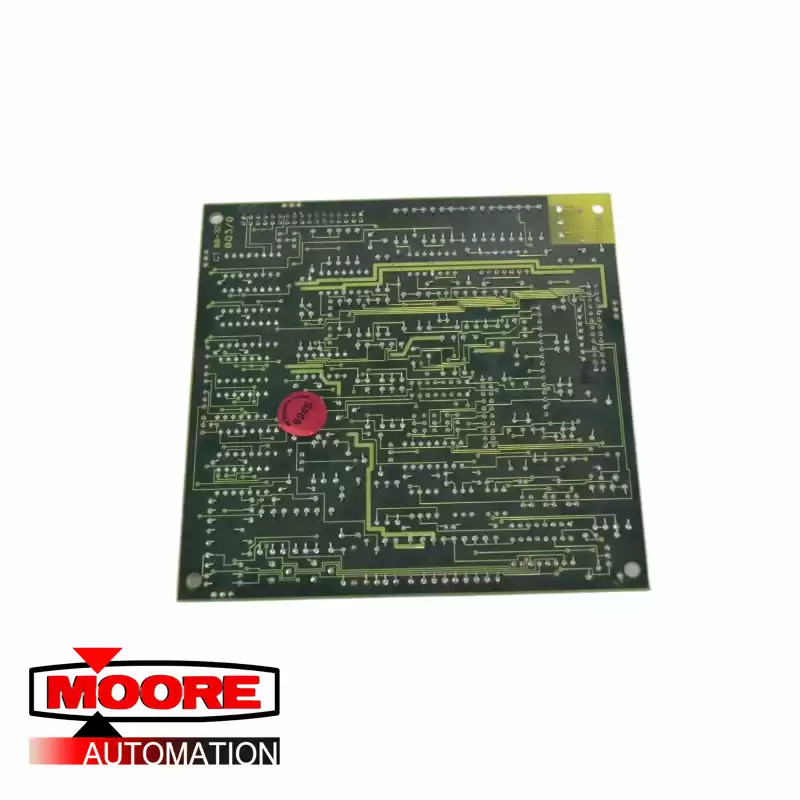

The F31X134EPRBEG1 is an Encoder Process Board. It is part of the 531X series of boards and is marked with a secondary board number of 531X134EPRBEG1. The code FR00/0 also appears on one edge.
The F31X134EPRBEG1 has a three-screw terminal strip located in one corner. This terminal strip can be used to monitor the motor speed using a voltmeter between 1 TB-1 and 1 TB-3. It can also be used to adjust the PI-tach scale for 50% of motor speed. The board has over twenty jumpers, four resistor network arrays, and seven potentiometers. Manuals from GE give more information on jumper settings.
