Products Detail:
|
Brand
|
General electric
|
|
Part Number
|
IC693ALG390
|
|
Product Type
|
Analog Voltage Output
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

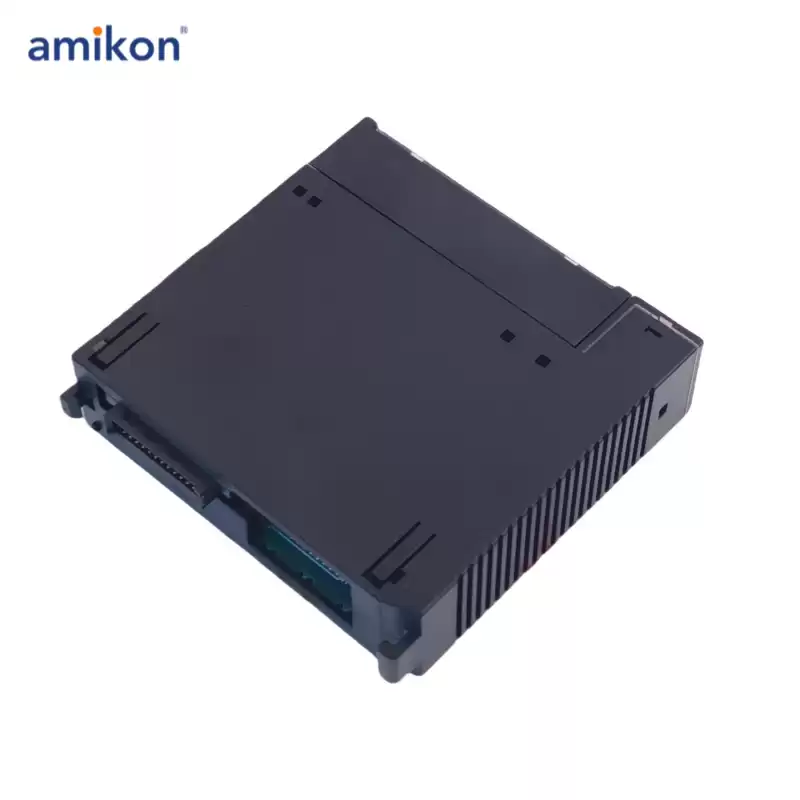

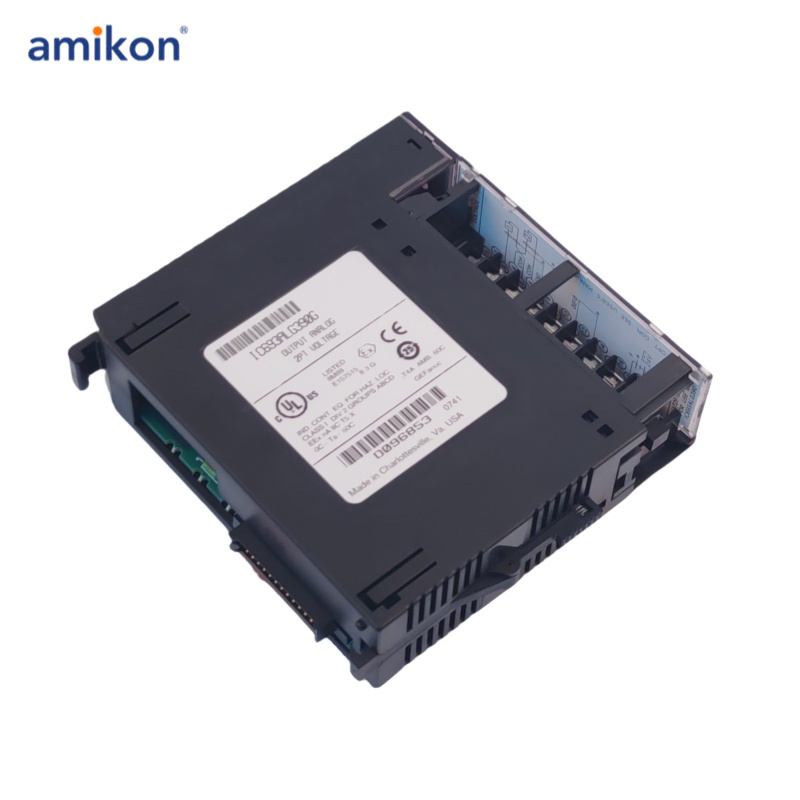

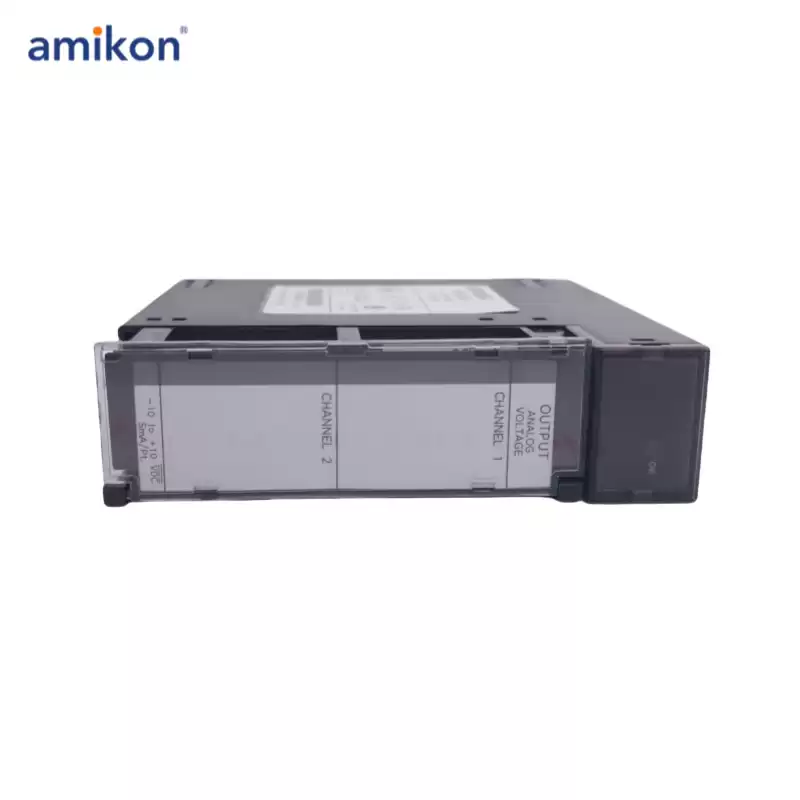

The IC693ALG390 is a GE series 90-30 Programmable Logic Controller (PLC) module. This module is an analog output module that feature Two (2) output channels capable of providing -10 to +10 VDC voltage output signals. This module is ideally used for automatically and manually controlling closed loop control system as well as transmit signals to receiving and measuring instruments. It may also be used with data loggers.
The IC693ALG390 module has a resolution of 2.5 mV wherein, 2.5 mV is equal to 1 LSB with absolute accuracy of ± 5 mV at 25° C (77° F) and offset of 1 mv maximum, 0 to 60° C (32° to 140° F). This module features an update rate of 5 ms on both channels which is directly affected by the I/O scan time and the structure of the user program. This module also has a built-in isolation between field side and logic side with rating of 1500 VDC.
This module may also be operated by supplying an external voltage supply range of 18 to 30 VDC with nominal supply of +24 VDC, from isolated, +24 VDC on backplane or user supplied voltage source, and +5 VDC from backplane with acceptable voltage ripple of 10%. Acceptable voltage ripple is 10%.
|
Attribute
|
Details
|
|
Range
|
-10 to +10 Volts
|
|
Part Number
|
IC693ALG390
|
|
Series
|
Series 90-30
|
|
Brand
|
GE Fanuc
|
|
Product Lifecycle Status
|
Discontinued/Obsolete
|
|
Product Description
|
Analog Voltage Output
|
|
Offset
|
1 mV maximum, 0 to 60°C (32°F to 140°F)
|
|
Calibration
|
Factory calibrated to 2.5 mV per count
|
|
No of Channels
|
2
|
|
External Supply Voltage Range
|
18 to 30 VDC
|
|
External Supply Voltage Ripple
|
10%
|
|
Isolation
|
1500 Volts RMS field to the logic side
|
|
Update Rate
|
5 ms (all channels)
|
|
Resolution
|
2.5 mV
|
|
Accuracy
|
+/- 5 mV at 25°C
|
