Product Details:

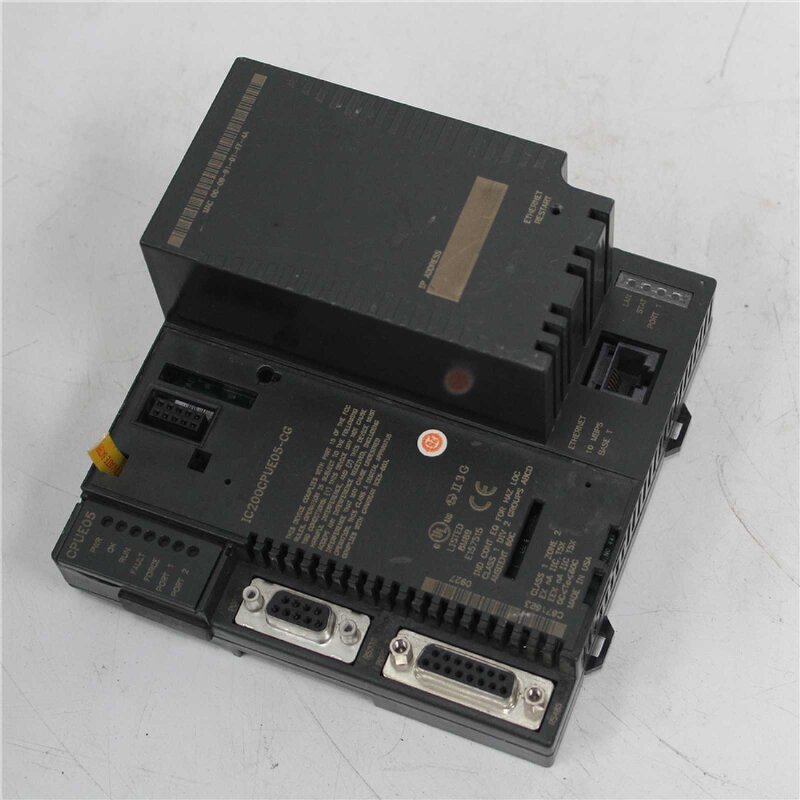

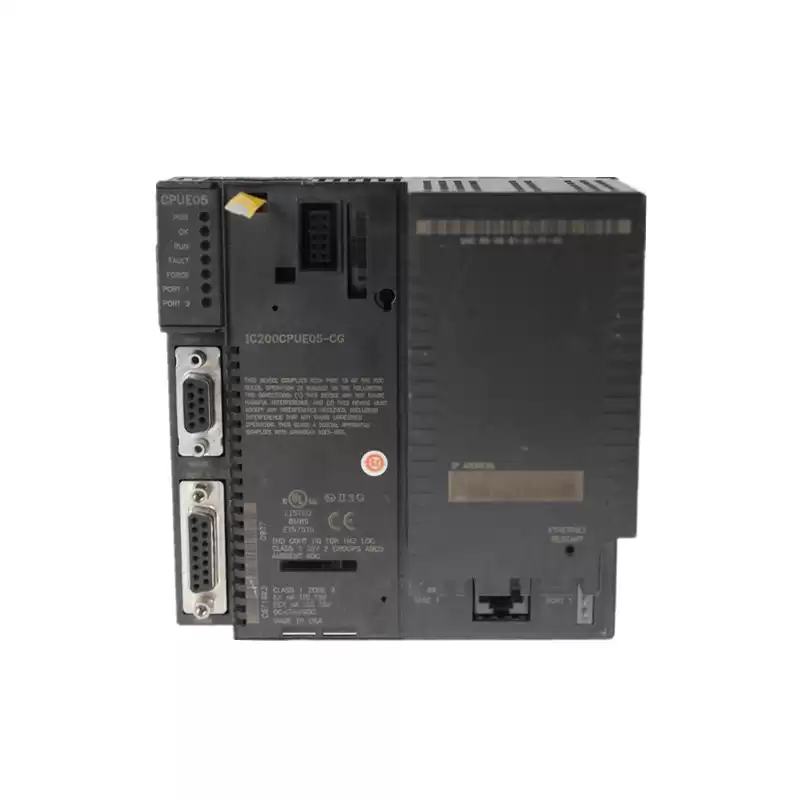

- The IC200CPUE05 is a CPU module designed by GE for the VersaMax series. The IC200CPUE05 has a built-in interface, which allows it to serve as the system controller for a maximum of 64 modules with up to 2048 I/O points.
- The IC200CPUE05 has two serial ports that are software configured for SNP and RTU slave, Serial I/O operation, and for Local Station Manager operation (Port 1 only). When either port is being used for RTU, an automatic switch to SNP slave mode is required. If the IC200CPUEO5 is in Stop mode and the CPU is configured for Serial I/O, a port will automatically return to SNP slave. Port 2 to can offer power to an external device if power requirement is 100 mA or less at 5VDC. Port 1 is an RS-232 port with a 9-pin female connector. If Port 1 is configured for CPU use, it can be forced by using the Ethernet Restart pushbutton. Port 1 will stay in its current mode until PLC is power cycled or the Ethernet Restart pushbutton has been pressed. Port 2 is an R3-485 port with a female D-sub connector that has 15-pins. The port can be used for program, configuration, and updates and can be attached directly to an RS-485/RS-232 adapter.
