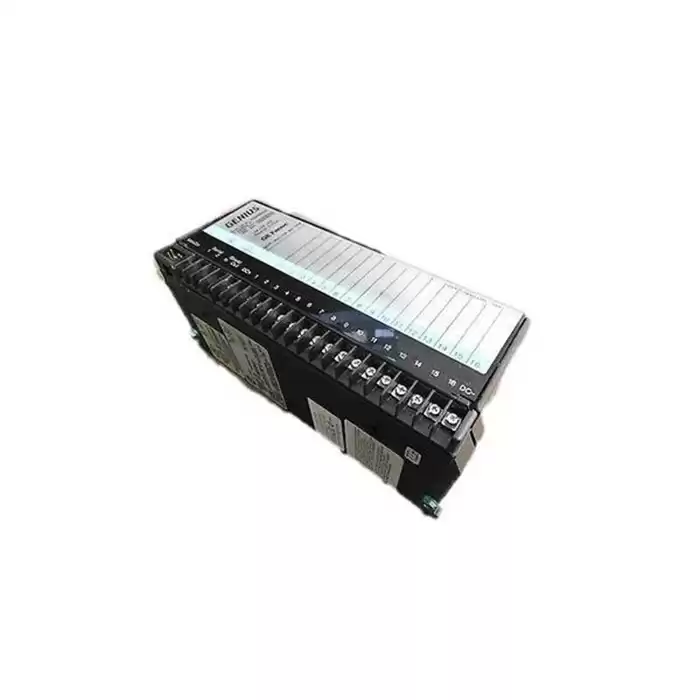

GE Fanuc IC660BBR100 relay output block is a normally-closed output block from GE Fanuc

Product description

The GE Fanuc Genius I-O IC660BBR100 normally closed relay output block comes with features like output powerup defaults, an output hold last state or default option, CPU redundancy, and bus switching module control. It requires 87 milliamps of power to operate at 115 Volts AC. The block measures 8.8 x 3.3 x 3.9 inches and it weighs 4 pounds.

It operates at full power at temperatures between 32 and 140 degrees Fahrenheit and in a non-condensing relative humidity range of 5 to 95%. When not in use, the IC660BBR100 relay output block can be stored at temperatures between -40 to 212 degrees Fahrenheit in environments with the same non-condensing relative humidity levels that are acceptable for safe device operation.

The GE Fanuc IC660BBR100 relay output block comes with 16 circuits. All 16 of these circuits are arranged in 4 groups that each contain 4 relay output circuits. The group to group isolation voltage is rated at 1500 Volts. The IC660BBR100 16-point relay output block is manufactured as part of GE Fanuc’s Genius I-O product line. This relay output block is also a normally closed relay output block.

The IC660BBR100 relay block is compatible with a variety of control and indicator devices that are low-powered such as lamps, contactors, and other relays that operate with voltage ranges of 5 to 220 Volts DC or or 5 to 250 Volts AC. All 4 of the relay block’s output groups can be powered by separate sources of AC or DC power.
