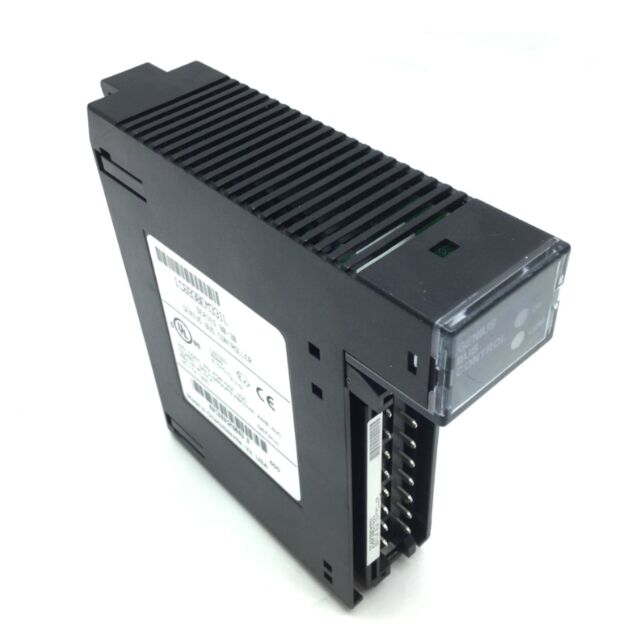

GE Fanuc IC697CPX928 Module

VersaMax Micro PLC Expansion Units

VersaMax Micro PLC Expansion Units provide additional discrete points and analog I/O channels for the PLC system. Up to four VersaMax Micro PLC Expansion Units of any type can be connected to any VersaMax Micro PLC. Expansion units can be connected in any sequence. By default, SRTP/SNP firmware is loaded in flash memory. Use SRTP/SNP to communicate with VersaPro, CIMPLICITY HMI, Series 90-30, Series 90-70, and other GE Fanuc products.

IC697CPX928 Features

• 2K words of memory

• 1.2 µ sec. Per Boolean Operation Execution

• 6 inputs and 4 outputs • Compact —75mm x 80mm x 47mm

• Powerful Instructions – PID – Floating Point Math – Subroutines – Serial Read/Write Commands

• Supports up to 2 High Speed counters (10 kHz) • Three PWM/Pulse Train Outputs (5 kHz)

VersaMax Micro PLCs

IC200UAR014 14 Point (8) 120 VAC In, (2) Relay Out at 10 Amp, (4) Relay Out at 2 Amp, 120/240 VAC Power Supply

IC200UAR028 28 Point (16) 120 VAC In, (4) Relay Out at 10 Amp, (8) Relay Out at 2 Amp, 120/240 VAC Power Supply

IC200UDD104 14 Point (8) 24 VDC In, (6) 24 VDC Out 2 at 1.0 Amp and 4 at 0.5 Amp, 24 VDC Power Supply

IC200UDD110 28 Point (16) 24 VDC In, (12) 24 VDC Out, 6 at 1.0 Amp and, 6 at 0.5 Amp, 24 VDC Power Supply

IC200UDD112 14 Point (8) 12 VDC In, (6) 12 VDC Out, 12 VDC Power Supply

IC200UDD120 28 Point (16) 24 VDC In, (12) 24 VDC Out with ESCP, 24 VDC Power Supply

IC200UDD212 28 Point (16) 12 VDC In, (12) 12 VDC Out, 12 VDC Power Supply

IC200UDD064 64 Point (40) 24VDC In, (24) 24VDC Out with ESCP (source), 24VDC Power Supply

IC200UDD164 64 Point (40) 24VDC In, (24) 24VDC Out (sink), 24VDC Power Supply

IC200UDR001 14 Point (8) 24 VDC In, (6) Relay Out, 120/240 VAC Power Supply
