GE Fanuc Rackless controller IC695CPE400-ABAB

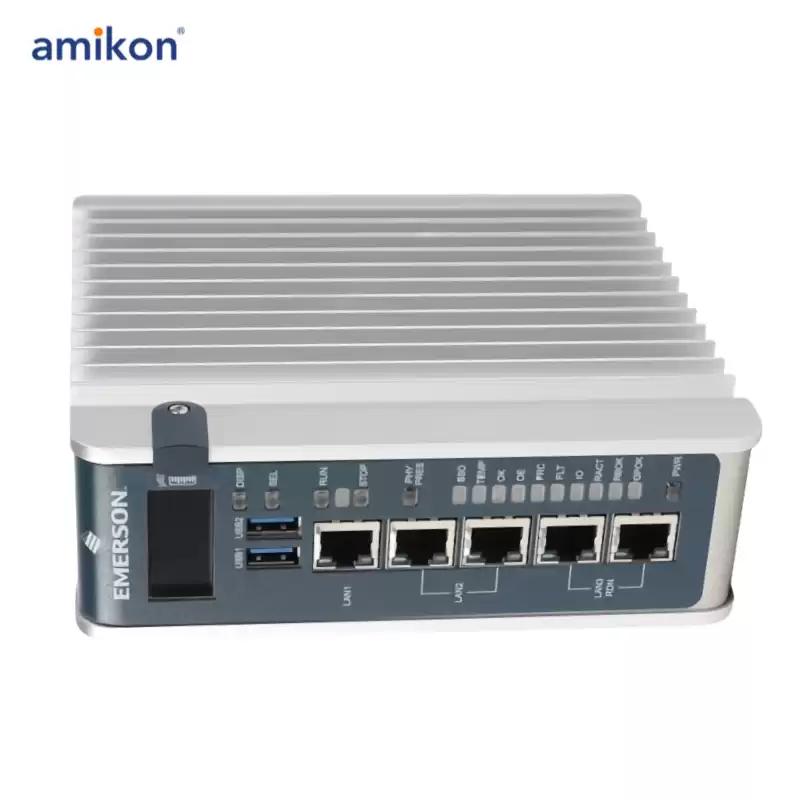

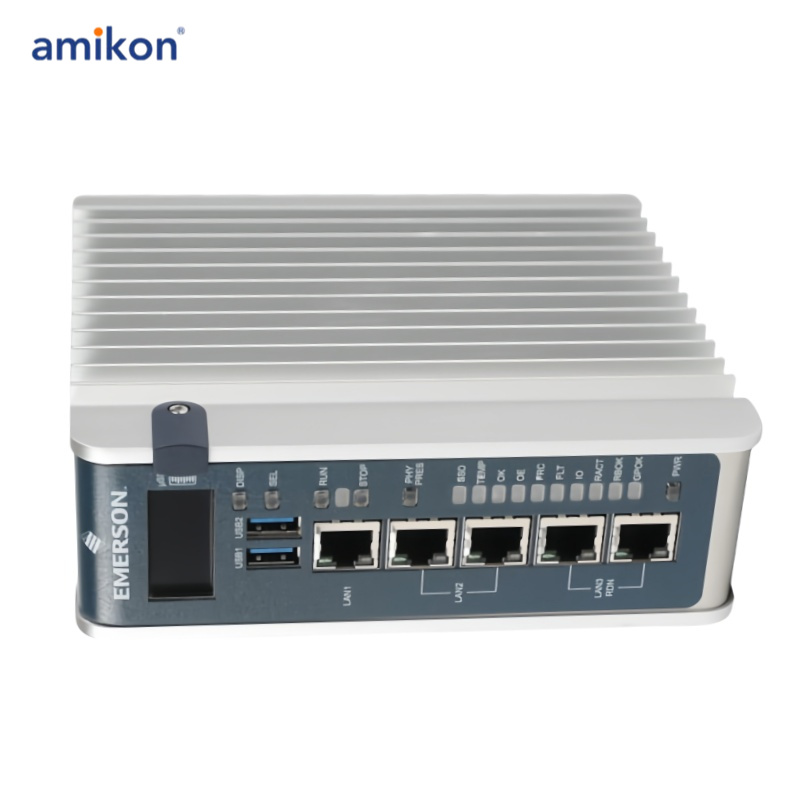

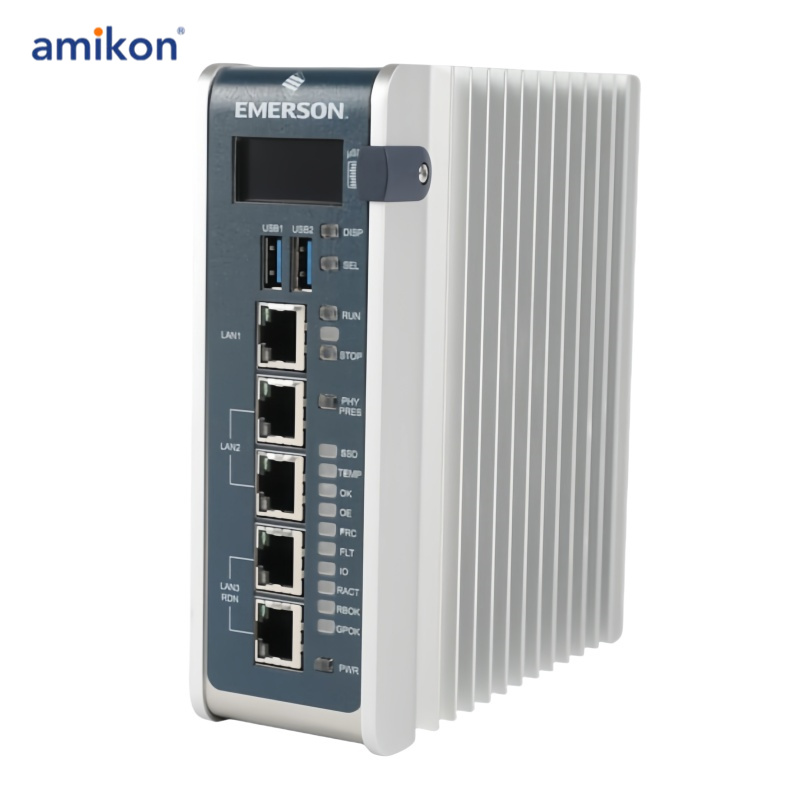

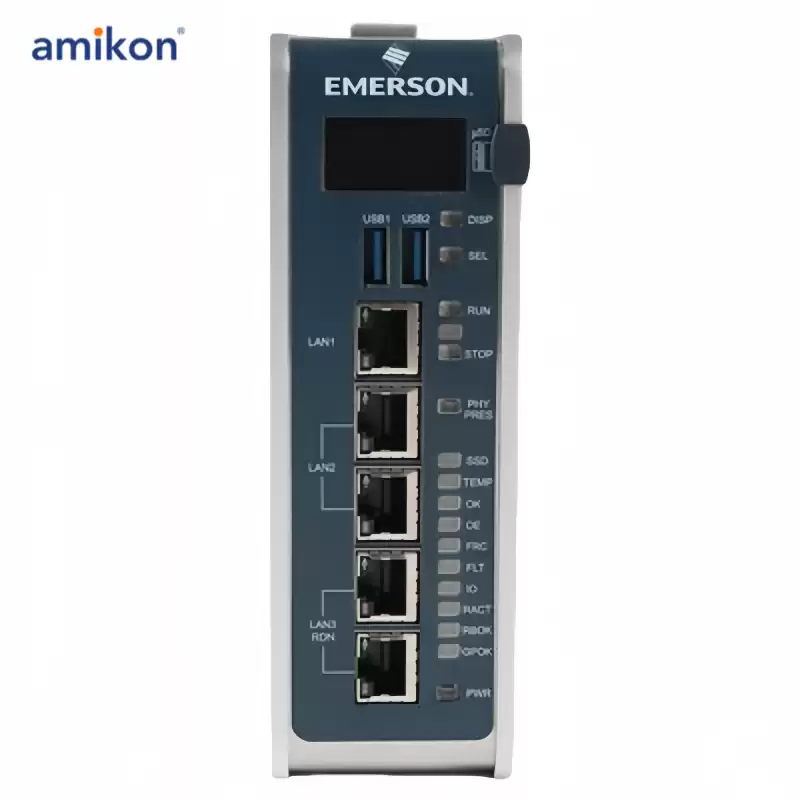

The IC695CPE400-ABAB is a Central Processing Unit (CPU) module from the PACSystem RX3i series, formerly manufactured by GE Intelligent Platforms, now under Emerson Automation. This module is designed for DIN Rail mounting and comes with a variety of communication, peripheral and connectivity ports such as Five (5) LAN ports, Two (2) USB interfaces located at the front panel; One (1) RJ45Serial COM port, One (1) Video display port; One (1) IICS Cloud Port (EFA) installed on the rear panel of the device. It has a 1.2 GHz AMD G Series quad-core microprocessor, 64 Mbytes memory and programmable using a variety of languages such as Ladder Diagram, Structured Text, Function Block Diagram, or C. The IC695CPE400-ABAB I/O memory can support up to 32 Kbits of Discrete input (%I) and Discrete Output (%Q) and 32KWords of analog input (%AI) and analog output (%AQ). Bulk memory (%W) is also supported by this module for data exchanges. Up to 768 Program blocks can be downloaded to this module with maximum individual block size of 128 KB. LAN 1 of this module is designed for liner communication while LAN2 and LAN3 are embedded switch ports with LAN3 used to provide high-speed communication and synchronization port between redundant processors. All ports support 10/100/1000 Mbps communication speed supporting full and half-duplex mode, straight and crossover cable connectors. In addition, LAN 1 and LAN 2 supports communication with PME programming station using SRTP protocol. Furthermore, LAN2 supports media redundancy protocol. This rackless CPU module is designed to operate at nominal external supply voltage of 24 VDC.
