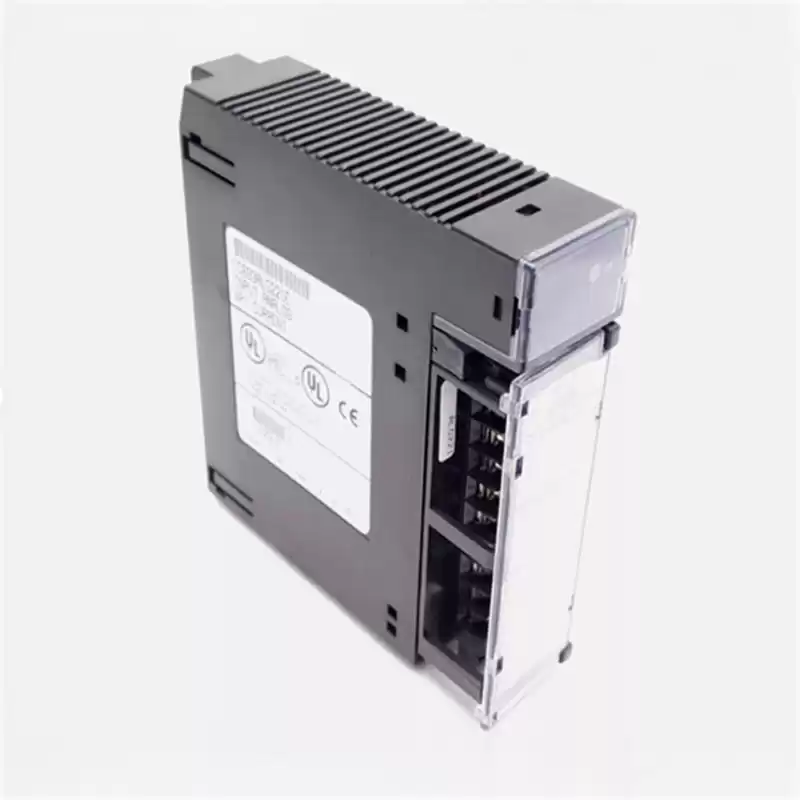

The GE Fanuc IC693ALG221 is a high-precision analog input module designed for industrial control systems, specifically for monitoring temperature using Resistance Temperature Detectors (RTDs). This module is part of the Genius Field Control system and is capable of handling four independent 3-wire or 4-wire RTDs, including platinum, nickel, nickel/iron, and copper types. Its versatility in supporting various RTD types makes it suitable for a wide range of industrial applications, such as process control, temperature monitoring, and machine automation.
One of the key features of the IC693ALG221 is its ability to provide accurate and reliable temperature measurements. The module offers a digital resolution of 15 bits plus sign, ensuring precise data acquisition for process optimization and control. It also features automatic calibration at startup and periodic recalibration to adjust for ambient temperature changes, enhancing its accuracy and reliability in harsh industrial environments. Additionally, the module includes fault detection capabilities, such as open RTD, input short, and overrange/underrange alarms, which help in maintaining system integrity and preventing potential issues.
The IC693ALG221 is designed for easy integration and operation. It features individual channel configuration, allowing users to set up each channel independently according to specific application requirements. The module also supports two data acquisition rates based on 50 Hz and 60 Hz line frequencies, providing flexibility in monitoring and control applications. Its compact and robust design, along with LED indicators for operational status, simplifies installation and maintenance, making it an ideal choice for enhancing the efficiency and reliability of industrial control systems.
