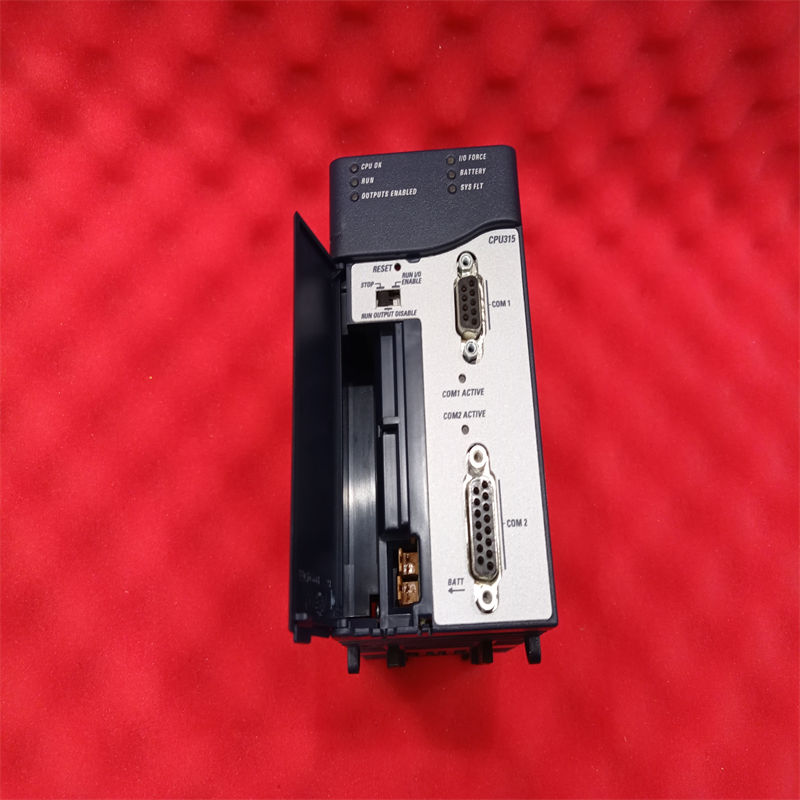

The IC695CPU315 CPU can be used to perform real time control of machines, processes, and material handling systems. The CPU communicates with the programmer and HMI devices via a serial port using SNP Slave protocol. It communicates with I/O and smart option modules over adual backplane bus that provides:
■ High-speed PCI backplane for fast throughput of new advanced I/O.
■ Serial backplane for easy migration of existing Series 90*-30 I/O.
Features:
■ Contains 20 Mbytes of battery-backed user memory and 20 Mbytes of non-volatile flash user memory.
■ Provides access to bulk memory.
■ Configurable data and program memory.
■ Programming in Ladder Diagram, Structured Text, Function Block Diagram, and C.
■ Supports auto-located Symbolic Variables that can use any amount of user memory.
■ Supports most Series 90-30 modules and expansion racks.
■ Supports up to 512 program blocks. Maximum size for a block is 128KB.
■ In-system upgradeable firmware.
■ Two serial ports: an RS-485 serial port and an RS-232 serial port.
■ Ethernet communications via the rack-based Ethernet Interface module (IC695ETM001).
■ Time Synchronization to SNTP Time Server on Ethernet network when used with Ethernet Release 5.0 or later module.
■ Compliant with EU RoHS Directive 2002/95/EC using the following exemptions identified in the Annex: 7(a), 7(c)-I, & 7(c)-III.
