GE FAUNC IC695PBM300 Profibus Master Module

The IC695PBM300 is a GE Profibus Master Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IC695PBM300
 Product ID  IC695PBM300
 Catalog  GE FANUC
 Description  IC695PBM300 Profibus Master Module
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC695PBM300



IC695PBM300

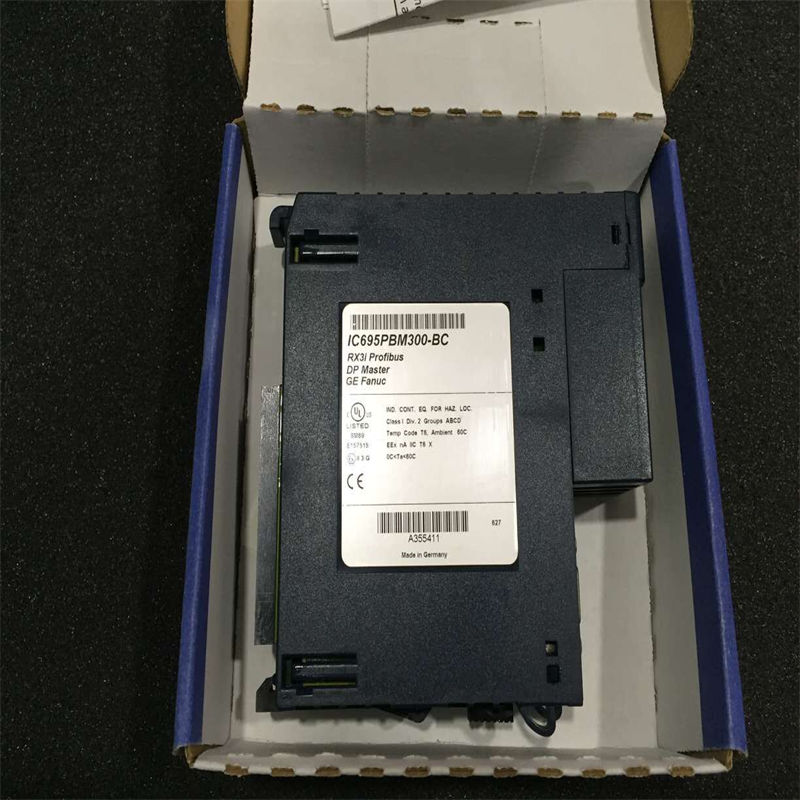

The RX3i PROFIBUS Master Module, IC695PBM300, allows the RX3i CPU to send and receive data on a PROFIBUS-DP network.
The IC695PBM300 module provides the following features:
▪ supports up to 125 PROFIBUS-DP slaves
▪ supports up to 244 bytes of input data and 244 bytes of output data per slave
▪ Supports up to 3,584 bytes of input data and 3,584 bytes of output data total
▪ Supports all standard data rates
▪ Supports Sync and Freeze modes
▪ Supports DP-V1 Read, Write and Alarm messages
▪ PROFIBUS-compliant Module and Network Status LEDs
The PROFIBUS Master module requires an RX3i CPU with firmware version 2.9 or later. This module must be located in an RX3i Universal Backplane. The module requires Machine Edition Version 5.0 SP2 Logic Developer-PLC or later for configuration.


  •  » Datasheet Link

GE FANUC IC695PBM300 Profibus Master Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
