GE FAUNC IC695PSA040 Power Supply

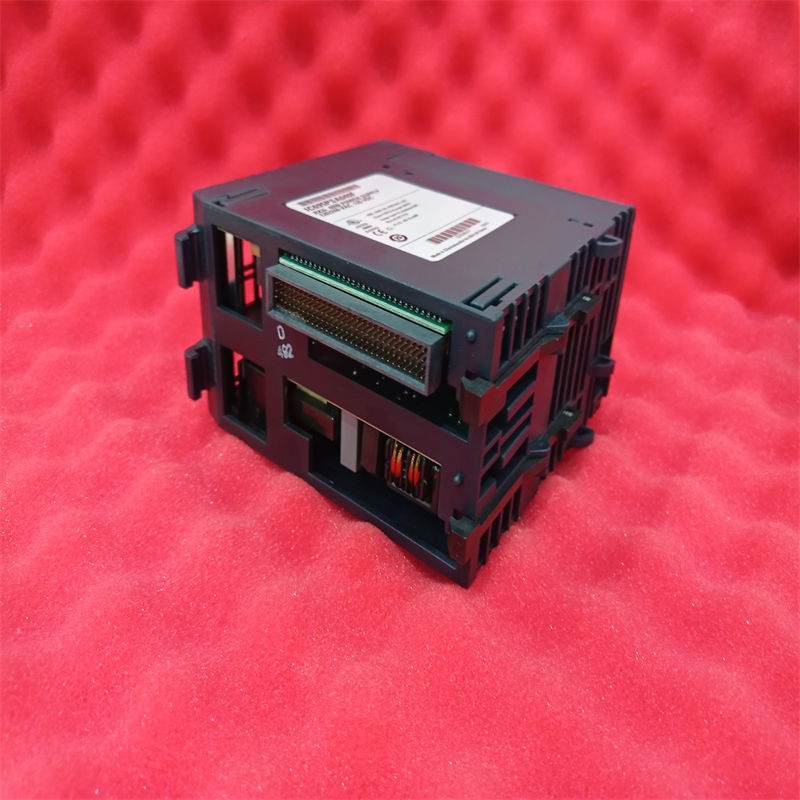

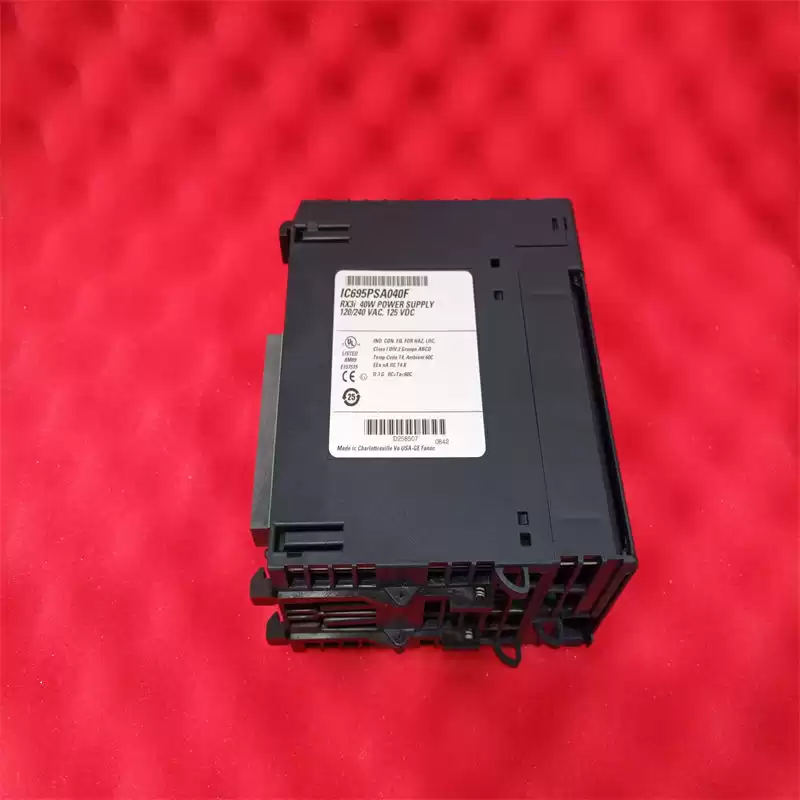

The IC695PSA040 is a GE Power Supply Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IC695PSA040
 Product ID  IC695PSA040
 Catalog  GE FANUC
 Description  IC695PSA040 Power Supply
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC695PSA040



IC695PSA040



The PACSystems RX3i power supply IC695PSA040 is a 40-Watt supply that operates from an input voltage source in the range of 85 to 264 VAC or 100 VDC to 300 VDC. This power supply provides three outputs:
▪ +5.1 VDC output.
▪ +24 VDC relay output that can be used to power circuits on Output Relay modules.
▪ +3.3 VDC. This output is used internally by RX3i modules with IC695 catalog numbers.
• Only one IC695PSA040 can be installed in a PACSystems RX3i (IC695 catalog number) Universal Backplane. This Power supply cannot be used with other RX3i power supplies in redundant or increased capacity modes.
Power Supply version IC695PSA040C and earlier may cause equipment damage if inadvertently installed in the same backplane as another RX3i power supply. If the number of modules required exceeds the capacity of the Power Supply, the additional modules must be installed in Expansion or Remote backplanes or power supplies capable of increased capacity mode operation must be used. The Power Supply indicates when an internal fault occurs so the CPU can detect loss of power or log the appropriate fault code.
The power supply’s door must be closed. During normal operation with an AC power source either 120 VAC or 240 VAC is present on the AC Power Supply. The door protects against accidental shock hazard that could cause severe or fatal injury to personnel.


  •  » Datasheet Link

GE FANUC IC695PSA040 Power Supply Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
