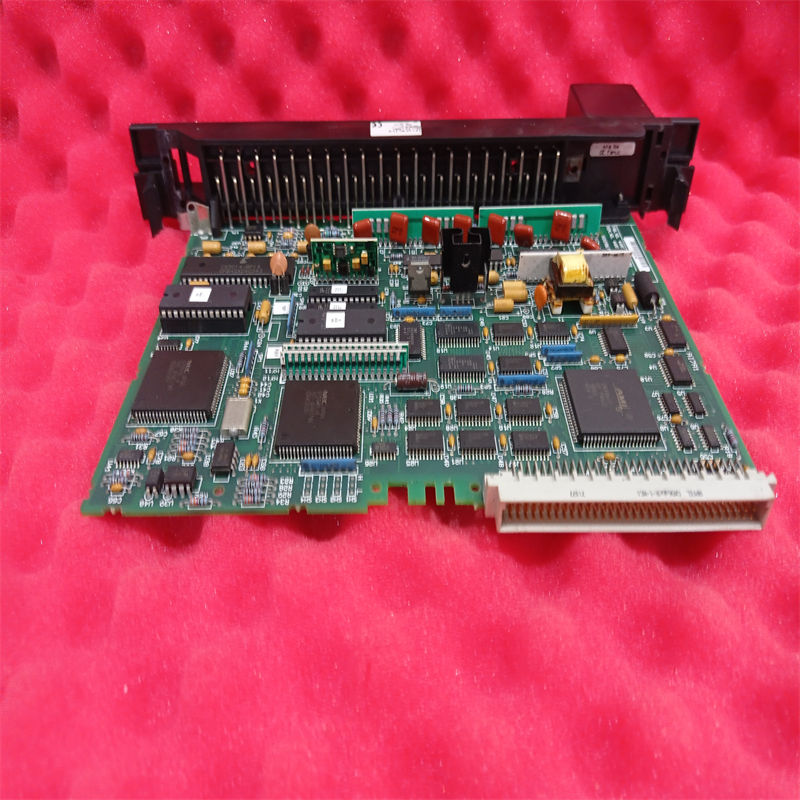

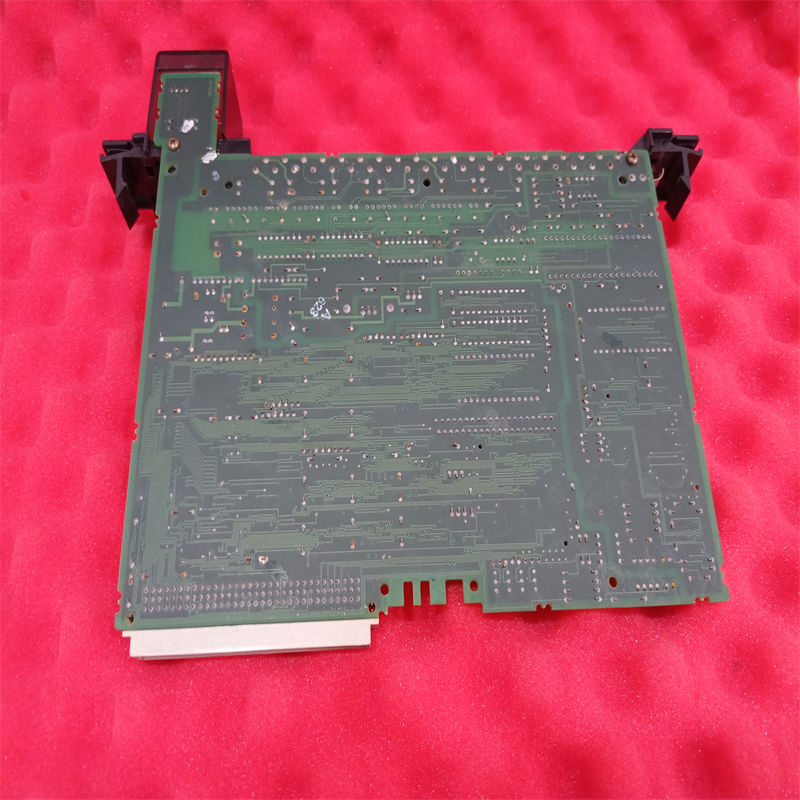

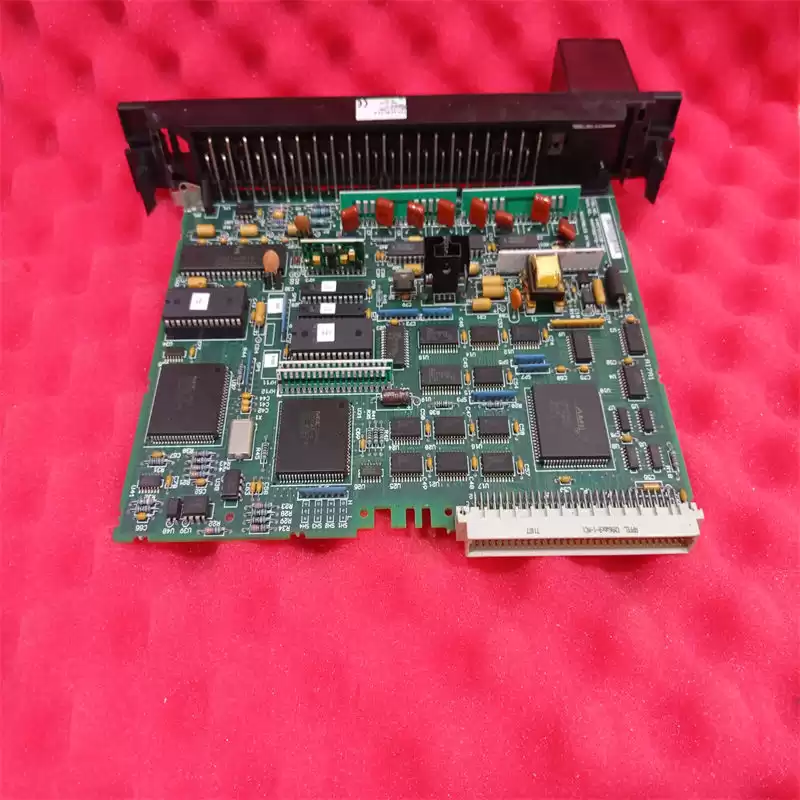

GE FAUNC IC697ALG230 Analog Input Module

The IC697ALG230 is a GE Analog Input Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IC697ALG230
 Product ID  IC697ALG230
 Catalog  GE FANUC
 Description  IC697ALG230 Analog Input Module
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC697ALG230



IC697ALG230



The IC697ALG230 module has eight differential inputs and an expansion port. Each input can be individually configured for either voltage or current. Each of the input channels also has individual user scaling. On-board load resistors are included for normal input current ranges up to Ç 40 mA. If other current ranges or different resolution is required, external resistors may be used. Standard system configurations for Ç 10 volts and 4 to 20 mA are available.
Features:
▪ Complete Analog subsystem includes Base Converter and Expander modules
▪ Base Converter module has eight differential inputs individually configurable for voltage or current
  • ▪ Accepts unipolar or bipolar Analog Inputs up to " 10 volts full scale
  • ▪ Accepts 4 to 20 milliamp current loop signals
  • ▪ Individual user scaling on each input channel on Base Converter module; scaling on a per module basis for Expander modules
  • ▪ Fast update rate for Base Converter module
  • ▪ Voltage and current Expander modules, each with 16 inputs, provides for additional inputs at a lower cost per point
  • ▪ Complete subsystem can accept up to 120 inputs
  • ▪ No jumpers or DIP switches to configure
  • ▪ Easy configuration with MS-DOSor Windows programming software configuration function.
  •

  •  » Datasheet Link

GE FANUC IC697ALG230 Analog Input Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
