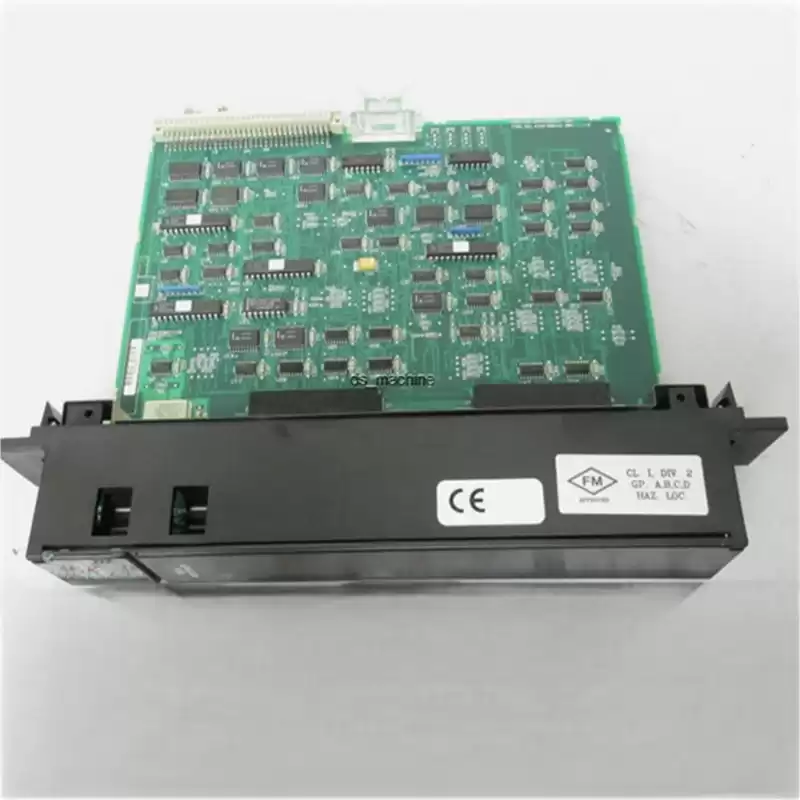

GE FAUNC IC697BEM711 Bus Receiver Module

The IC697BEM711 is a GE Bus Receiver Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IC697BEM711
 Product ID  IC697BEM711
 Catalog  GE FANUC
 Description  IC697BEM711 Bus Receiver Module
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC697BEM711



The IC697BEM711 Bus Receiver Module (BRM) permits expansion from the main rack to a maximum of seven additional IC697 PLC racks with up to 50 feet (15 meters) total of interconnecting cable. The module occupies a single slot and has two connectors, one for attachment to the upstream or CPU rack and the other for a daisy chained arrangement to additional expansion racks. The Bus Receiver Module must always be installed in slot 1. Three green LEDs provide status indication of module status, rack activity status and presence of the I/O Bus Terminator Plug (IC697ACC702) which is required in the last rack. The Bus Receiver Module supports hold last state operation of the output modules in the event of loss of communications with the CPU. It also permits isolation and repair of a faulty module within a rack. The BRM must be configured into the IC697 PLC system using the MS-DOS or Windows programming software configuration function.
Features:
▪ High Speed Parallel Bus Expansion Interface
▪ Supports up to seven Expansion racks
▪ Supports Hold Last State
▪ System Fault Isolation
▪ Three LED indicators provide module, termination, and bus expansion port status
▪ No DIP switches to set, easy software configuration into PLC system


  •  » Datasheet Link

GE FANUC IC697BEM711 Bus Receiver Module Datasheet
