GE FAUNC IC697CPU771 CPU

The IC697CPU771 is a GE CPU Module.


  • Shipping PortXiamen

 » Description

 Manufacture  GE
 Model  IC697CPU771
 Product ID  IC697CPU771
 Catalog  GE FANUC
 Description  IC697CPU771 CPU
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg

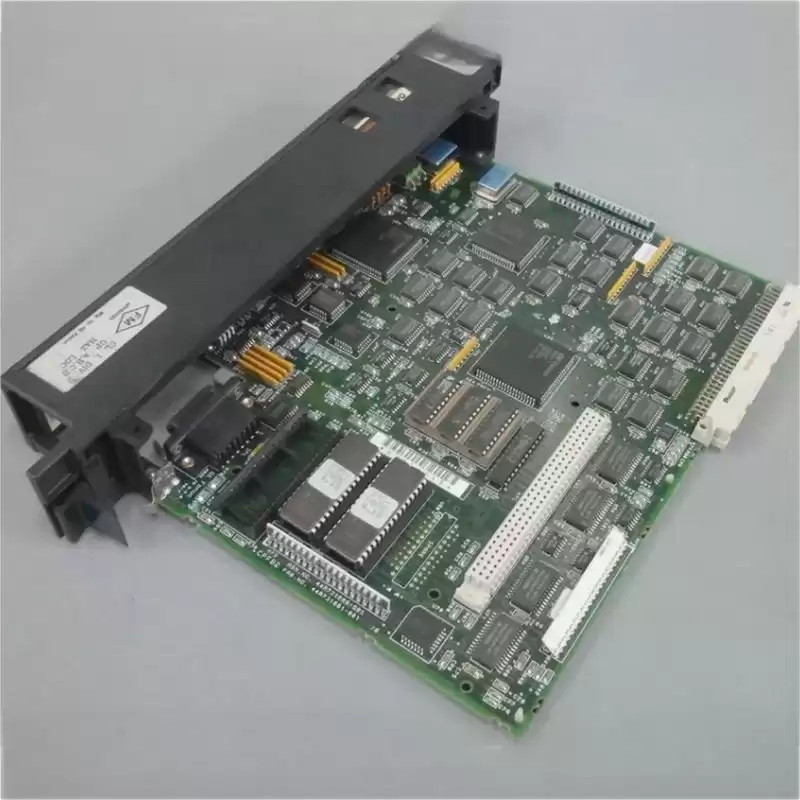

IC697CPU771



The CPU 771 is a single slot PLC CPU which is programmed and configured by MS-DOS or Windows based programming software to perform real time control of machines, processes and material handling systems. The CPU 771 CPU communicates with I/O and smart option modules over the rack-mounted backplane (IC697CHS750, 782, 783, 790, 791) by way of the VME C.1 Standard format. Supported option modules include all IC697 LAN interface modules, several Coprocessor modules, Bus Controller for IC660/661 I/O and Communications modules, in addition to all of the IC697 family of discrete and analog I/O modules.Operation of this module may be controlled by the three position switch on the module or remotely by an attached programmer and programming software. CPU status is indicated by three green LEDs on the front of the module.
Features:
▪ Single slot CPU
▪ 2K inputs and outputs (any mix)
▪ Up to 8K analog I/O
▪ 0.4 microseconds per boolean function
▪ 12 Mhz, 80C186 microprocessor
▪ Supports IC660/IC661 and IC697 PLC
▪ Programmed by MS-DOS or Windows based software products running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port.
▪ Supports up to 512 Kbytes of battery-backed expansion memory in the same slot
▪ Configurable data and program memory
▪ Battery-backed calendar clock
▪ Three position operation mode switch
▪ Password controlled access
▪ Three Status LEDs
▪ Software Configuration (No DIP switches or jumpers)
▪ Reference information inside front door


  •  » Datasheet Link

GE FANUC IC697CPU771 CPU Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS

Product Tags IC697CPU771          IC697CPU771 CPU          IC697CPU771 Datasheet          IC697CPU771 General Electric          GE IC697CPU771          GE IC697CPU771 CPU          GE IC697CPU771 PLC Module          GE FAUNC IC697CPU771
