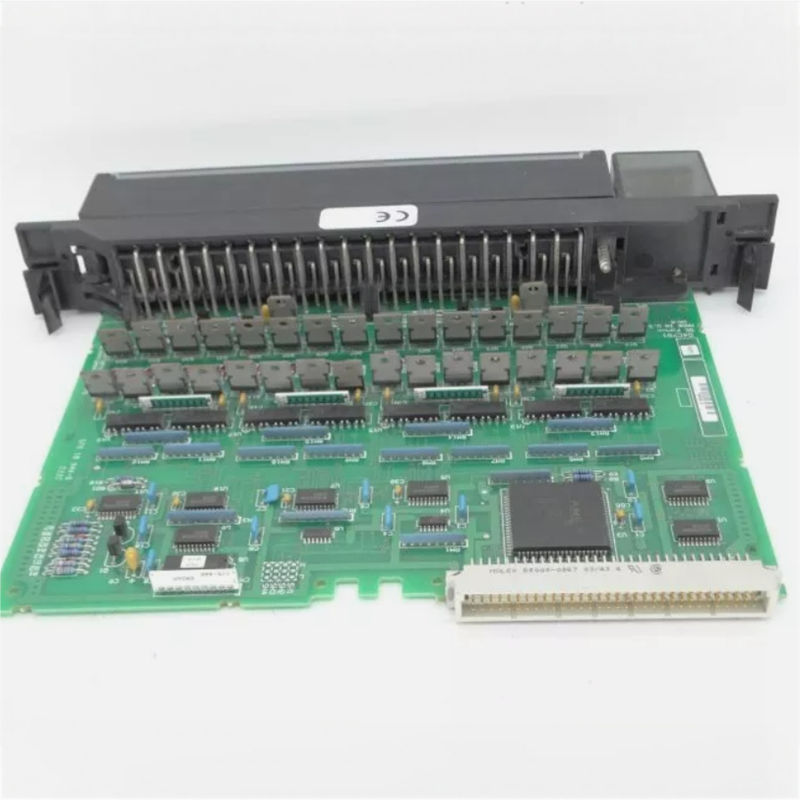

GE FAUNC IC697MDL753 Discrete Output Module

The IC697MDL753 is a GE Discrete Output Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IC697MDL753
 Product ID  IC697MDL753
 Catalog  GE FANUC
 Description  IC697MDL753 Discrete Output Module
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC697MDL753



The IC697MDL753 5/48 Volt DC 0.5 Amp Negative Logic Output Module provides 32 output points in two isolated groups with 16 points in each group.This is a wide range module in that the rated voltage can be 5 volts DC or 10 to 60 volts DC. It provides a high degree of inrush current at 10 volts to 60 volts which makes the outputs suitable for a wide range of
loads which have such characteristics. It also operates at TTL levels. LED indicators which give the ON - OFF status of each point on the logic (PLC) side of the circuit are located at the top of the module. The module is mechanically keyed to ensure correct replacement with a similar module type in the field. I/O references are user configurable without the use of jumpers or DIP switches on the module. Configuration is done using the configuration function of the MS-DOS or Windows programming software running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port. The Programming Software configuration function is installed on the programming device. The programming device can be an IBM XT, AT, PS/2 or compatible Personal Computer.
Features:
• 32 Points - Two isolated groups of 16 points each
• 0.5 amp capacity per point
• High inrush capacity (10x rated current)


  •  » Datasheet Link

GE FANUC IC697MDL753 Discrete Output Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
