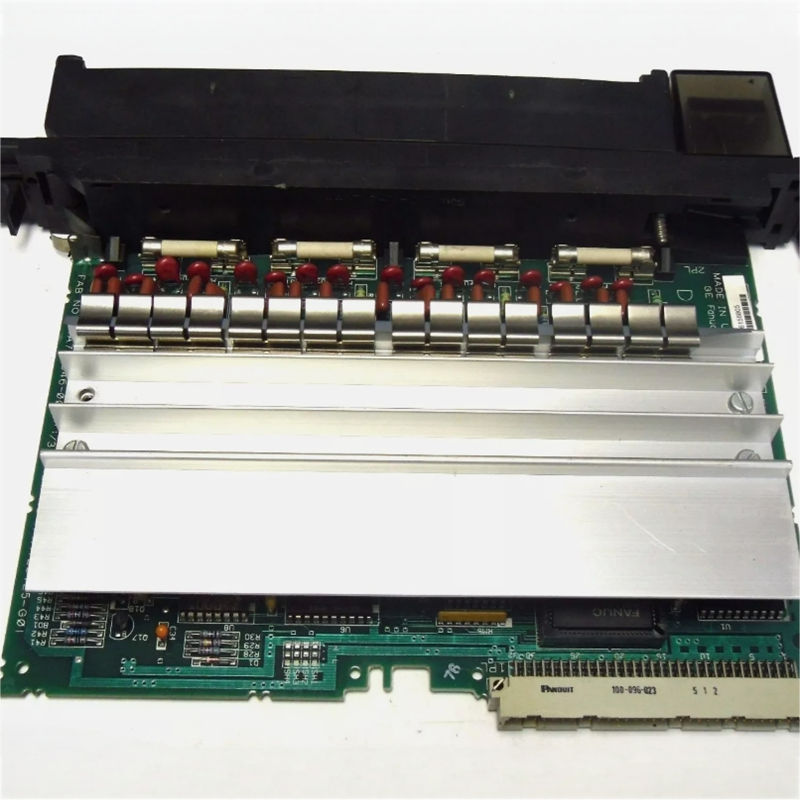

GE FAUNC IC697MDL940 Discrete Output Module

The IC697MDL940 is a GE Discrete Output Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IC697MDL940
 Product ID  IC697MDL940
 Catalog  GE FANUC
 Description  IC697MDL940 Discrete Output Module
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg





IC697MDL940



The IC697MDL940 16 point Relay Output Module is versatile, rugged, and easy to use. It will switch a variety of low to medium power loads such as relays, contactors, and lamps. The resistive rating of the module is 2 amps per point at 120/240 VAC or 24 VDC and 0.2 amps per point for125 VDC. Power to energize the relay coils is supplied by the module and each output is individually fused and suppressed with an RC snubber. LED indicators which display the ON - OFF status of each point on the logic (PLC) side of the circuit are located at the top of the module. Field wiring is made to a removable terminal board and the module is mechanically keyed to ensure correct replacement with a similar module type in the field. I/O references are user configurable without the use of jumpers or DIP switches on the module. Configuration is done using the configuration function of the MS-DOS or Windowsprogramming software running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port. The Programming Software configuration function is installed on the programming device. The programming device can be an IBM XT, AT, PS/2 or compatible Personal Computer.
Features:
• 16 points - 8 isolated Form C /- 2 groups of 4 Form A
• 2 amp per point switching capacity
• RC snubber and fuse protection per point
• No user power required
• Removable field wiring terminal


  •  » Datasheet Link

GE FANUC IC697MDL940 Discrete Output Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
