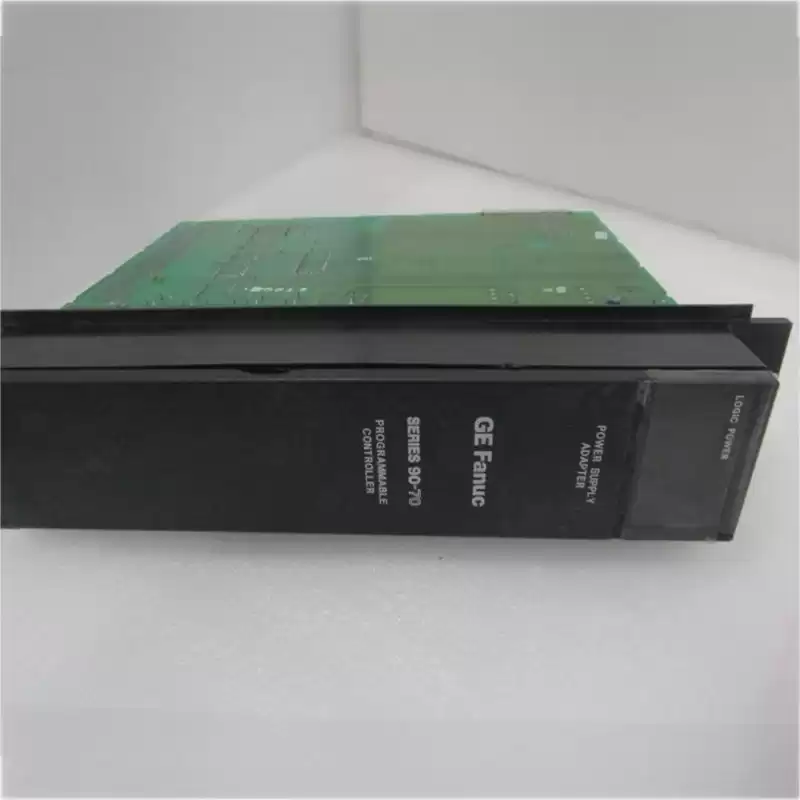

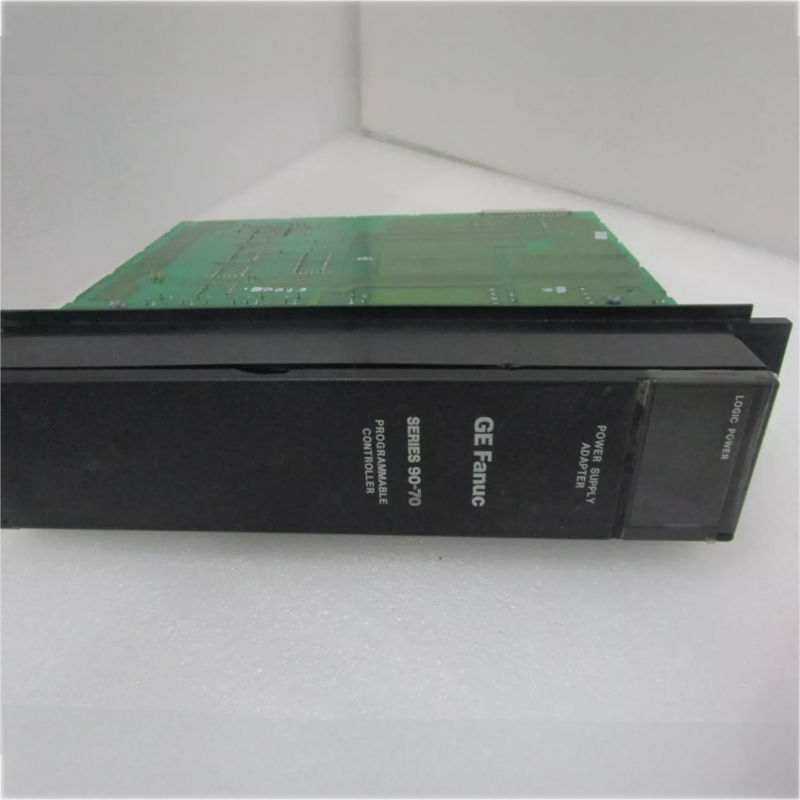

GE FAUNC IC697PWR720 Power Supply Adapter Module

The IC697PWR720 is a GE Power Supply Adapter Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IC697PWR720
 Product ID  IC697PWR720
 Catalog  GE FANUC
 Description  IC697PWR720 Power Supply Adapter Module
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC697PWR720



The IC697PWR720 Power Supply Adapter Module must be connected to an external power supply through a cable. The external power supply can be an IC697 power supply module or another external power supply. The +5, +12, and ±12 VDC outputs, as well as the 5V remote sense, which are generated by an external power supply, are connected to the IC697 rack backplane through the PSA. The maximum currents that can be supplied to the backplane through the PSA are 18 Amps on the +5Voutput, 2 Amps on the +12V output, and 1 Amp on the ±12V output.
The PSA monitors the +5V output and the TTL-compatible Input Power OK signal (TTL) from the external power supply. The Input Power OK signal (TTL) indicates that the external power supply input voltage is adequate to maintain hold-up time for an orderly system shutdown. The external power supply must provide adequate hold-up time (5.05 milliseconds minimum, per ANSI/IEEE STD1014-1987) as well as an Input Power OK signal (TTL) to ensure an orderly system shutdown when power is removed.


  •  » Datasheet Link

GE FANUC IC697PWR720 Power Supply Adapter Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
