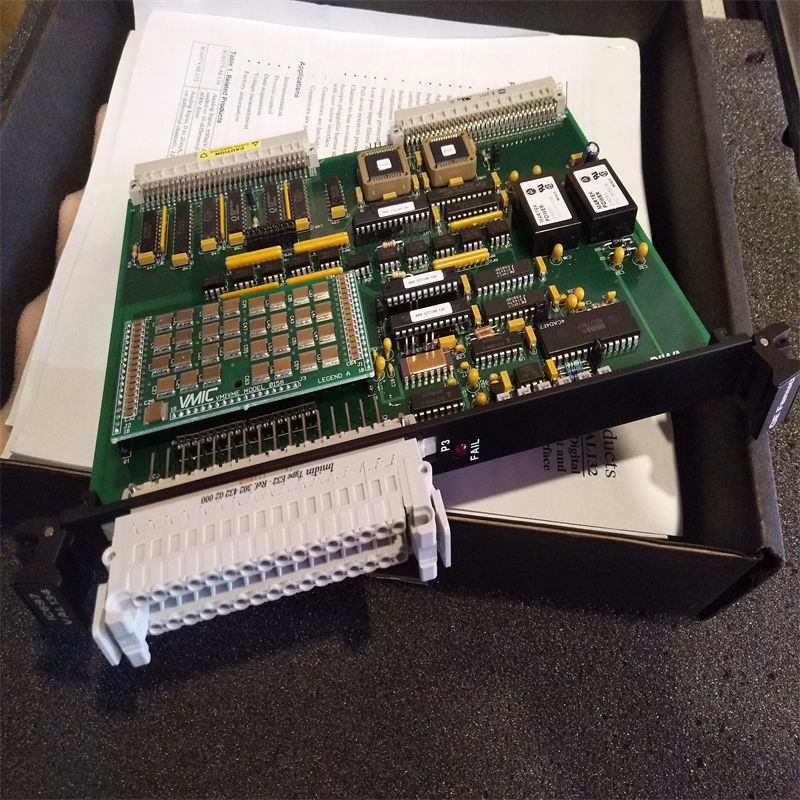

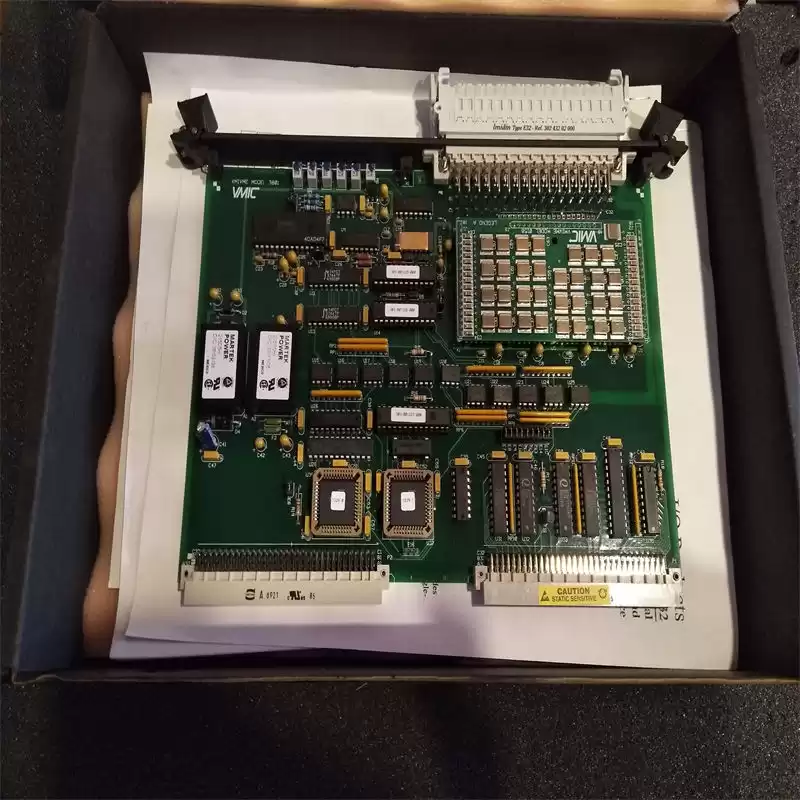

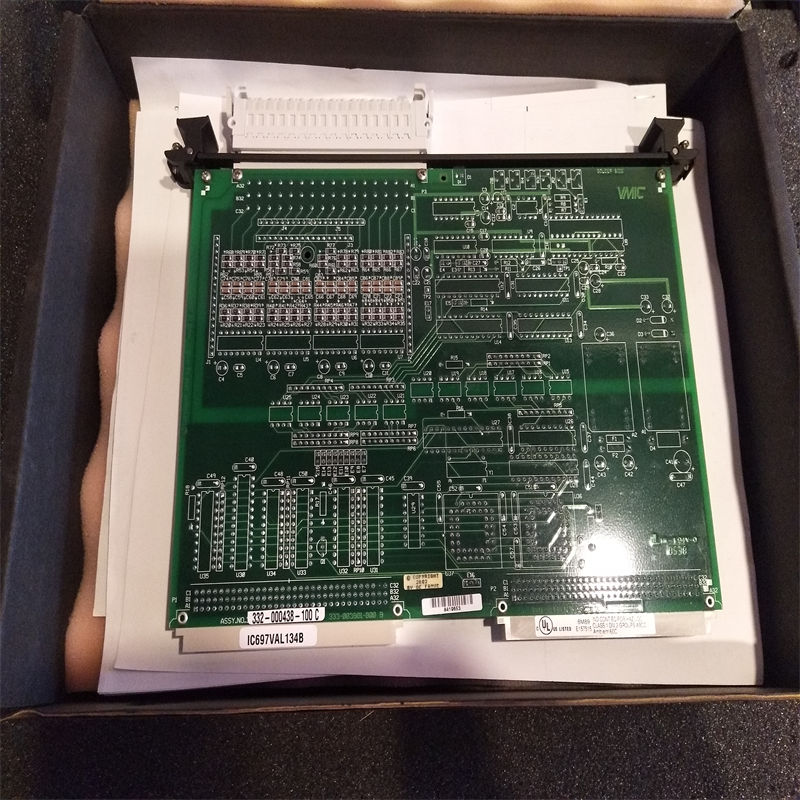

The IC697VAL134 board is a converter board that has been designed and manufactured by GE Fanuc. The specific purpose of this board is to work as a signal converter device. It can scan analog input channels and convert the signal from analog to digital. The specific converter that comes embedded in the board is an ADC converter with a resolution of 12 bits. This board does not require the use of any software after it has been powered up and it starts scanning each input channel. The GE Fanuc Automation IC697VAL134 converter board has an input range that goes from +/- 50 minivolts to +/- 10 Volts DC and it comes with input overvoltage protection features. The IC697VAL134 converter board includes a front panel LED that indicates the status of the inputs. This board occupies 128 bytes of I/O VMEbus space and it comes with jumpers that provide space for a board on any 128-bytes boundary. Before installing IC697VAL134, the equipment needs to be deenergized to ensure safety during the installation process to both the equipment and the technicians.
Features:
• Thirty one single-ended or 16 differential inputs
• Autoscanning; continuously digitizes inputs and stores results in dual-ported data registers
• Input ranges from ±50mV to ±10V
• Jumper-programmable gains of x1, x10, x100
• Selectable A/D ranges of ±5V, ±10V, 0 to +10V
• Aggregate conversion rate of 40kHz
• Supports real time Built-in-Test
• Input connector compatible with discrete wire cables
• Selectable data coding; offset binary or two’s complement
• Overvoltage protected inputs
• Low pass input filters: 40Hz (IC697VAL134)
• Pull-down resistors prevent floating inputs
• Channel-to-bus isolation to 1,500V
• Accepts pluggable barrier strip cable connector with user screw interface
