GE FAUNC IC698CPE030 CPU

The IC698CPE030 is a GE CPU Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IC698CPE030
 Product ID  IC698CPE030
 Catalog  GE FANUC
 Description  IC698CPE030 CPU
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC698CPE030



IC698CPE030

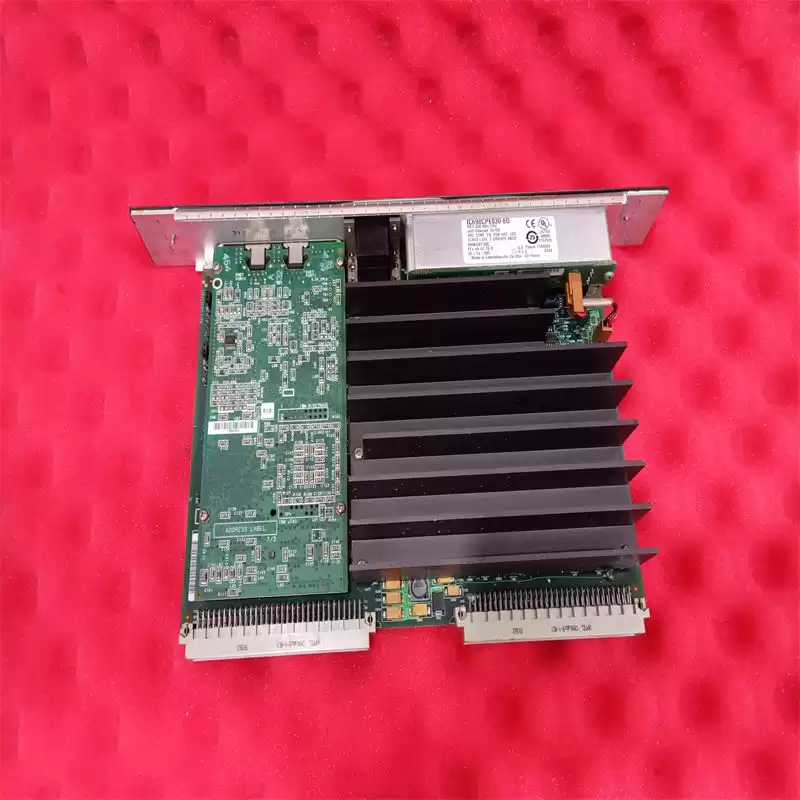

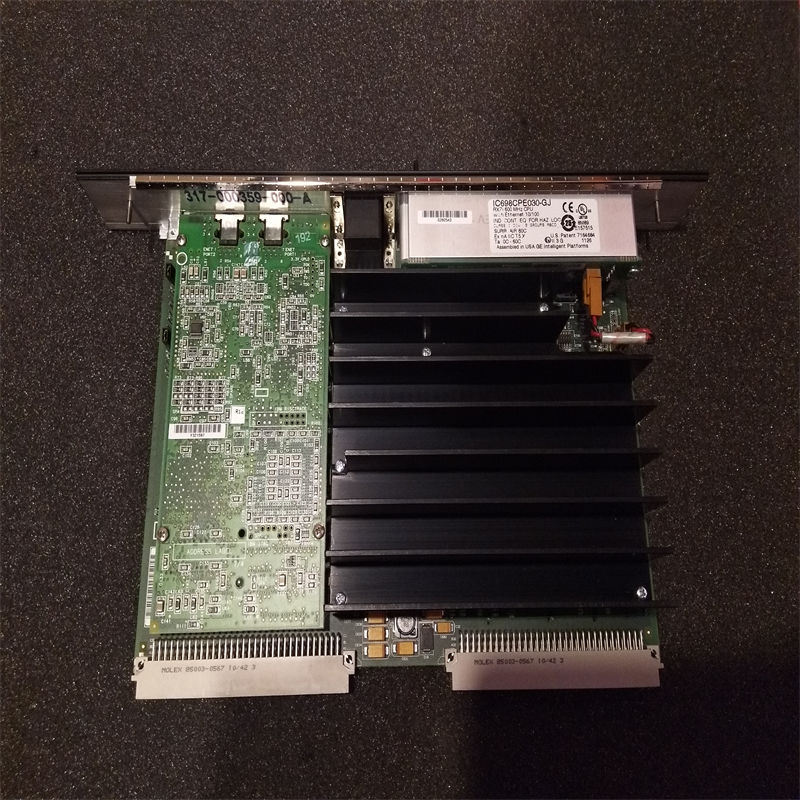

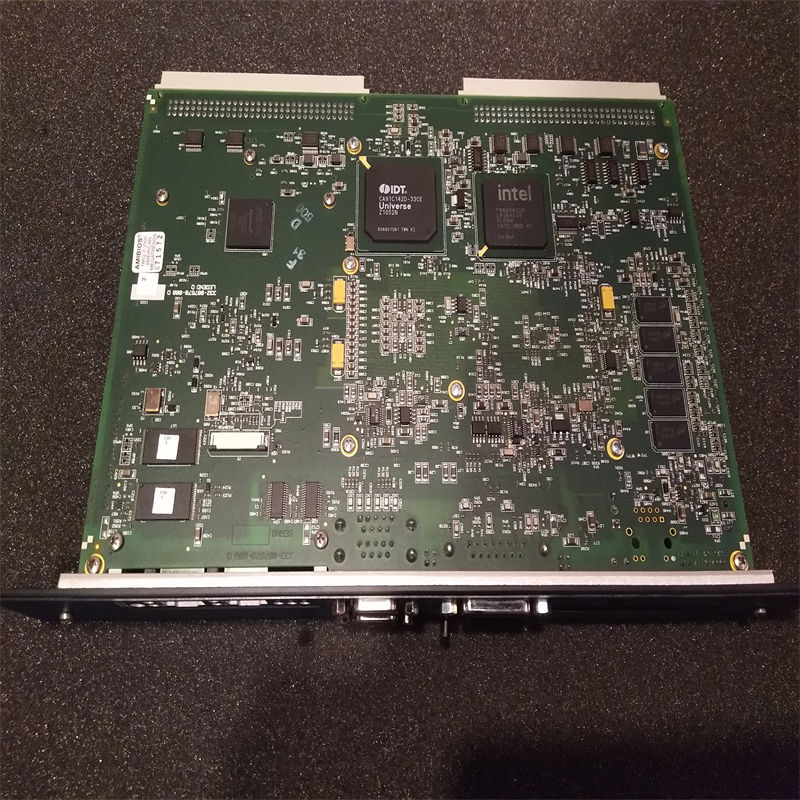

The IC698CPE030 is a 600 MHz Central Processing Unit produced by GE Fanuc for the RX7i series. Select features of the IC698CPE030 include battery-packed user memory and non-volatile flash memory for data, bulk memory access, configurable data/program memory, and auto-located symbolic variables among others. This CPU supports Series 90-70 discrete and analog I/O, communications, and other modules, including VME modules.This CPU comes standard with three isolated serial ports: RS-485 serial port, RS-232 serial port, and RS-232 Ethernet station manager serial port.
This CPU comes with a Pentium-M microprocessor. It has 64 MB of both user memory and user flash. As an RX7i CPU, IC698CPE030 is configured to undertake control of processes and material handling structures in real time. The IC698CPE030 unit communicates with I/O and smart option modules by way of a rack-mounted backplane using the VME64 standard format. To communicate with the programmer and different HMI devices, embedded Ethernet ports are used. A serial port using SNP Slave protocol can also be used for communication.
When powered, the IC698CPE030 begins a complete self-diagnostic check. During initialization, the LED lights will emit ON or OFF status in a specific sequence. Once the initialization process is finished, the OK LED light will blink and then turn on.To avoid memory loss, routine maintenance steps should be initiated by the user. The lithium battery pack (part IC698ACC701) should be replaced as scheduled. This is important as the CPU’s battery maintains program and data memory. Additionally, it operates the calendar clock if power is lost.



  •  » Datasheet Link

GE FANUC IC698CPE030 CPU Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
