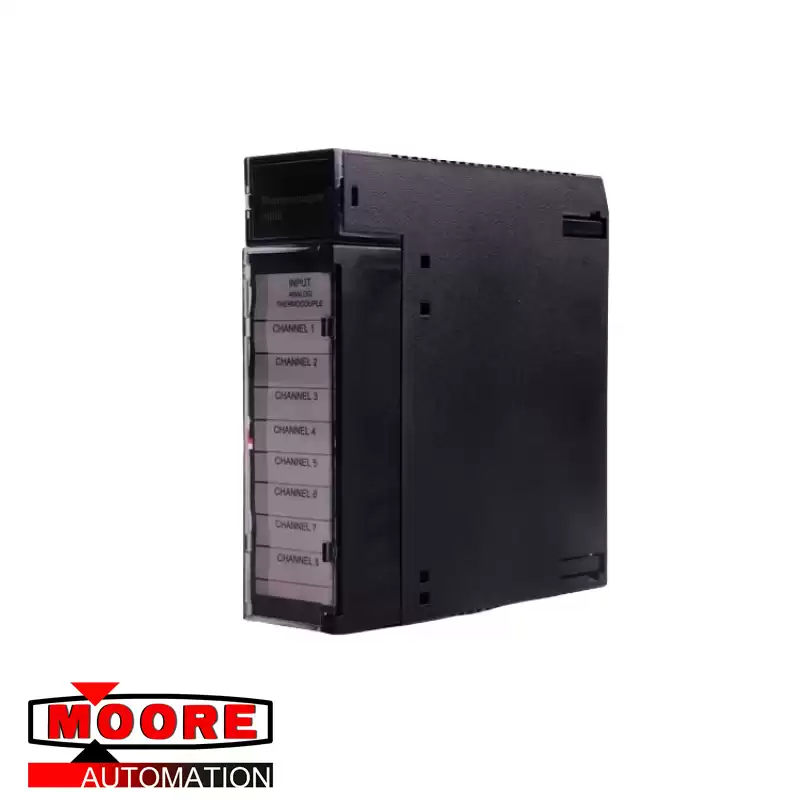

Product Description
Power Consumption 70mA @ 5VDC and 60mA @ 24V Relay
Number of channels 8
Types Supported J, K, N, T, E, R, S
Resolution 0.5°C
Accuracy +/- 0.5°C typical (Type J)
I/O Points Required 8%AI [&16%I]
Input Impedance >20Mohms
Maximum Safe Overload +/- 35V
Common Mode Range +/- 12V
Common Mode Rejection >100dB
A/D Conversion Type Integrating
A/D Conversion Time 5 ms
Operating Temperature 0 to 60°C (32 to 140°F)
Relative Humidity 5% to 95% non-condensing
