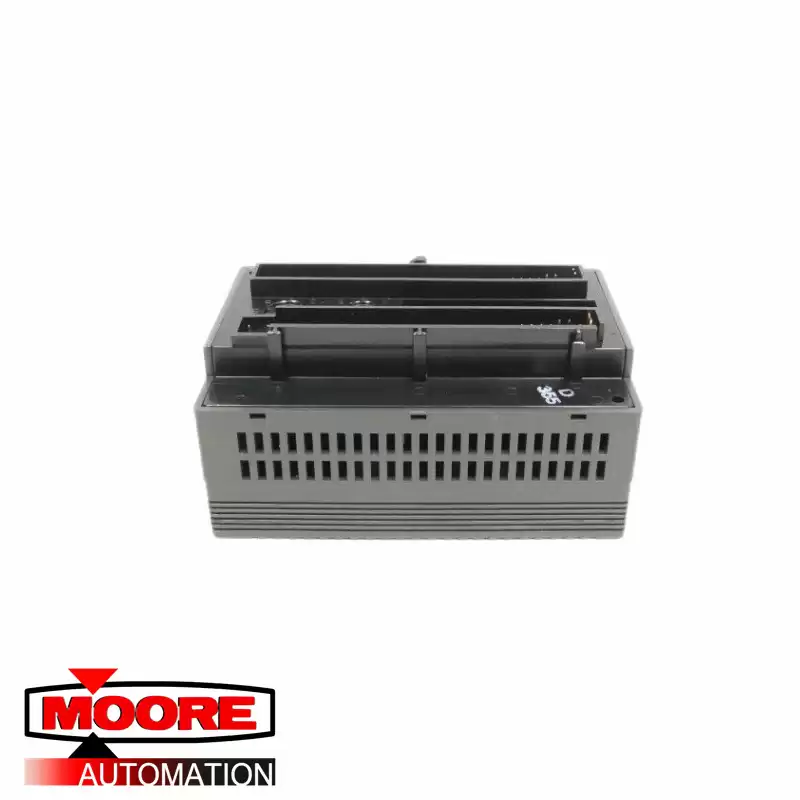

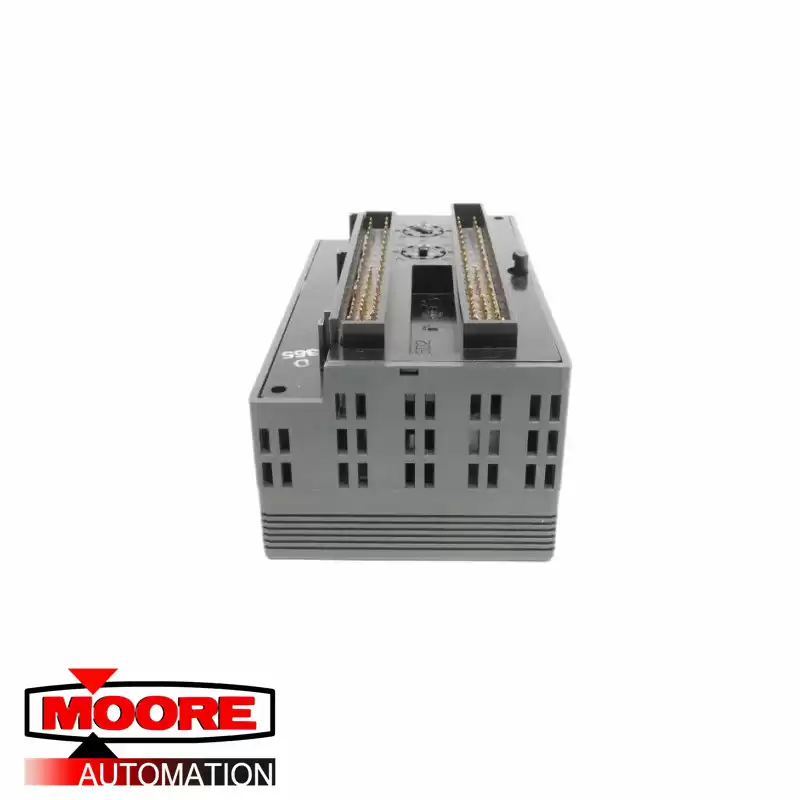

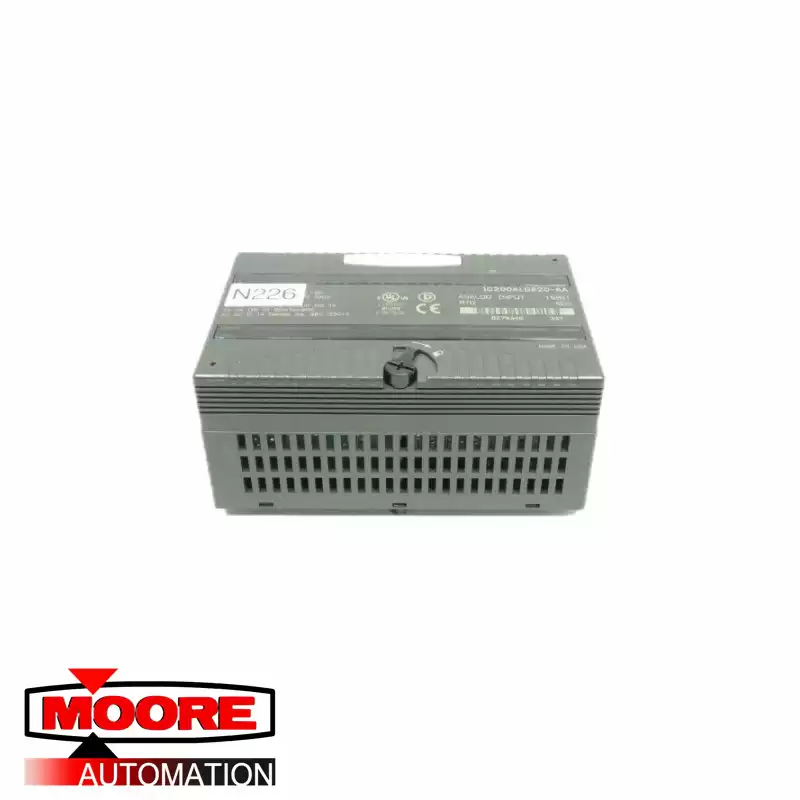

GE IC200ALG620 Analog Input RTD Module

General Information：

-------------------------------------------------------------

ABOUT IC695CPE310 :

The IC200ALG620 is a VersaMax analog input module that is manufactured by Emerson Automation. This module is specifically a Resistance Temperature Detector (RTD) module that is used for temperature measurement and integration of transducers. This module is a 4-channel RTD / Resistance analog input module that can be used with a variety of RTD sensors including Platinum 25, 100, and 1000 ohm; Copper 10, 50, and 100 ohm; Nickel 100 and 120 ohm; and Nickel / Iron 604 ohms and direct input of resistance value ranges such as 0-500 Ohms and 0-3000 Ohms.

The IC200ALG620 supports 3-wire and 4-wire RTD sensors. Each channel has a dedicated Analog to Digital (ADC) converter circuit with conversion resolution of 16 bits. This module has measurement accuracy (at 25 Degree Celsius) of +/–0.15% when used for resistance measurement and +/-0.15% on RTD (temperature) measurement mode. Each input channel is capable of detecting Open RTD, input short, underrange, overrange, non-volatile memory storage fault, wiring fault and high/low alarm. These fault and alarm conditions are reported to the host Programmable Logic Controller (PLC) for integration. This module has an update rate of 210 ms per channel at 60 Hz and 230 ms per channel at 50 Hz. It is also installed with an OK LED which signals backplane power active supplied to the module when lit Green and module fault when lit Amber. This module has backplane current draw of 125 mA at 5.0 VDC bus output and 125 mA at 3.3 VDC bus output.
