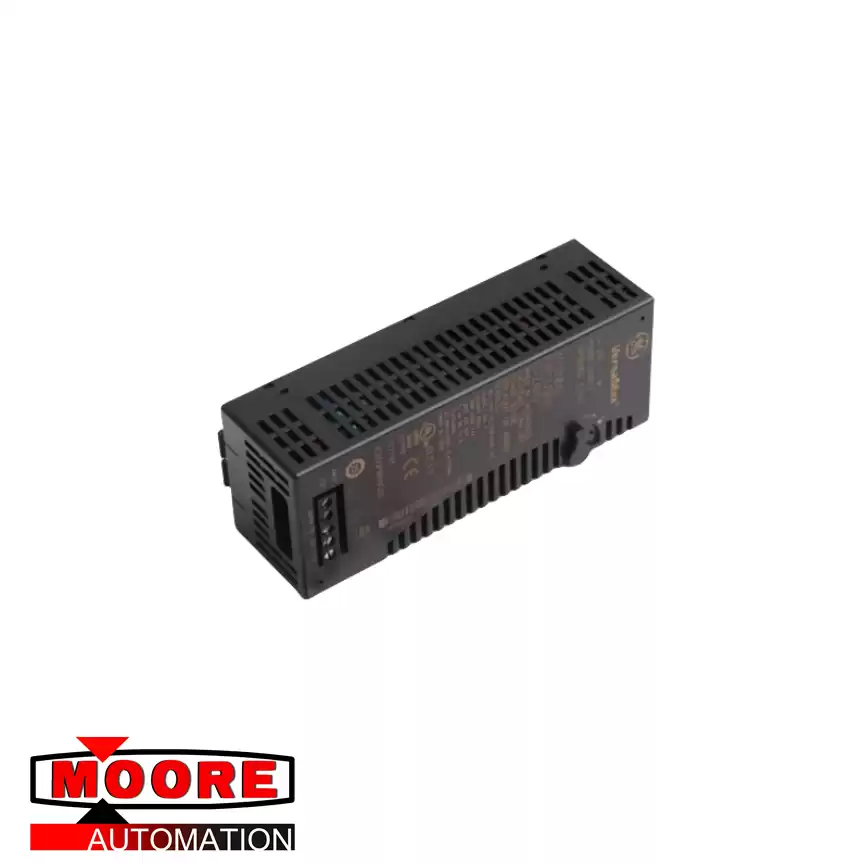

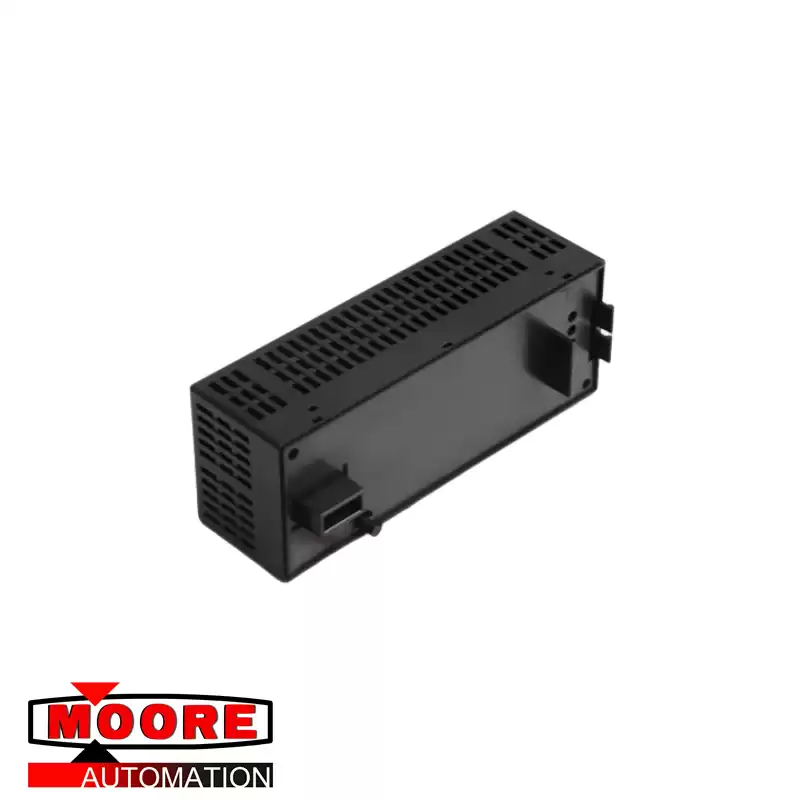

Product Description
Technical Specifications
●Input Voltage: 18 to 30VDC, 24VDC nominal
●Input Power: 11 W
●Holdup Time: 10ms
●Inrush Current:
20A at 24VDC
25A at 30VDC
●Output Voltage: 5VDC, 3.3VDC
●Protection: Short circuit, overload, reverse polarity
●Output Current:
Total: 1.5A maximum*
3.3VDC Output: 1.0 maximum
5VDC Output: (1.5A I3.3V) maximum
* The total output current should not exceed 1.5A. For example, if 3.3V @ 1.0A is required, 0.5A is available on the 5V output.
