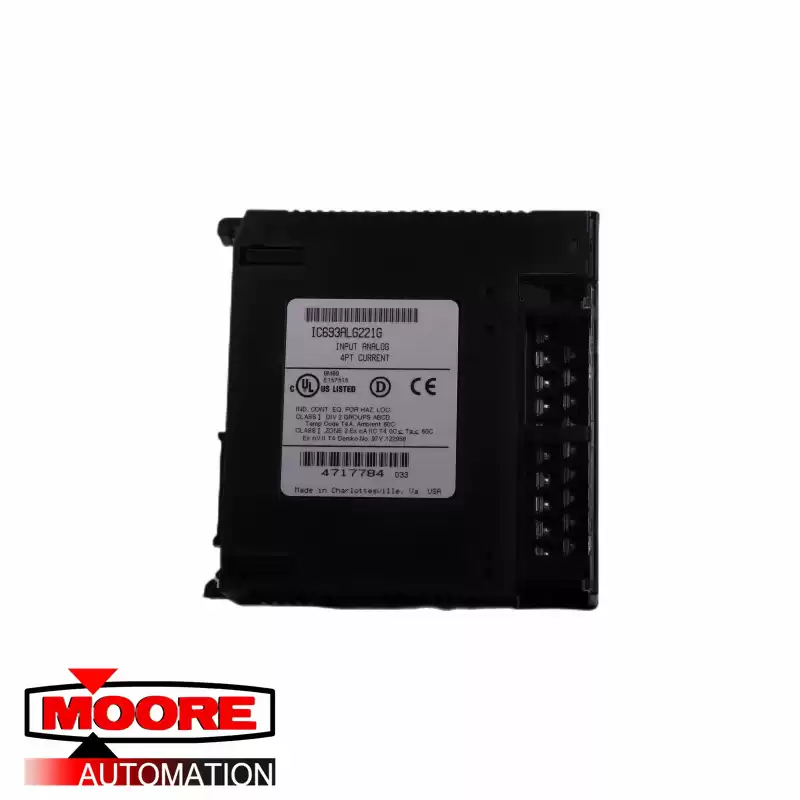

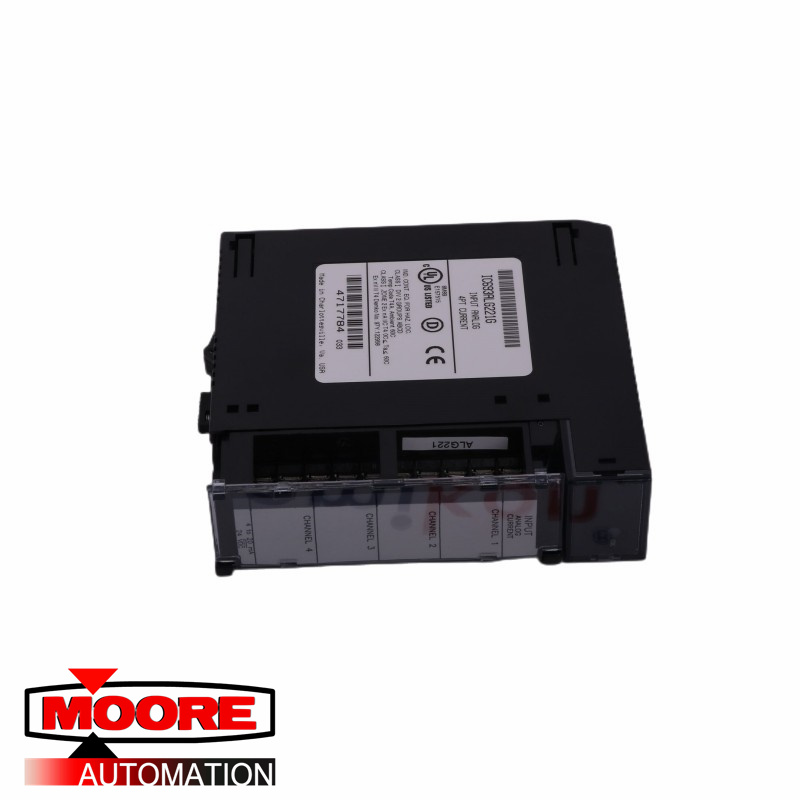

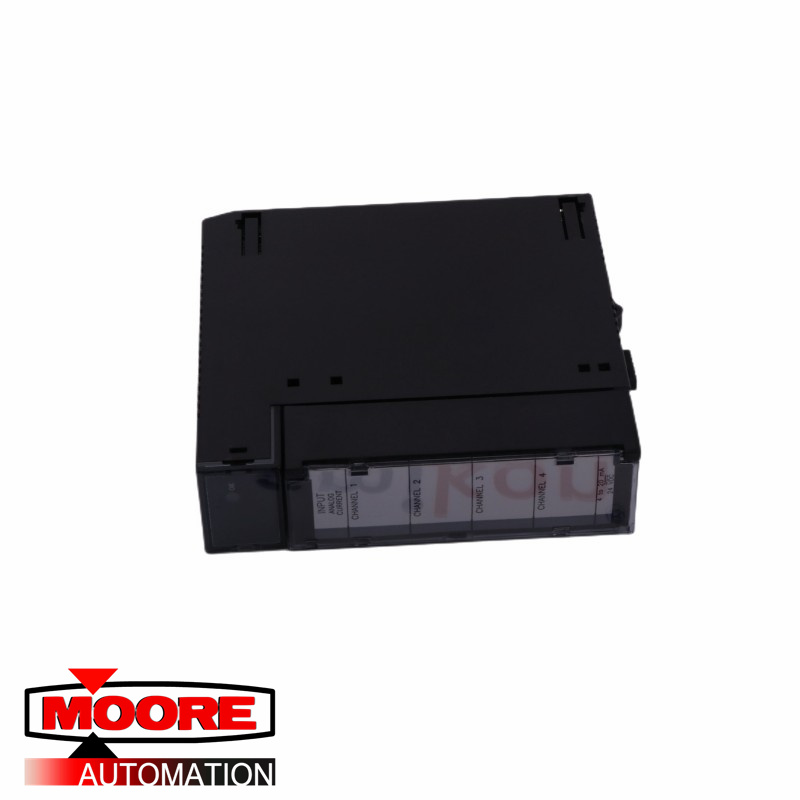

IC693ALG221
General Electric Analog Input, Current, 4 Channels
-------------------------------------------------------------
|
Origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Shipment
|
From Xiamen, China to Worldwide
|
|
Year of Production
|
2020-2022 available
|
-------------------------------------------------------------
Description:
The 4-Channel Analog Current Input module for the Series 90-30 Programmable Logic
Controller provides four input channels, each capable of converting an analog input signal to a
digital signal for use as required by your application. This module provides two input ranges.
The default range is 4 to 20 mA with user data scaled so that 4 mA corresponds to a count of 0
and 20 mA corresponds to a count of 32000 with each 1000 counts representing 0.5 mA. When
a jumper is added to the I/O terminal board, the input range is changed to 0 to 20 mA with user
data scaled so that 0 mA corresponds to a count of 0 and 20 mA corresponds to a count of
32000 with each 800 counts representing 0.5 mA. Two range jumpers are provided with the
module; one for channels one and two, and the other for channels three and four.
Conversion speed for each of the four channels is one-half millisecond. This provides an
update rate of two milliseconds for any channel. Resolution of the converted signal is 12 bits
binary (1 part in 4096) over either range. User data in the %AI registers is in 16-bit 2’s
complement format.
