Product Description:

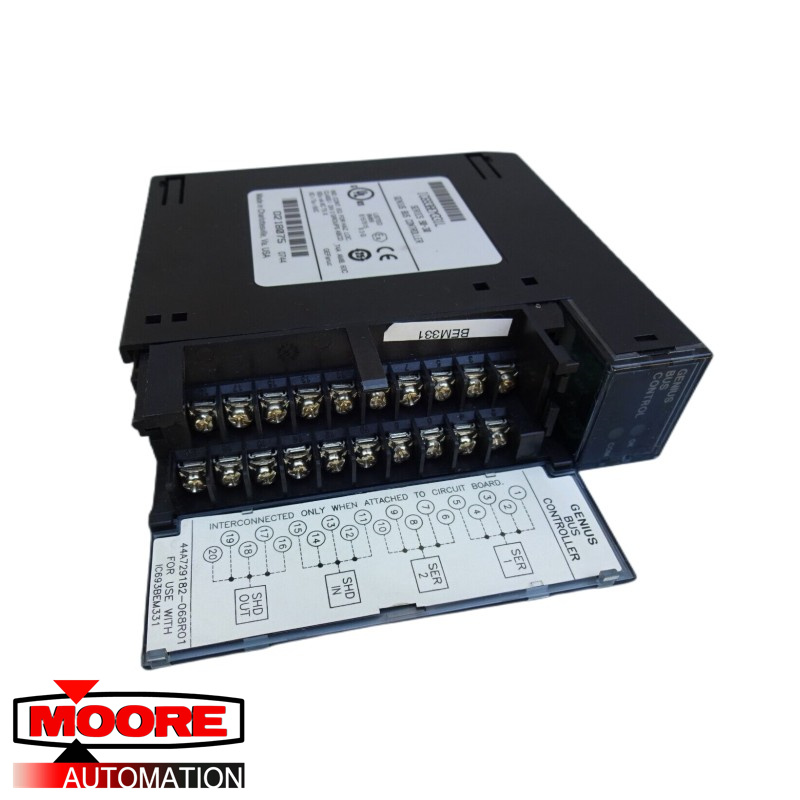

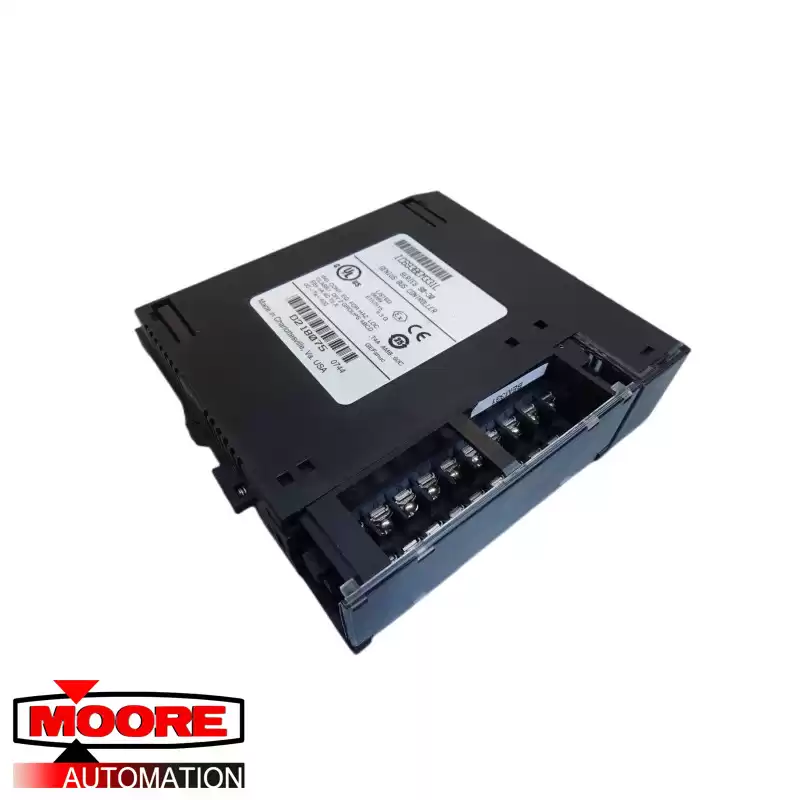

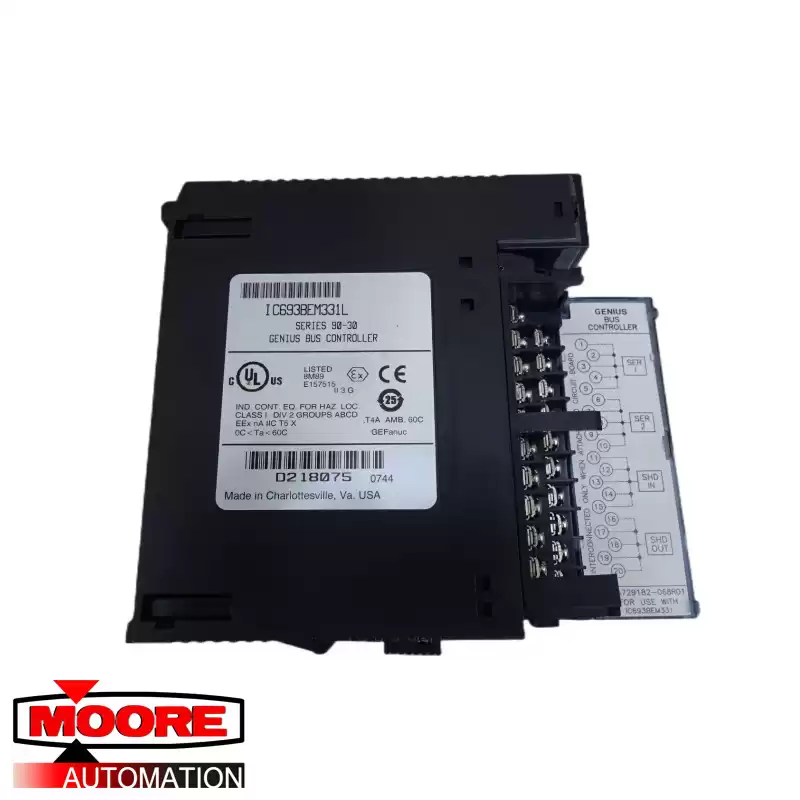

The Series 90-30 Genius Bus Controller (GBC), catalog number IC693BEM331, provides the
interface between a Series 90-30 PLC and a Genius I/O serial bus. The GBC receives and
transmits control data of up to 128 bytes for up to 31 devices on the Genius I/O bus. A Genius Bus
Controller can serve:
Genius blocks, which provide an interface to a wide range of discrete, analog, and specialpurpose field devices. Note that the GCM and GCM+ modules, described earlier, cannot
control Genius blocks.
Remote Drops, which consist of Series 90-70 I/O racks interfaced to the bus through Remote
I/O Scanner modules. Each of these drops can have any mix of Series 90-70 discrete and
analog I/O modules, providing up to 128 bytes of input data and 128 bytes of output data.
Field Control I/O Station, which consists of a Bus Interface Unit (BIU) and up to eight
additional Field Control modules. The BIU provides intelligent processing, I/O scanning, and
feature configuration for the I/O station.
provides a convenient operator interface for block setup, data monitoring,
and diagnostics.
Multiple hosts, for communications using datagrams and Global Data.
