Dimensions:3.6x13x13.5cm
|
Product Package：Original Package
|
|
Weight:0.4kg
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Part Number：IC693MDL340
|
Rated Voltage：120VAC
|
|

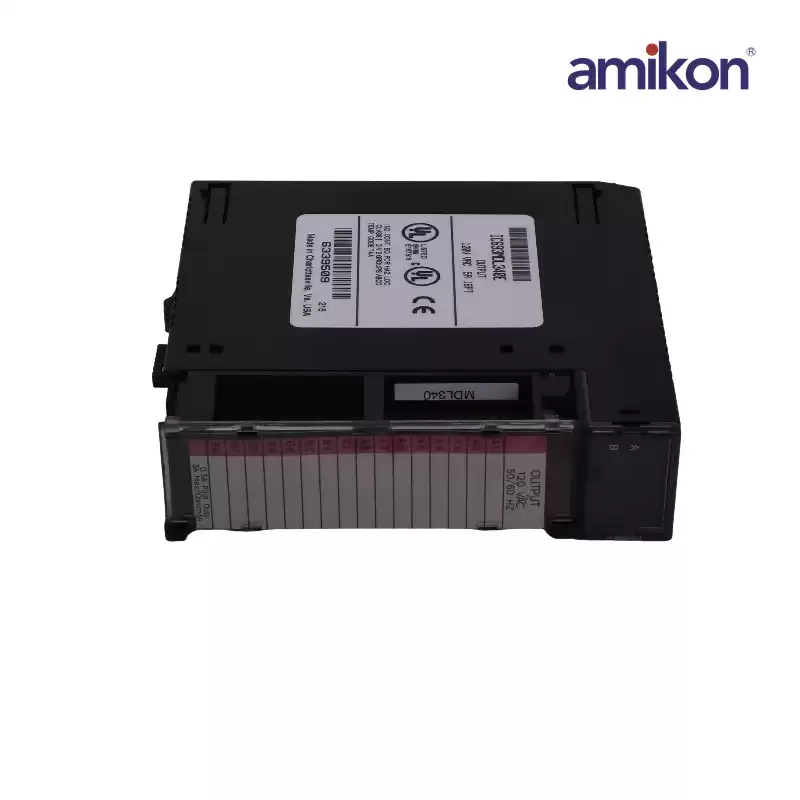

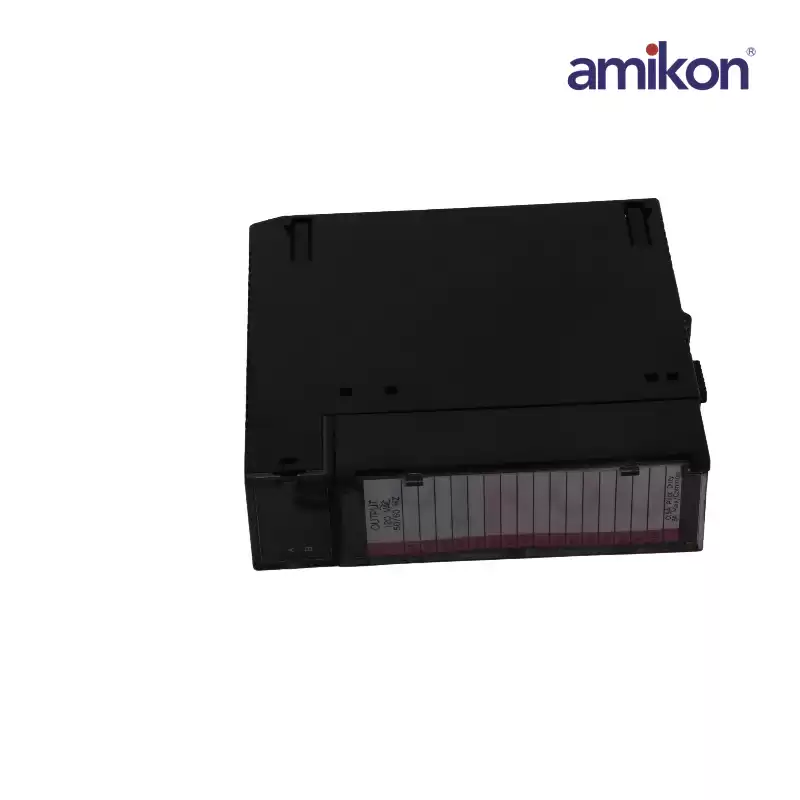

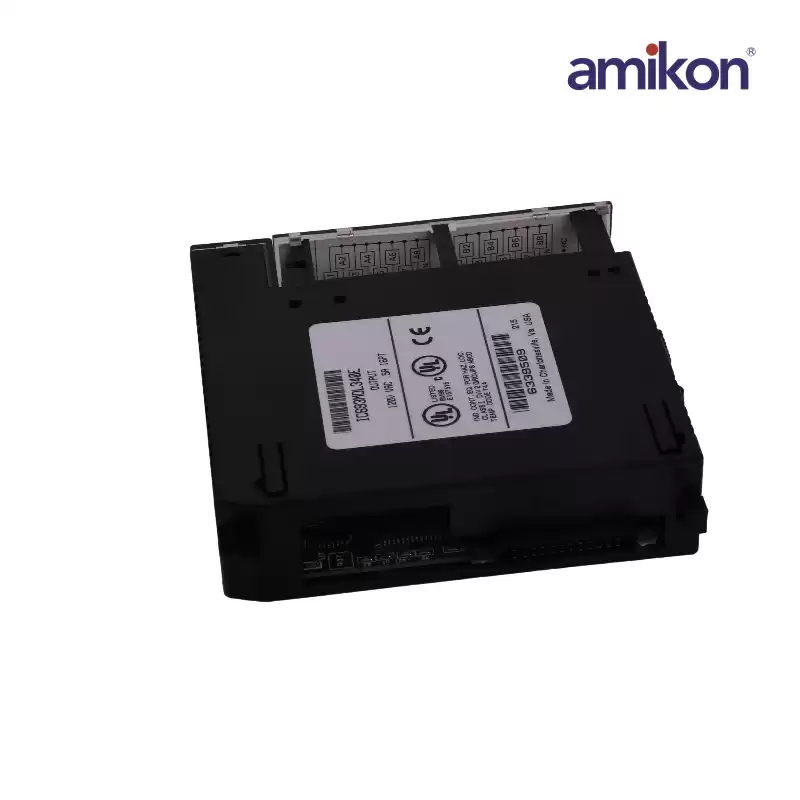

The GE Fanuc IC693MDL340 module is an output module manufactured as part of the GE Intelligent Platforms/GE Fanuc Series 90-30 product line. It has a 120 Volts AC voltage rating and 0.5 Amps of current rating and it provides 16 output points in 2 separate groups, and each group has 8 points. Each of the 2 groups features a commons that is connected with it. However, the 2 commons are not connected into the IC693MDL340 module, and this allows each group to be used with an independent phase of the AC power supply. Both commons can also be powered using the same supply. Each group has a 3-Amps fuse for protection, as well as an RC snubber for the outputs for protecting them against the power line transient electrical noise.
|
