Dimensions:3.5x13x13.5cm
|
Product Package：Original Package
|
|
Weight:0.24kg
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Part Number：IC693MDL655
|
Input Voltage Range: 0 to 30 volts DC
|
|

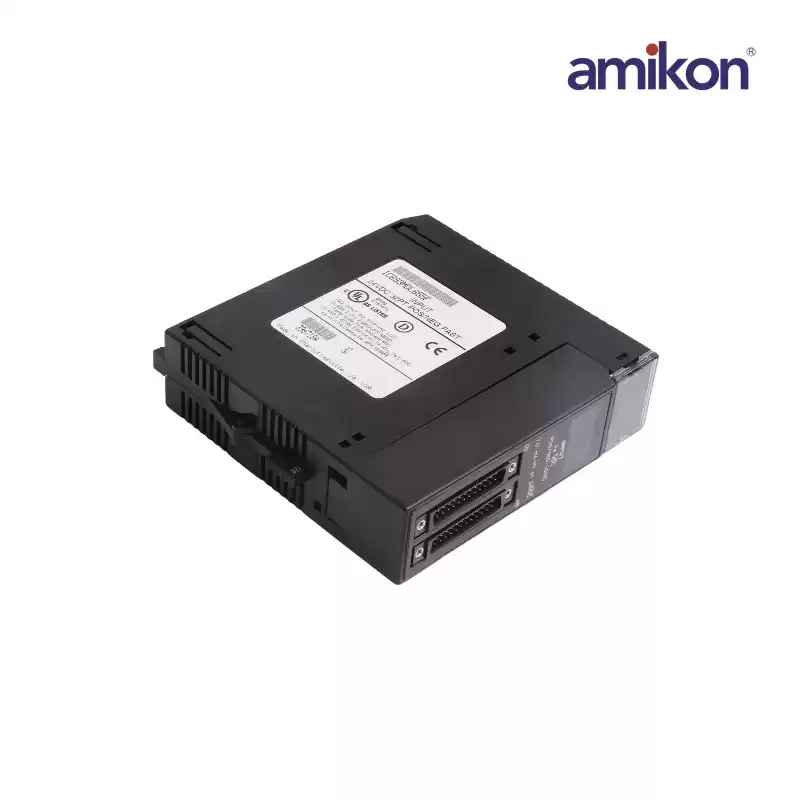

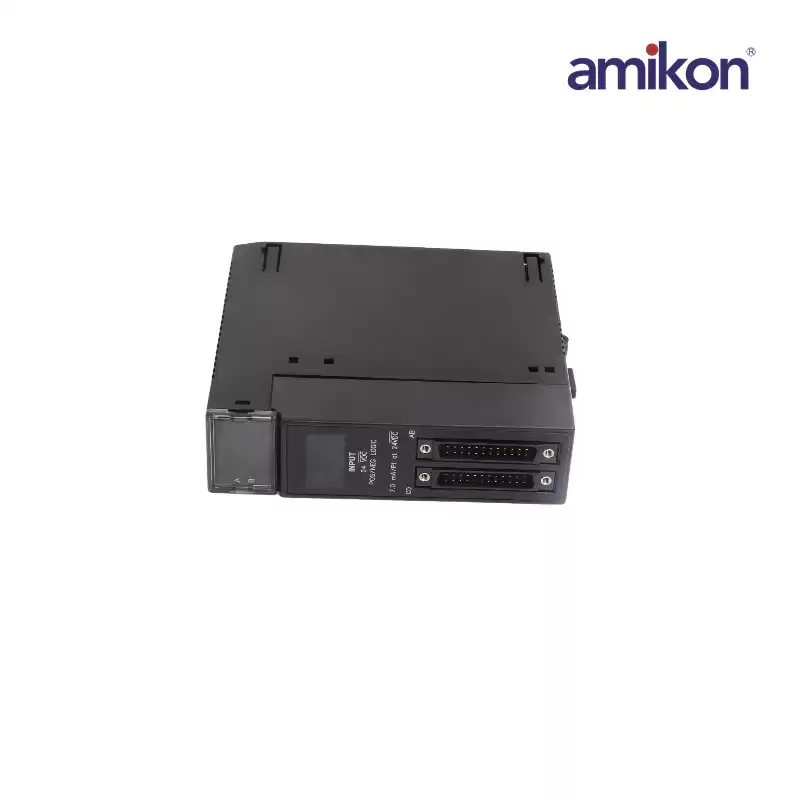

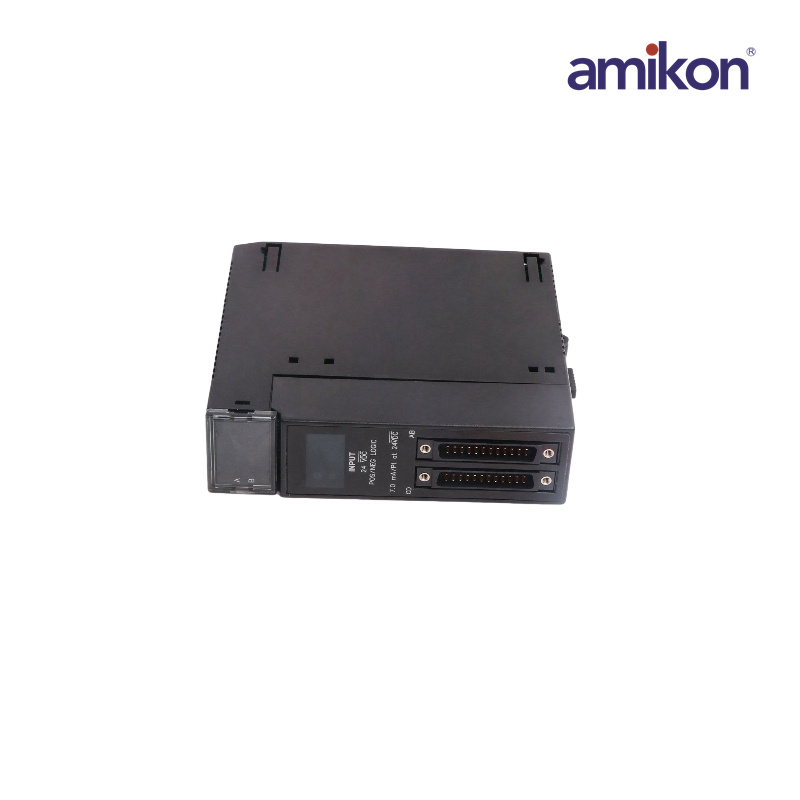

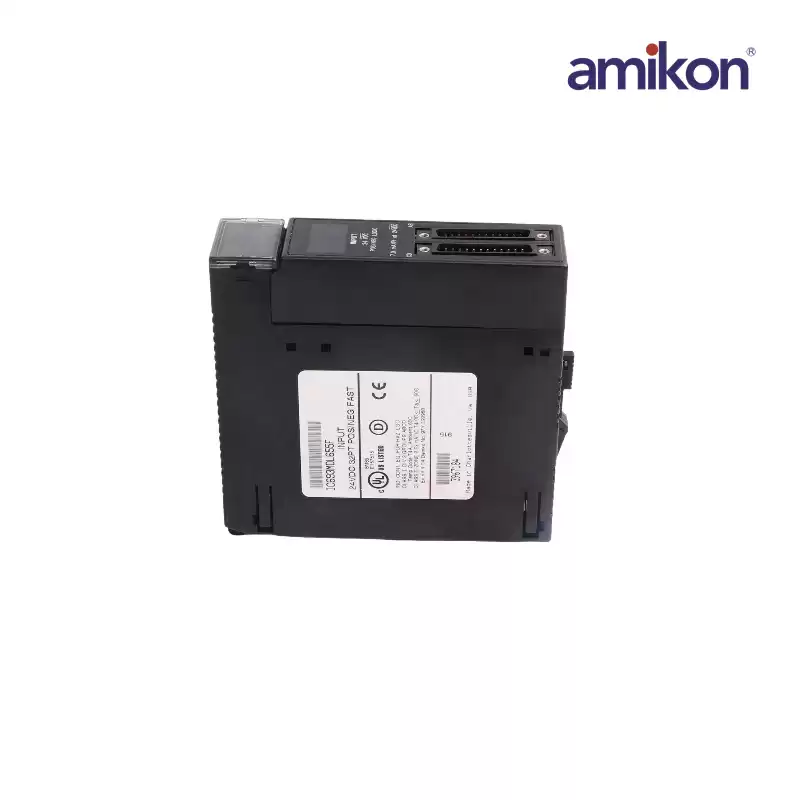

GE Fanuc Positive/negative discrete input module for 90 - 30 series PLC offers 32 discrete input points that are arranged in four isolated groups of eight. It has LED indicators at the top to offer ON/OFF status of each point. Module uses 32 bits of discrete input data. Module can be conveniently installed in any I/O slot of a 5 or 10-slot baseplate in a 90-30 series PLC system. Module connectors are connected to the field devices through a cable having a mating female connector on one end and stripped/tinned wires on the other end. It has a voltage rating of 0 - 30 VDC, current rating of 7 milli-Amps and a power rating of 195 milli-Amps at 5 VDC. Module has a maximum ON/OFF response time of 2 milli-seconds. Input/output module provides the interface between the PLC and external input devices such as proximity sensors, push buttons, switches and BCD thumbwheels. It supports different voltage ranges, types, current capacity, isolation and response time to meet your application.
|
